Description

The Emerson Ovation 1C31227G01 is a high-performance communication gateway module for Emerson’s Ovation DCS (originally Westinghouse technology), serving as a critical protocol translator between Ovation controllers and third-party systems. This industrial-grade gateway enables seamless data exchange with devices using Modbus TCP, DNP3.0, IEC 60870-5-104, and IEC 61850 protocols, essential for integrating turbines, protection relays, and smart grid equipment into unified control architectures. The 1C31227G01 operates as a secure data concentrator, processing up to 10,000 I/O points with deterministic latency below 50ms. Its dual-redundant design ensures continuous operation in power generation, substation automation, and water management systems.

Featuring embedded cybersecurity compliant with IEC 62443, the module includes role-based access control, firmware signing, and encrypted communications. The Emerson Ovation 1C31227G01 supports hot-swap replacement and integrates with Ovation’s asset management tools for predictive maintenance. Its compact form factor fits standard Ovation racks (compatible with baseplate 1C31224G01), reducing cabinet space while enabling legacy plant modernization without control system replacement.

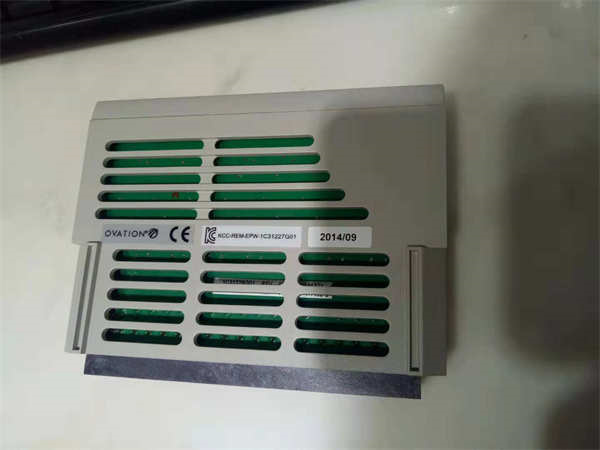

WESTINGHOUSE 1C31227G01

Technical Specifications

Main Features and Advantages

Multi-Protocol Integration: The Emerson Ovation 1C31227G01 concurrently translates four industry protocols, eliminating separate gateways for SCADA, protection relays, and turbine controllers. Deterministic Performance: Hardware-accelerated protocol stacks ensure sub-50ms data refresh even during grid disturbance recording. Cybersecurity by Design: Embedded firewall, authenticated firmware updates, and event logging meet NERC CIP requirements for critical infrastructure.

Dual Ethernet ports support segregated plant/control networks with VLAN tagging. The module’s “protocol snooping” feature passively captures network traffic for diagnostics without disrupting operations. Non-volatile memory retains configuration during power loss. Tool-free mounting simplifies installation in existing Ovation racks.

Application Field

The Emerson Ovation 1C31227G01 is deployed in power plants for real-time turbine-generator data integration (e.g., GE Mark VIe to Ovation). In substations, it bridges IEC 61850-compliant protection relays (SEL, ABB) to DCS for grid stability monitoring. Water utilities use it to connect PLC-based pumping stations via DNP3.0 to central SCADA.

For renewable energy, the module integrates solar inverters (Modbus TCP) and wind farm controllers into Ovation power management systems. In oil refineries, it interfaces with safety instrumented systems (SIS) using Modbus secure. The 1C31227G01’s wide temperature range suits unmanned offshore platforms and desert solar farms.

Related Products

1C31224G01: I/O baseplate for module mounting

1C31129G01: Ovation controller processor

5X00120G01: Fiber-optic SFP module

1C31203G01: Redundant power supply

Ovation CIOM: Compact gateway for remote sites

1C31227G02: Enhanced version with OPC UA support

5X00070G01: Legacy WDPF-to-Ovation migration kit

WESTINGHOUSE 1C31227G01

Installation and Maintenance

Pre-installation preparation: Verify rack compatibility (requires 1C31224G01 baseplate). Pre-configure protocol mappings in Ovation Developer Studio. Disable port security on connected switches temporarily. Ensure firmware matches controller version.

Maintenance recommendations: Monitor communication latency via Ovation Diagnostics. Annual preventive maintenance should include connector inspection and firmware updates using Emerson’s secure USB tools. Replace redundant modules sequentially during planned outages. Store configuration backups on write-protected media.
