Description

The WESTINGHOUSE 1C31234G01 is a high-reliability analog input module designed for mission-critical distributed control systems (DCS), particularly within power generation and industrial process environments. As part of Westinghouse’s Ovation® platform, this 16-channel module delivers precision signal conditioning for thermocouples, RTDs, millivolt, and current/voltage inputs, enabling real-time monitoring of temperature, pressure, flow, and other process variables. Engineered for harsh industrial environments, the 1C31234G01 features galvanic isolation (>1500V AC) between channels and field-side circuits, preventing ground loops and ensuring signal integrity amid electrical noise. Its hot-swappable design allows maintenance without system shutdowns – a critical feature for continuous operations.

Compatible with Ovation controllers, this module supports HART® 7 protocol for bidirectional communication with smart field devices, facilitating advanced diagnostics and configuration. The WESTINGHOUSE 1C31234G01 meets stringent nuclear safety standards (IEEE 323/344) and is certified for SIL 3 applications, making it indispensable for safety-instrumented systems. With built-in signal linearization and cold-junction compensation, it maintains ±0.1% accuracy across its full operating range. The module’s ruggedized construction withstands temperature extremes, vibration, and EMI/RFI interference common in turbine halls and substations. For operators requiring uncompromising data acquisition, the 1C31234G01 provides deterministic performance with 10ms per-channel scan rates.

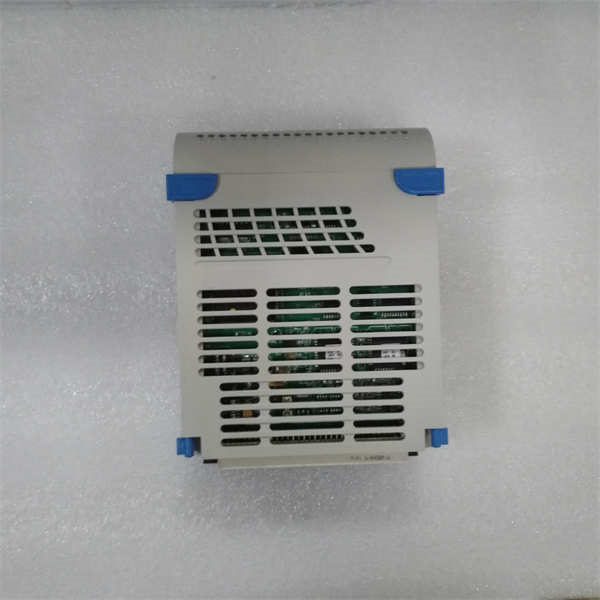

WESTINGHOUSE 1C31234G01

Technical Specifications

Main Features and Advantages

Channel-Level Isolation: The WESTINGHOUSE 1C31234G01 provides individual channel isolation (1500V AC), eliminating cross-talk and enabling mixed signal types on a single module – critical for complex process units where space constraints exist. Each channel features independent A/D conversion with 16-bit resolution, ensuring precise data capture even with low-level signals from thermocouples.

HART Integration: Native HART 7 protocol support allows the module to communicate with smart transmitters without external hardware. Users can remotely calibrate, troubleshoot, and configure field devices directly through the Ovation control system, reducing manual interventions in hazardous areas.

Extreme Environment Resilience: With conformal-coated PCBs and stainless steel terminal blocks, the 1C31234G01 operates reliably in high-humidity (5-95% non-condensing) and high-vibration (5g @ 10-500Hz) environments. Its -20°C cold-start capability ensures availability in arctic installations.

Safety Compliance: As a SIL 3-certified device, the module includes hardware fault diagnostics (open wire detection, out-of-range alerts) and meets IEEE 323 seismic requirements for nuclear applications. Redundant power inputs and fail-safe firmware make the WESTINGHOUSE 1C31234G01 ideal for safety shutdown systems.

Application Field

The WESTINGHOUSE 1C31234G01 is deployed in critical infrastructure requiring high-density analog monitoring with zero tolerance for signal loss. In combined-cycle power plants, it acquires turbine exhaust temperatures (T/C inputs), generator winding temperatures (RTDs), and lube oil pressures (4-20mA) with SIL 3 integrity. Nuclear facilities utilize its EMI-hardened design for reactor coolant loop monitoring, where radiation-resistant construction prevents signal drift.

For chemical processing, the module’s HART capabilities enable predictive maintenance on corrosion-monitoring instruments in distillation columns. In hydroelectric plants, it withstands switchgear room vibrations while tracking bearing temperatures and stator cooling flows. The 1C31234G01 also supports emissions control systems in coal-fired plants, acquiring CEMS (Continuous Emissions Monitoring) data for NOx/SO2 analyzers with 0.1% accuracy for regulatory compliance. Water treatment facilities leverage its mixed-signal flexibility to consolidate pH (mV), tank levels (4-20mA), and chlorine residual (RTD) measurements on one module.

Related Products

1C31197G02: Ovation controller for processing 1C31234G01 inputs

1C31227G01: 32-point digital input module

1C31203G01: Analog output module (complements input functions)

1C31234G02: Enhanced version with wider -40°C to +85°C range

5X00170G01: Redundant power supply for critical 1C31234G01 racks

3A00197G01: Ovation communication gateway

1C31164G01: Profibus DP interface module

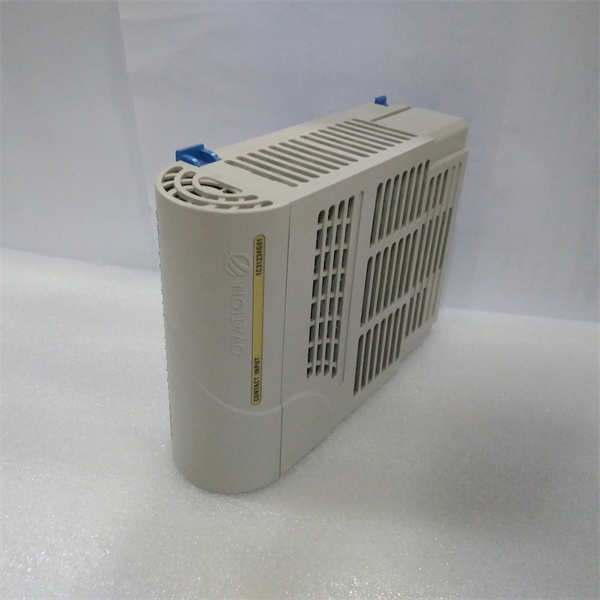

WESTINGHOUSE 1C31234G01

Installation and Maintenance

Pre-installation preparation: Verify rack compatibility (Ovation Series A/B/C) and reserve contiguous slots for redundancy groups. Discharge static electricity before handling the WESTINGHOUSE 1C31234G01. Use shielded, twisted-pair cables (AWG 16-22) with separate conduits for AC/DC signals. Confirm firmware version matches controller requirements.

Maintenance recommendations: Perform annual calibration verification using precision simulators. Clean air filters quarterly in dusty environments. Monitor channel diagnostics via Ovation Workbench for abnormal drift. Replace modules after 15 years of service or if SIL recertification fails. Always maintain a spare 1C31234G01 configured with identical jumpers.
