Description

The ABB 3BHE009681R0101 GVC750BE101 3BHB013085R0001 5SHY3545L0009 represents a fully integrated Gate-Controlled Thyristor (GCT) power stack for ABB’s ACS6000 medium-voltage drive systems. This high-power assembly combines the GVC750BE101 gate driver unit with the 5SHY3545L0009 4.5kV Integrated Gate-Commutated Thyristor (IGCT) semiconductor, delivering up to 7MVA output for heavy industrial applications. Engineered for demanding torque control in metals processing and mining, this redundant power module features liquid-cooled press-pack technology with <2>

As the core switching element in ABB’s modular drive architecture, the 3BHE009681R0101 assembly includes built-in dv/dt filters and active voltage clamping to prevent semiconductor stress during grid disturbances. Its fiber-optic isolated gate drive ensures noise-immune operation in electromagnetically harsh environments like arc furnace installations. The integrated 3BHB013085R0001 interface board provides real-time thermal monitoring and fault diagnostics through DriveWindow software, while redundant gate units maintain operation during single-point failures. With a 50-year design life at full load cycles, this power stack delivers unmatched reliability for critical processes where unplanned downtime costs exceed $1M/hour.

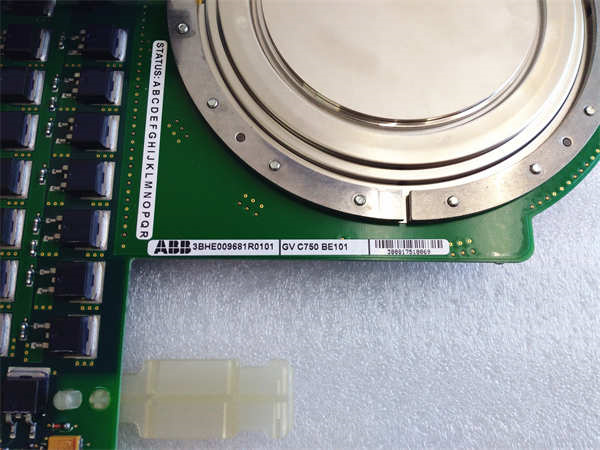

ABB 3BHE009681R0101 GVC750BE101 3BHB013085R0001 5SHY3545L0009

Technical Specifications

Main Features and Advantages

Ultra-Fast Switching: The 5SHY3545L0009 IGCT achieves <3>GVC750BE101 driver’s 15kV/µs immunity, this enables clean PWM waveforms for harmonic-sensitive applications.

Predictive Maintenance Capability: Integrated fiber Bragg grating sensors in the 3BHB013085R0001 interface monitor junction temperature gradients within ±1.5°C accuracy, enabling AI-based wear-out prediction through ABB Ability™ analytics.

Fault-Tolerant Operation: Dual-redundant gate drivers with cross-monitoring maintain output during single-driver failure. The press-pack design allows continued operation with up to 5% failed chips through current redistribution.

Heavy-Duty Construction: Gold-plated copper busbars and spring-loaded pressure contacts withstand 100,000 thermal cycles. The hermetic ceramic-metal housing prevents coolant contamination in humid environments.

Application Field

The ABB 5SHY3545L0009 power stack dominates high-torque applications requiring megawatt-scale control. In steel rolling mills, it drives 10,000HP synchronous motors for reversing stands with <0>

For marine propulsion, the assembly’s compact power density enables 20MW+ azimuth thrusters with IGBT-like switching precision. Mining conveyors benefit from its regenerative braking capability during downhill ore transport, recovering up to 35% energy. Petrochemical compressors leverage the 3BHE009681R0101‘s SIL 2 safety certification for critical anti-surge controls. The stack also powers test benches for wind turbine generators, simulating grid faults with sub-cycle response times.

Related Products

5SHY5045L0004: 5.2kV IGCT for higher voltage applications

3BHE039203R0101: Liquid cooling unit for 5SHY3545L0009 stacks

GVC750CE101: Enhanced gate driver with HVDC support

5SDF0860H0003: Clamping circuit module

3BHB007209R0001: Fiber-optic receiver board

ACS6000 Control Unit: Master controller for multiple stacks

5SXE08-0181: Replacement water manifold kit

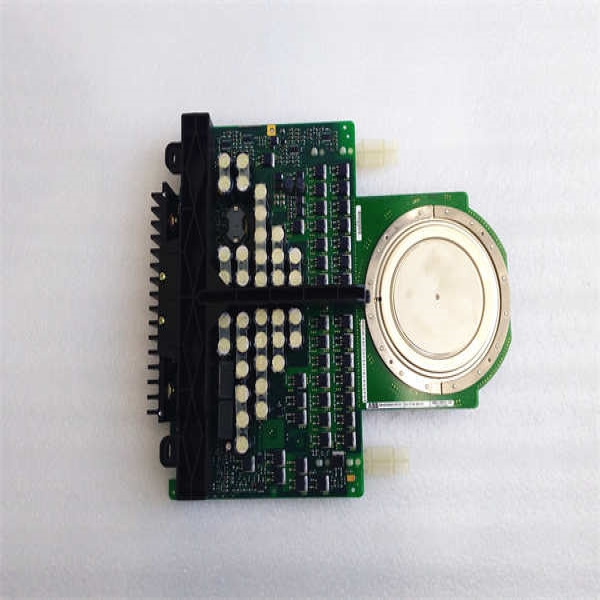

ABB 3BHE009681R0101 GVC750BE101 3BHB013085R0001 5SHY3545L0009

Installation and Maintenance

Pre-installation preparation: Verify cooling water resistivity >1MΩ-cm and flow rate >25L/min per stack. Pre-charge DC bus capacitors through ABB’s charging unit before energizing. Calibrate fiber-optic receivers using DTCE tool.

Maintenance recommendations: Quarterly water quality analysis (pH 6.5-8.0). Annual thermal imaging of bus joints. Replace gate driver capacitors at 50,000 operating hours. After 10 years, perform pressure contact force verification with 800N±5% tolerance.
