Description

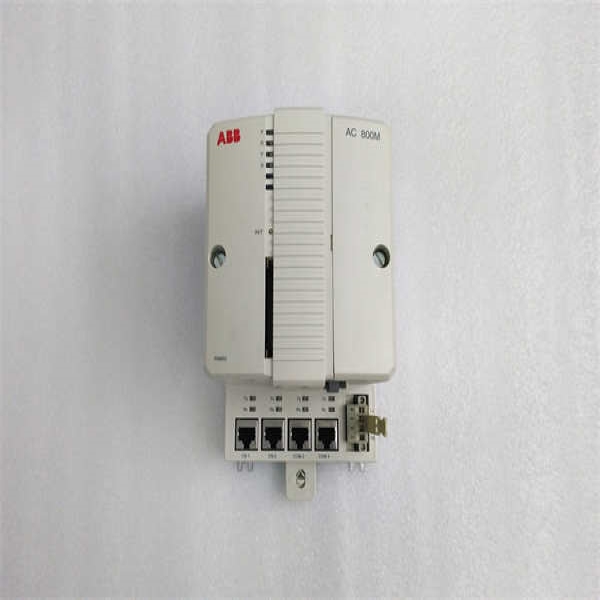

The ABB 3BSE018100R1 PM860K01 is a high-performance processor module designed for ABB’s AC 800M controller family, serving as the computational core for complex automation and safety systems. Engineered for mission-critical applications, this SIL 2-certified (IEC 61508) controller delivers deterministic execution of control logic with 1ms cycle times, supporting up to 32,000 I/O points per unit. The PM860K01 integrates dual-core processing power with 2GB RAM and industrial-grade flash storage, enabling advanced process optimization through embedded OPC UA server functionality and native support for IEC 61131-3 languages.

As part of ABB’s 800xA Extended Automation System, this module features redundant Ethernet interfaces (PROFINET IRT, EtherNet/IP) with <500>ABB 3BSE018100R1 uniquely combines process control and safety functionality in a single platform, reducing system complexity while achieving PFDavg < 10>PM860K01 ensures continuous operation in power generation, oil & gas, and pharmaceutical applications where uninterrupted control is paramount.

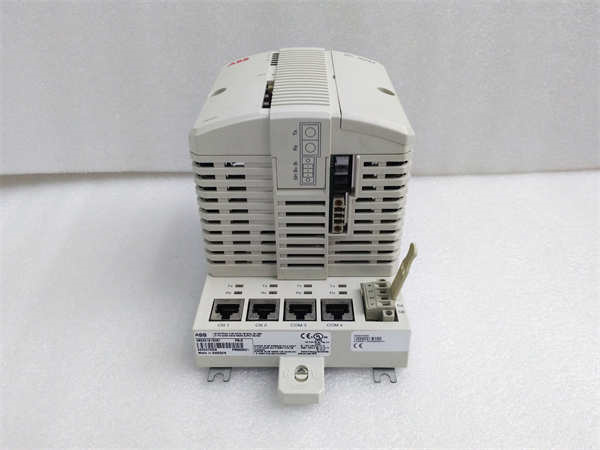

ABB 3BSE018100R1 PM860K01

Technical Specifications

Main Features and Advantages

Deterministic Performance: The PM860K01 executes complex PID loops and sequence control with 1ms precision using hardware-triggered task scheduling, critical for high-speed manufacturing and turbine control.

Integrated Safety: Combines standard control and SIL 2 safety functions in one platform, reducing hardware footprint while maintaining <10ns>

Cybersecurity Hardened: Features secure boot with cryptographic signature verification, role-based access control (RBAC), and encrypted communications meeting ISA/IEC 62443 standards.

Advanced Diagnostics: Real-time health monitoring tracks CPU load (0.1% resolution), memory usage, and network latency with predictive failure alerts via OPC UA Pub/Sub.

Application Field

The ABB PM860K01 excels in industries requiring uncompromising control reliability:

Power Generation: Governs turbine sequencing and grid synchronization in combined-cycle plants with <2ms>

Pharmaceutical: Ensures FDA 21 CFR Part 11 compliance for batch processes with electronic signatures and audit trails

Oil & Gas: Manages safety instrumented functions (SIF) for offshore platforms with Class I Div 2/ATEX certification

Water Treatment: Controls pumping stations with predictive surge prevention algorithms using integrated ML capabilities

Minerals Processing: Synchronizes grinding mill drives and conveyor systems with torque coordination logic

ABB 3BSE018100R1 PM860K01

Related Products

PM864AK01: Enhanced CPU with quad-core processor

CI871: PROFIBUS communication interface

SD822: System diagnostics module

TA527: Termination assembly for I/O modules

S800 I/O Series: Fieldbus modules for PM860K01 integration

3BSE018100R2: Hardware revision with extended memory

Combi Controller: Integrated safety solution for PM860K01

Installation and Maintenance

Pre-installation preparation: Verify rack compatibility (S800 or 800xA) and ensure 24VDC power stabilization (±0.5%). Install ABB-recommended heat sinks for ambient temperatures >60°C. Pre-load configuration via Control Builder M software.

Maintenance recommendations: Perform monthly firmware checksum validation. Clean air filters quarterly in dusty environments. Replace backup batteries every 5 years. Conduct full redundancy switchover tests annually.
