Description

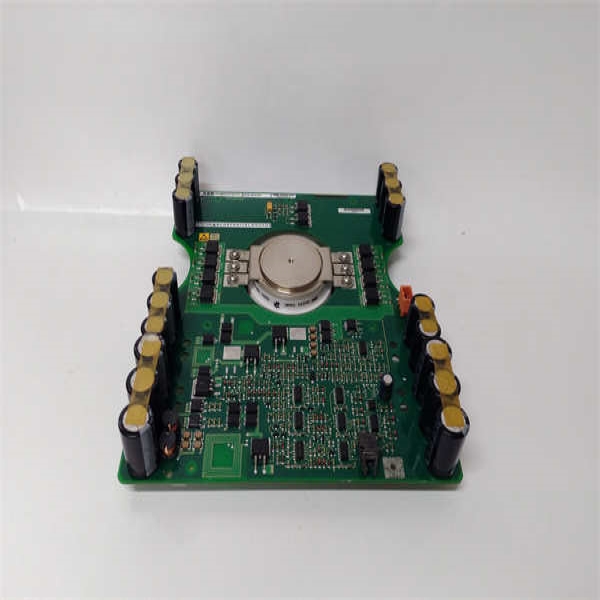

The ABB 5SHX06F6004 is an advanced Insulated Gate-Commutated Thyristor (IGCT) power semiconductor device engineered for ultra-high-power conversion in demanding industrial and energy applications. As a core component of ABB’s 5SXE series, this 6 kA/6 kV asymmetric IGCT delivers exceptional switching performance and ruggedness in voltage-source converters (VSCs) and neutral-point-clamped (NPC) inverters. The 5SHX06F6004 integrates a monolithic silicon wafer with optimized gate-driver technology, enabling direct control of thousands of amperes with minimal switching losses. Its press-pack housing ensures efficient double-sided cooling and mechanical stability under high short-circuit stresses, making it indispensable for multi-megawatt drives and HVDC transmission systems where reliability directly impacts grid stability and operational economics.

Designed for seamless integration with ABB’s 5SXE05-0151 gate unit and 3BHB003387R0101 control electronics, the ABB 5SHX06F6004 achieves industry-leading di/dt ratings (up to 6 kA/µs) and precise turn-off characteristics. Its asymmetric voltage blocking capability (6 kV forward / ≤ 22 V reverse) optimizes efficiency in diode-clamped topologies. The IGCT’s low thermal impedance and integrated snubber capacitors simplify system design while reducing footprint. As part of ABB’s power electronics ecosystem, the 5SHX06F6004 enables fault-tolerant operation in mission-critical infrastructure, from steel mill main drives to renewable energy grid interconnections.

Technical Specifications

Main Features and Advantages

Ultra-High Power Density: The ABB 5SHX06F6004 handles 6 kA/6 kV switching in a compact press-pack format, enabling power converters exceeding 100 MW capacity. Its monolithic silicon design eliminates bond wires, enhancing thermal cycling robustness and extending service life in high-vibration environments like mining draglines or ship propulsion.

Low-Loss Switching: Optimized gate-drive integration (via 5SXE05-0151) ensures snubberless operation with turn-off losses ≤ 25% lower than comparable GTOs. This reduces cooling requirements and boosts system efficiency by up to 0.5% in multi-level inverters – critical for energy-intensive processes.

Fail-Safe Ruggedness: Engineered for short-circuit withstand capability (SCSOA), the 5SHX06F6004 tolerates 10 ms fault currents at 9 kA without derating. Its hermetic press-pack construction prevents humidity ingress and maintains contact pressure during thermal shocks, minimizing field failures in harsh coastal or desert installations.

System Integration: Precisely matched to ABB’s 3BHB003387R0101 driver boards and 3BHB003151P104 power supplies, the IGCT achieves plug-and-play commissioning. Real-time diagnostics monitor junction temperature and di/dt performance, enabling predictive maintenance. Backward compatibility with ABB’s 5SHY series simplifies retrofits.

Application Field

The ABB 5SHX06F6004 dominates ultra-high-power conversion scenarios demanding efficiency and resilience. In HVDC transmission, it forms valve towers converting gigawatts of renewable energy (offshore wind, solar farms) for long-distance grid injection with < 1>5SHX06F6004 for control of 20+ MW synchronous motors in compressors (LNG liquefaction), rolling mills (steel), and conveyor systems (mining), where its di/dt stability prevents torque jitter.

Marine propulsion systems rely on the ABB 5SHX06F6004 in Azipod® thrusters for icebreakers and cruise ships, where space-constrained nacelles benefit from its compactness. In traction power, it energizes 25 kV railway substations and mining trucks with regenerative braking. The IGCT also anchors STATCOMs for voltage stabilization in weak grids and dynamic VAR compensation for arc furnaces – solving harmonics and flicker challenges.

Related Products

5SXE05-0151: Dedicated gate unit providing 5 kV isolation and 5000 A/µs gate current for 5SHX06F6004 switching.

3BHB003387R0101: Control unit for IGCT driver stage, managing firing pulses and diagnostics.

3BHB003151P104: 24V DC power supply module for gate driver electronics.

5SHY3545L0006: 4.5 kV/4 kA symmetric IGCT for current-source inverters.

5STP03D6000: 6 kV diode clamp module for NPC stacks.

5SDF2565H0001: Water-cooled heatsink optimized for 5SHX06F6004 thermal management.

5SXE08-0167: Fiber-optic interface kit for IGCT control signal transmission.

5SHY4045L0002: 4.5 kV/4 kA asymmetric IGCT for medium-voltage drives.

Installation and Maintenance

Pre-installation preparation: Verify coolant purity (deionized water conductivity < 0>5SHX06F6004 housing. Pre-test gate units (5SXE05-0151) with ABB’s TPG10 test set to validate trigger thresholds. Ensure 3BHB003151P104 power supplies deliver stable 24V ±1% under load.

Maintenance recommendations: Monitor cooling loop pressure drop monthly; a 15% increase indicates fouling. Annually measure on-state voltage drop (VTM) at 1000 A to detect silicon degradation. Replace gate driver capacitors (3BHB003387R0101) every 5 years. Use IR thermography during operation to identify abnormal thermal gradients (>5°C between segments requires investigation). Maintain spare 5SHX06F6004 modules in anti-static packaging at 25°C/40% RH.
