Product Introduction

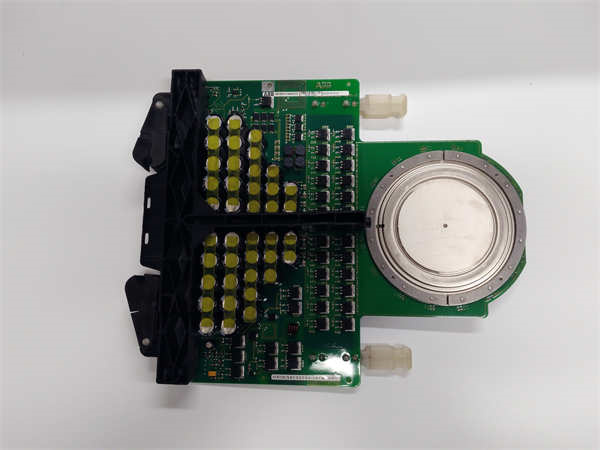

The ABB 5SHX2645L0004 3BHB003154R0101 5SXE03-0141 3BHB003149P104 is a high-performance thyristor-based power module assembly designed for industrial and traction applications requiring reliable and efficient power conversion. This module is part of ABB’s advanced power electronics family and is commonly used in medium to high-power AC/DC converters, motor drives, and traction systems.

This integrated power module includes:

• 5SHX2645L0004: A 4500V/2000A thyristor stack for high-power switching applications.
• 3BHB003154R0101: Heat sink for efficient thermal management.
• 5SXE03-0141: Gate drive unit ensuring precise and stable triggering of thyristors.
• 3BHB003149P104: Mechanical housing and mounting frame for structural integrity and ease of installation.

The ABB 5SHX2645L0004 3BHB003154R0101 5SXE03-0141 3BHB003149P104 is engineered for high reliability, low switching losses, and long service life. It is ideal for use in industrial motor drives, electric traction systems, renewable energy inverters, and high-power rectifiers.

ABB 5SHX2645L0004 3BHB003154R0101 5SXE03-0141 3BHB003149P104

Core Advantages and Technical Highlights

High Power Handling: Rated at 4500V and 2000A, this module is suitable for demanding industrial and transportation applications where high current and voltage switching are required.

Integrated Module Design: Combines thyristor stacks, gate drive electronics, thermal management, and mechanical housing into a single unit, ensuring compatibility and reducing system integration complexity.

Advanced Thermal Management: The 3BHB003154R0101 heat sink and 3BHB003149P104 housing provide optimal heat dissipation, supporting reliable operation in high-temperature environments. Supports both air-cooled and water-cooled configurations.

Precise Gate Control: The 5SXE03-0141 gate drive unit ensures accurate triggering of the thyristor stack, with built-in protection against overvoltage, overcurrent, and short circuits.

Robust Industrial Construction: Designed to withstand mechanical vibrations, electrical stress, and extreme temperatures, ensuring long service life and minimal maintenance.

Global Compliance and Safety: Certified under international standards such as IEC 60747, CE, UL, and RoHS, meeting the highest levels of performance, safety, and environmental compliance.

Typical Application Scenarios

The ABB 5SHX2645L0004 3BHB003154R0101 5SXE03-0141 3BHB003149P104 is widely used in a variety of high-power industrial and transportation systems:

Traction Systems: Used in electric locomotives, subways, and tramways as part of traction converters for propulsion control.

Industrial Motor Drives: Integrated into large variable-speed drives for pumps, compressors, and rolling mills to enable efficient and precise control of motor speed and torque.

Renewable Energy Systems: Applied in wind turbine converters and solar inverters for efficient power conversion and grid integration.

Electric Arc Furnaces and Electrolysis Plants: Provides high-current switching for industrial processes requiring precise control of high-power electrical loads.

Power Grid Infrastructure: Used in high-voltage direct current (HVDC) systems and static VAR compensators for power quality and stability management.

Related Model Recommendations

• ABB 5SHX2645L0006: Higher current variant (up to 3000A) for more demanding applications.
• ABB 3BHB003155R0101: Enhanced heat sink option for improved thermal performance.
• ABB 5SXE03-0142: Advanced gate drive unit with extended diagnostics and protection features.
• ABB 3BHB003150P104: Alternative housing module with improved vibration resistance and thermal insulation.
• ABB ACS800-11: Medium-voltage drive system often used with this power module for industrial applications.
• ABB PCM400: Power converter module used in modular and scalable power conversion systems.

ABB 5SHX2645L0004 3BHB003154R0101 5SXE03-0141 3BHB003149P104

Installation, Commissioning, and Maintenance Instructions

Installation:

• Ensure the installation environment is clean, dry, and within the operating temperature range (-40°C to +125°C).
• Use proper ESD protection and follow ABB’s installation guidelines for electrical and mechanical connections.
• Ensure the cooling system (air or water) is properly connected and tested before power-up.

Commissioning:

• Verify all gate drive connections, power terminals, and control signals before applying power.
• Use ABB diagnostic tools to test switching performance and thermal behavior under load.
• Monitor the system during initial operation to ensure stable performance.

Maintenance:

• Perform regular inspections of the gate drive unit, heat sink, and cooling system.
• Check thermal paste between the thyristor and heat sink and reapply if necessary.
• Replace any worn or damaged components promptly to avoid system failures.
• Use predictive maintenance tools to monitor performance and anticipate part replacements.
