The Bently Nevada 3500/32 is a 4-channel relay module designed for critical machinery protection within the Bently Nevada 3500 monitoring system. This industrial-grade module provides configurable relay outputs for alarm and shutdown functions in turbomachinery, compressors, and other high-value rotating equipment. As part of Bently Nevada’s flagship 3500 series, the 3500/32 integrates seamlessly with vibration monitors and other system components to deliver reliable fault protection in power generation, oil & gas, and heavy industrial applications.
Featuring epoxy-sealed relays rated for 100,000 operations, the Bently Nevada 3500/32 offers exceptional durability in harsh environments (-30°C to +65°C). Each channel supports programmable AND/OR logic for complex voting schemes, while LED indicators provide real-time status monitoring. The module’s fail-safe design and electrical isolation ensure minimal false trips, making it a trusted solution for SIL-2/SIL-3 safety systems.

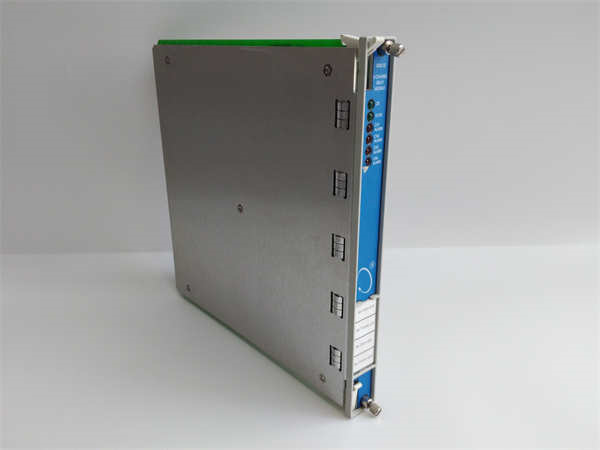

BENTLY 3500/32
Technical Specifications
| Parameter Name | Parameter Value |
| Manufacturer | Bently Nevada |
| Model | 3500/32 |
| Type | Relay Module |
| Channels | 4 independent |
| Relay Configuration | SPDT (Form C) per channel |
| Contact Rating | 5A @ 250V AC/DC |
| Electrical Life | 100,000 cycles (rated load) |
| Operating Temperature | -30°C to +65°C |
| Power Consumption | 6W typical |
| Logic Programming | AND/OR per channel |
| Isolation Voltage | 1500V AC |
| Companion Module | Requires 3500/22 TDI |
| Mounting | Full-height 3500 series rack |
| Certifications | ATEX, IECEx, SIL-2/3 capable |
Key Features
- Flexible Logic Configuration: Program each channel with AND/OR logic gates for custom voting schemes
- High Reliability: Epoxy-sealed relays withstand vibration and contamination

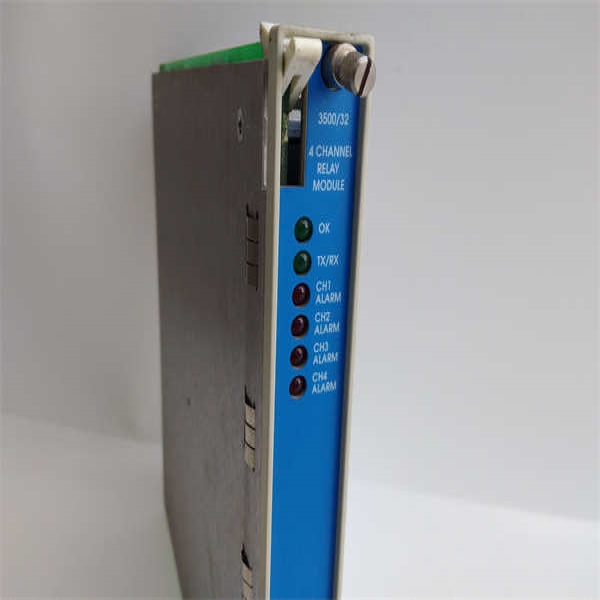

- Visual Diagnostics: Per-channel LED status indicators (OK/Alarm)
- Safety Compliance: Suitable for SIL-2/SIL-3 safety instrumented systems
- Hot Swappable: Supports online replacement without system shutdown
Typical Applications
- Turbine overspeed protection
- Compressor surge control
- Pump and motor trip circuits
- Safety shutdown systems (ESD)
- Bearing temperature monitoring

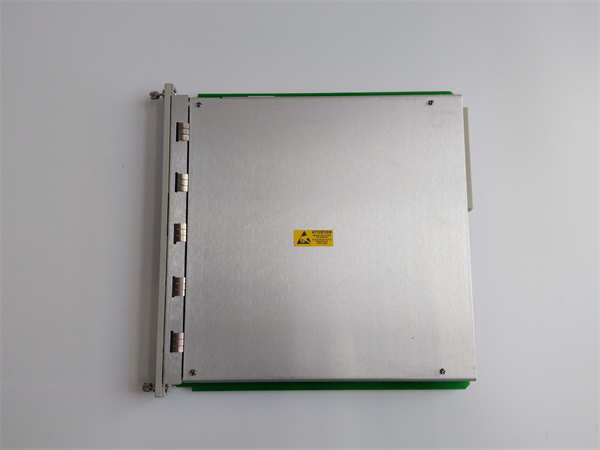

BENTLY 3500/32
The Bently Nevada 3500/32 represents industry-best practices in machinery protection, combining robust hardware with intelligent programmability for mission-critical applications.
