Description

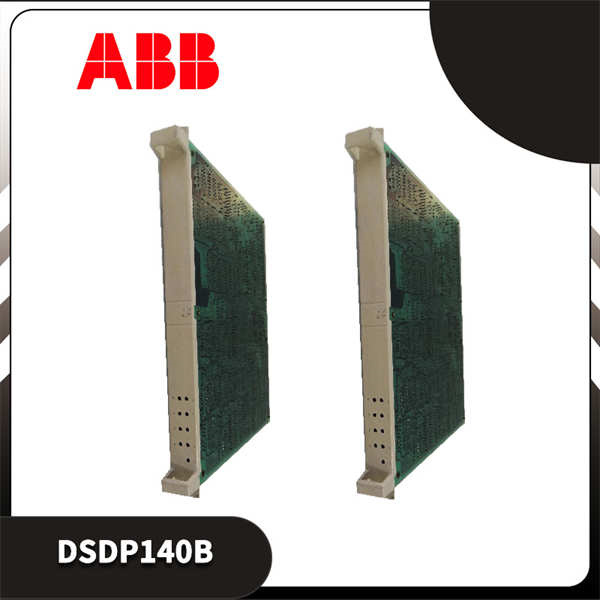

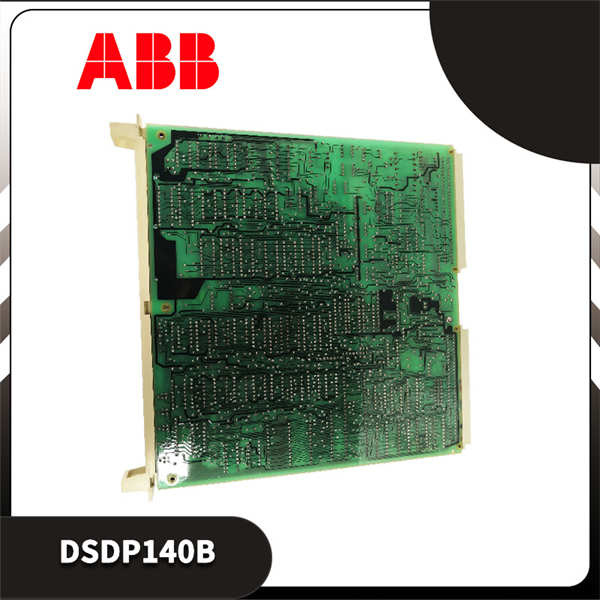

The ABB DSDP140B is a high-density, SIL 3-certified digital input module engineered for critical safety applications within ABB’s System 800xA and AC 800M control platforms. Designed for ultra-reliable status monitoring, this 32-channel module processes discrete signals from emergency stops, safety gates, and process interlocks with hardware-based fault detection. The DSDP140B features redundant internal circuits and continuous self-diagnostics to meet IEC 61508 safety integrity requirements, providing <10>

Encased in a ruggedized housing, the module withstands severe industrial environments with conformal-coated electronics and galvanic isolation (2.5 kV AC) between field circuits and logic. Its patented contact wetting technology ensures reliable detection of low-current signals down to 2 mA, preventing false triggers from corroded contacts. The ABB DSDP140B supports both dry and wet contacts (24-48 V DC) and integrates seamlessly via S800 I/O bus, delivering deterministic data to safety controllers like PM861AK01. For high-risk processes where failure is not an option, this module provides the last line of defense against catastrophic events.

ABB DSDP140B

Technical Specifications

Main Features and Advantages

Ultra-Safe Architecture: Dual independent processing chains per channel with cyclic comparison detect internal faults within 5 ms. Watchdog circuits and voltage monitoring ensure fail-safe behavior. The DSDP140B achieves hardware fault tolerance (HFT=1) through redundant signal paths.

Advanced Diagnostics: Real-time channel health monitoring detects wire breaks, short circuits, and degraded contacts. Built-in contact resistance measurement identifies corroded connections before failures occur. Event logging captures last 8 state changes per channel for incident analysis.

Flexible Configuration: Each channel group (8 channels) can independently select voltage (24V/48V) and contact type (dry/wet). Programmable filtering rejects induced AC noise up to 250V without external components.

Maintenance Optimization: Hot-swappable design allows replacement without process shutdown. The module stores calibration data and diagnostic history in non-volatile memory. Automatic channel substitution enables continued operation during maintenance.

Application Field

The ABB DSDP140B is mission-critical in industries where safety system integrity prevents life-threatening incidents. In oil & gas refineries, it monitors emergency shutdown valves and fire/gas detection systems in ATEX Zone 1 areas. Power plants deploy it for turbine overspeed protection and burner management systems, where redundant voting logic prevents spurious trips.

Chemical processing facilities rely on its SIL 3 certification for reactor pressure relief interlocks. Rail signaling systems use the DSDP140B for track switch position verification. Automotive manufacturing integrates it into robotic cell safety curtains and press brake controls. Pharmaceutical applications leverage its hygienic design for isolator door interlocks in cleanrooms. The module’s -40°C capability makes it ideal for Arctic LNG facilities, while its seismic rating (IEC 60068-3-3) suits nuclear power installations.

Related Products

DSDP150B – Successor module with integrated HART

SD822 – Configuration memory module

FI830F – S800 I/O baseplate

PM864AK01 – Safety CPU for SIL 3 applications

TA521 – Terminal assembly unit

DSCS140 – Communication slave module

CI871 – Ethernet/IP interface

SA801F – High-availability safety controller

ABB DSDP140B

Installation and Maintenance

Pre-installation preparation: Verify safety controller compatibility (requires AC 800M High Integrity or PM8xx safety CPUs). Perform insulation resistance test (>100 MΩ) on field wiring before connection. Configure voting logic (1oo2, 2oo3) in Control Builder Safety software.

Maintenance recommendations: Validate diagnostic functions quarterly via forced fault tests. Measure contact resistance annually using built-in diagnostics. Replace after 15 years or 500,000 operational cycles. When servicing the DSDP140B, use ESD protection and avoid module removal under power unless in hot-swap redundant configuration.
