Description

The ABB KUC755AE117 is a hardened controller module engineered for extreme environments within ABB’s AC 800M High Integrity series, delivering SIL 3-certified process control for mission-critical applications. This ruggedized variant features extended temperature tolerance (-40°C to +85°C) and enhanced vibration resistance (up to 5g RMS), making it ideal for offshore platforms, Arctic facilities, and mobile installations. The KUC755AE117 executes complex control strategies with deterministic sub-millisecond cycle times while maintaining dual-redundant processing paths for fault tolerance.

Designed for ABB’s System 800xA architecture, this module integrates triple modular redundancy (TMR) and automatic fault detection to achieve >99.9999% availability in safety instrumented systems. Its corrosion-resistant housing with IP66 sealing withstands salt fog, blowing sand, and high humidity without derating. The ABB KUC755AE117 supports critical communications protocols including Profinet IRT, EtherNet/IP, and OPC UA PubSub, enabling seamless data exchange with safety valves, turbine controls, and emergency shutdown systems. For liquefied natural gas (LNG) plants, mining operations, and power generation in harsh climates, this controller provides unmatched reliability where conventional electronics fail.

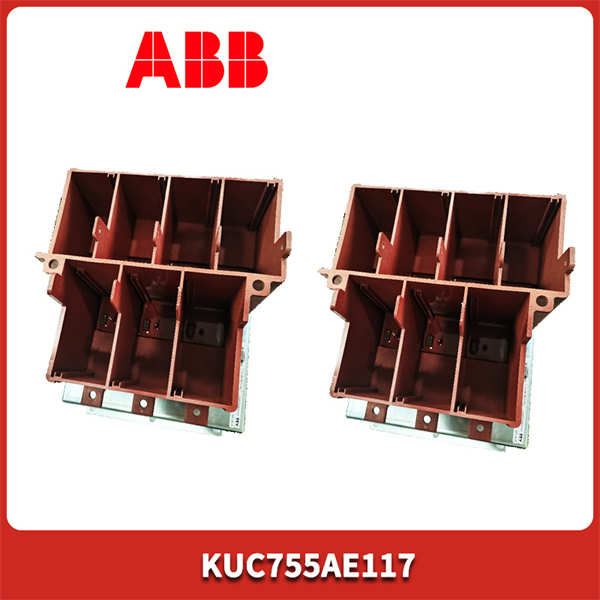

ABB KUC755AE117

Technical Specifications

Main Features and Advantages

Extreme Environment Resilience: Hermetically sealed conformal coating prevents ionic contamination in corrosive atmospheres. Stainless steel heat spreaders manage thermal stress during rapid temperature transitions (-40°C to +85°C in <5>KUC755AE117 exceeds MIL-STD-167 vibration standards for marine applications.

Deterministic Safety Control: Hardware-assisted task scheduling guarantees <1>

Cybersecurity Fortification: Secure boot with hardware-rooted trust validates firmware integrity before execution. Runtime intrusion detection monitors memory access patterns. The KUC755AE117 supports MACsec encryption for all Ethernet communications, meeting NERC CIP and IEC 62443-3-3 requirements.

Lifecycle Optimization: Hot-swappable design enables controller replacement without process interruption. Predictive health monitoring tracks component degradation through embedded sensors. Backward compatibility with AC 800M I/O systems preserves existing infrastructure investments.

Application Field

The ABB KUC755AE117 dominates safety-critical applications in the world’s most challenging environments. Offshore drilling platforms deploy it for subsea blowout preventer (BOP) control, where it withstands salt spray and deck vibrations while maintaining SIL 3 integrity. Arctic LNG trains utilize its cold-start capability (-40°C) for cryogenic valve management. Mining operations rely on its dust immunity for conveyor emergency stop systems and autonomous haulage vehicle control.

Power generation applications include nuclear plant reactor protection systems, leveraging its seismic qualification (IEC 60068-3-3). Mobile installations such as FPSO vessels use the KUC755AE117 for dynamic positioning thrusters and cargo handling. In desert pipeline compression stations, its sand filtration design maintains reliability during sandstorms. The module also serves in military applications including naval propulsion control and forward operating base power management.

Related Products

PM865K01 – Main processor for non-safety applications

SA801F – Safety controller for modular systems

CI871 – PROFINET communication interface

SD822 – Secure digital configuration module

TU847 – Ruggedized HMI panel

KUC720AE – Compact controller for mobile equipment

S800 I/O – Hazardous area I/O modules

DSDP140B – SIL 3 digital input module

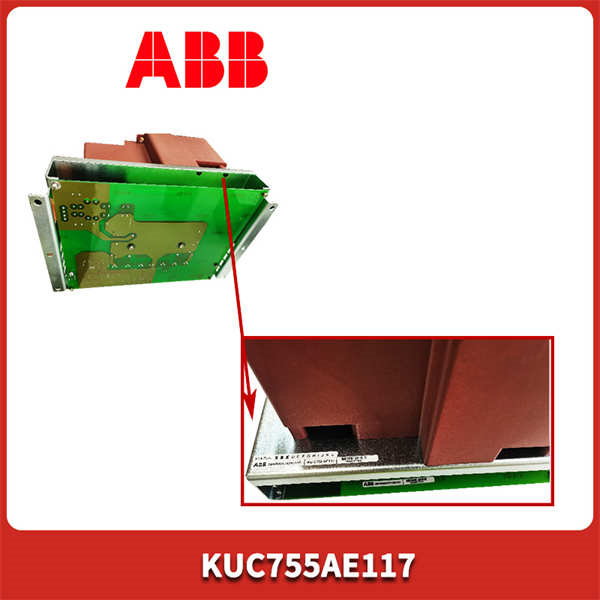

ABB KUC755AE117

Installation and Maintenance

Pre-installation preparation: Acclimate module to operating environment for 24 hours before power-up. Verify rack grounding resistance <1>

Maintenance recommendations: Perform annual conformal coating inspection under UV light. Monitor processor temperature via System 800xA diagnostics; sustained >75°C requires airflow verification. Replace cooling fans every 3 years in high-particulate environments. When servicing the KUC755AE117, maintain ESD protection and use nitrogen purge during board replacement in hazardous areas.
