Description

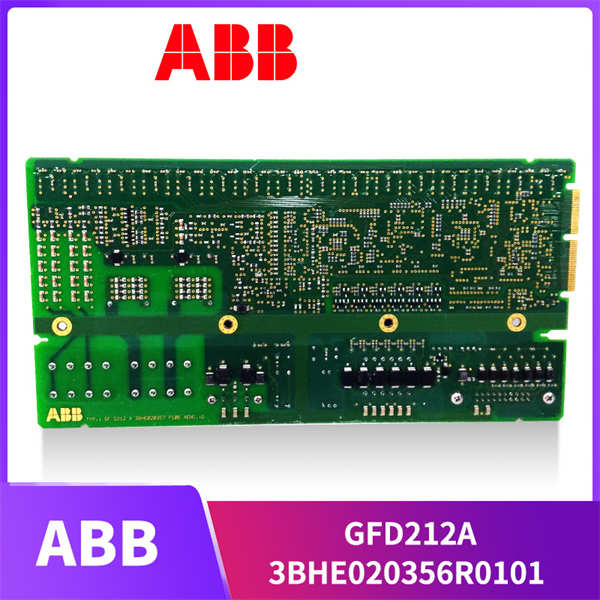

The ABB 3BHE020356R0101 GFD212A is a high-performance Foundation Fieldbus H1 Interface Module for ABB’s AC 800M distributed control system (DCS), designed to enable seamless integration of intelligent field devices in process automation. As a critical component of ABB’s 800xA ecosystem, this GFD212A module provides dual-redundant communication channels supporting up to 16 fieldbus segments, each capable of connecting 24 devices for large-scale industrial networks. It implements the IEC 61158-2 standard for intrinsic safety (FISCO model) and delivers deterministic data exchange with 31.25 kbit/s signaling. Engineered for hazardous environments, the ABB 3BHE020356R0101 GFD212A features galvanic isolation between field and system sides, preventing ground loops while ensuring SIL 2 compliance for safety-related applications. Its hot-swappable design minimizes downtime during maintenance, making it indispensable for continuous processes in oil & gas, chemical, and power generation industries.

Technical Specifications

Main Features and Advantages

Robust Field Connectivity: The GFD212A supports advanced fieldbus functions like LAS (Link Active Scheduler) redundancy and live device replacement, ensuring uninterrupted control loop execution.
Intrinsic Safety: Compliant with FISCO/Entity models, it eliminates the need for external barriers in Zone 1 hazardous areas, reducing installation costs by 30%.
Diagnostic Intelligence: Real-time monitoring of segment voltage (9–32 V DC), communication load (>90% alarm), and device health via Control Builder M3 software.
Cybersecurity: Hardware-enforced protocol whitelisting prevents unauthorized field device access.
High Availability: Dual-redundant H1 ports and hot-swap capability enable maintenance without process interruption. The module’s conformal coating protects against corrosive atmospheres (H2S).

Application Field

The ABB 3BHE020356R0101 GFD212A excels in:

Oil & Gas: Integrates smart transmitters/valves in offshore platforms (SIL 2 safety loops for ESD).

Chemical Plants: Connects pH/flow meters in reactor control systems with Ex-certification.

Power Generation: Manages turbine lube oil monitoring devices in ATEX environments.

Pharmaceutical: Links PAT (Process Analytical Technology) sensors for FDA-compliant batch processes.

Water Treatment: Controls intelligent actuators in chlorine dosing systems with <1>

Related Products

ABB CI854A: Profibus DP interface module

ABB SD822: 16-channel digital input for S800 I/O

ABB TA521: Termination assembly for fieldbus segments

ABB PP825: 24 V DC redundant power supply

ABB 3BHE024855R0101: HART multiplexer module

ABB XTIO200: Explosion-proof field junction box

ABB CP635: Control panel for fieldbus diagnostics

Installation and Maintenance

Pre-installation preparation: Verify segment wiring (Type A shielded twisted pair) and grounding per FOUNDATION Fieldbus guidelines. Ensure power conditioners (e.g., ABB XTIO200) are installed within 1,200 m range. Configure device addresses offline using Control Builder M3 before deploying the ABB GFD212A.
Maintenance recommendations: Perform quarterly segment diagnostics via FF Device Diagnostics software. Check terminal torque (0.5 N·m) annually. Replace modules during planned shutdowns—hot-swap requires redundant segment activation. Clean connectors with isopropyl alcohol to maintain the ABB 3BHE020356R0101 GFD212A‘s signal integrity.
