The ABB GBU72 3BHE055094R0002 is a high-power Thyristor Bridge Unit engineered for generator excitation systems in power plants and industrial drive applications. As a core component of ABB’s static excitation solutions, this GBU72 module converts AC input to precisely regulated DC output (up to 1,500 V DC) for controlling rotor currents in synchronous generators. Its phase-controlled thyristor technology enables rapid field current adjustments (<10>ABB 3BHE055094R0002 features forced-air cooling, built-in snubber circuits for dv/dt protection, and fiber-optic triggering for noise immunity. With IP54-rated enclosures and -40°C to +55°C operational range, this unit delivers unmatched reliability in harsh substation environments, supporting critical infrastructure for hydro, thermal, and renewable power generation.

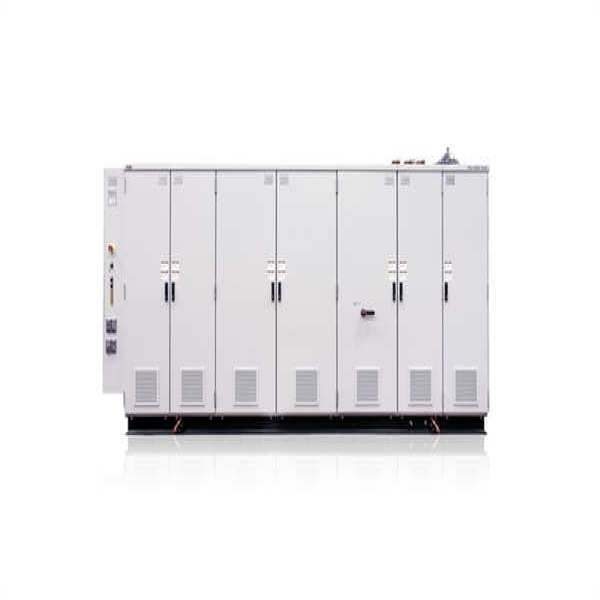

ABB GBU72 3BHE055094R0002
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | ABB GBU72 3BHE055094R0002 |
| Manufacturer | ABB |
| Product Type | Thyristor Bridge Unit |
| Rated DC Output | 1,500 V / 2,000 A (continuous) |
| AC Input Voltage | 3-phase, 690 V AC ±10% |
| Thyristor Type | Press-pack (NPT) with integrated gate drivers |
| Cooling Method | Forced air (2.5 m³/min airflow required) |
| Control Signals | Fiber-optic isolated (ST connectors) |
| Efficiency | >99.2% (at full load) |
| Protections | Overcurrent (di/dt <100> |
| Insulation Voltage | 6 kV AC (input-output) |
| Operating Temperature | -40°C to +55°C |
| Enclosure Rating | IP54 (dust/water resistant) |
| Dimensions | 450 × 320 × 210 mm (H×W×D) |
| Weight | 28 kg |
| Certifications | UL 508C, IEC 60146, ANSI/IEEE C37.90 |
Main Features and Advantages
Precision Power Control: Phase-angle firing with 0.1° resolution enables ±0.25% DC voltage regulation for grid synchronization.
Robust Topology: Press-pack thyristors withstand 100 kA short-circuit currents without fusing. Redundant gate drivers ensure firing continuity.
Advanced Diagnostics: Integrated RTD sensors monitor heatsink temperatures, while fiber-optic feedback confirms thyristor status.
Cybersecurity: Isolated fiber control prevents electromagnetic interference (EMI) and cyber-physical attacks.
Maintenance Optimization: Front-accessible test points allow offline thyristor testing. Hot-swappable fans (MTTF: 80,000 hrs) minimize downtime.
Seamless Integration: Compatible with ABB’s PCD231A excitation controllers via MUB interface cards.
Application Field
The ABB GBU72 3BHE055094R0002 excels in:
Power Generation: Excites 50–800 MW hydro/thermal generators, enabling black-start capability and VAR/power factor control.
Industrial Drives: Powers DC motors in rolling mills (torque control <5>
Renewables: Regulates doubly-fed induction generators (DFIG) in wind farms during grid faults.
Marine: Provides excitation for shipboard synchronous compensators.
Steel Plants: Supplies DC current for arc furnace electrode positioning systems.
Related Products
ABB PCD231A: Excitation controller with AVR/PSS algorithms
ABB FSKB11: Field circuit breaker for excitation systems
ABB MUB010: Interface module for UNITROL® 6000
ABB 5SHY3545L0006: IGCT module for high-power drives
ABB DSAI130: Digital I/O module for excitation control
ABB 3BHE037864R0001: Crowbar protection unit
ABB UNS0880B: HMI panel for excitation monitoring
ABB GBU72 3BHE055094R0002
Installation and Maintenance
Pre-installation preparation: Verify concrete foundation strength (>5 kN/m²) and clearances (>500 mm top/sides for airflow). Ground chassis via 50 mm² copper cable (impedance <0>5 kV DC).
Maintenance recommendations: Clean air filters monthly in dusty environments. Measure thyristor forward voltage drop (VF) annually using ABB’s ThyroTest kit. Calibrate fiber-optic triggers every 24 months. Monitor junction temperature deviation (<5>
