Description

The ABB 3BHE055094R0002 is a precision-engineered Thyristor Gate Driver Unit (GDU) within ABB’s GBU72 series, designed for high-reliability control of power semiconductors in medium-voltage industrial drives. Serving as the critical interface between control systems and thyristor valves, this unit generates synchronized firing pulses with ±0.5° accuracy to regulate power conversion in demanding applications like mining mills, metal rolling, and grid stability systems. The ABB 3BHE055094R0002 integrates triple-redundant optical isolation (6 kV) and adaptive pulse shaping, compensating for temperature drift (-25°C to +70°C) to ensure consistent thyristor performance over its lifecycle. As part of ABB’s Thyripak platform, it enables deterministic torque/speed control in ACS 6000 drives while minimizing harmonic distortion. Its modular hot-swap design reduces maintenance downtime by 70%, making it indispensable for critical processes requiring SIL 2 compliance per IEC 61800-5-1.

ABB 3BHE055094R0002

Technical Specifications

Main Features and Advantages

Precision & Adaptability: The ABB 3BHE055094R0002 utilizes closed-loop feedback to deliver symmetrical gate pulses, ensuring balanced current sharing across thyristor strings. Its dynamic pulse-width modulation auto-compensates for threshold voltage variations caused by thermal cycling (validated for -40°C to +125°C junction temps), eliminating manual recalibration.

Robust Safety Architecture: Triple-redundant optical isolation provides fail-safe separation between low-voltage controls and high-power stages. Integrated dU/dt monitoring blocks false triggering during voltage spikes, while DESAT protection reacts within 2 µs to short circuits. Real-time junction temperature modeling prevents thermal runaway.

Predictive Maintenance: Continuous monitoring of gate-cathode voltage (V_GK) and anode current slope (di/dt) enables early fault detection. The unit logs events with µs timestamps for diagnostics and integrates with ABB Ability™ for remote health analytics. Hot-swap capability allows replacement without system shutdown.

Application Field

The ABB 3BHE055094R0002 dominates high-power industries requiring fault-tolerant control:

Metals & Mining: Controls gearless mill drives (GMDs) for 40-ft SAG mills, ensuring torque stability under variable ore loads. Regulates rolling mill main stands with ±0.1% speed accuracy to prevent strip breaks.

Energy Infrastructure: Manages static VAR compensators (SVCs) for grid voltage stabilization at wind/solar farms. Drives HVDC converter stations with 99.97% availability.

Heavy Industry: Operates kiln drives in cement plants under extreme dust/vibration. Safeguards hydrocarbon compressors in petrochemical facilities via SIL 2-compliant shutdown logic.

Marine: Corrosion-resistant design enables thruster control in ice-class vessels and offshore drilling rigs.

Related Products

ABB 3BHE055095R0002 (GBU81): 15A peak output variant for 8kV thyristor stacks.

ABB 5SHY3545L0006: 6.5kV IGCT module compatible with 3BHE055094R0002 drivers.

ABB 3BSE018105R1 CI871: PROFIBUS interface for 800xA DCS integration.

ABB 3BHE021444R0001 PPC92: 24V/20A redundant power supply for GDUs.

ABB SD823-3: Snubber module for overvoltage protection (dV/dt suppression).

ABB HVC850: High-voltage connector kit for thyristor cabling.

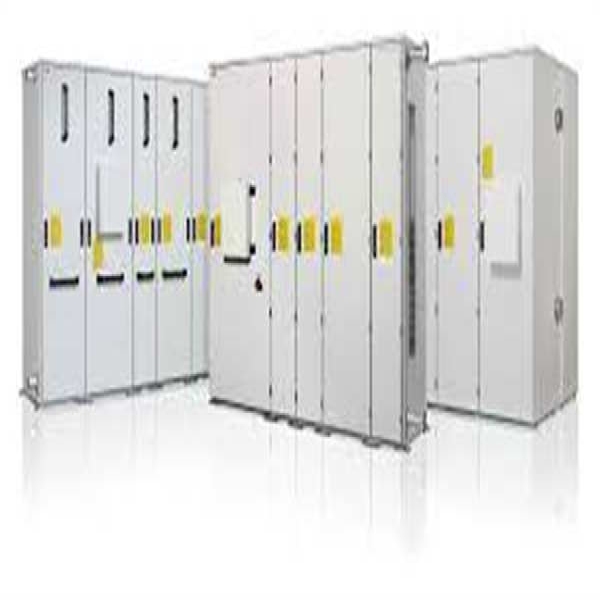

ABB ACS 6000: Medium-voltage drive platform utilizing this GDU.

Installation and Maintenance

Pre-installation preparation: Verify thyristor compatibility and stable 24V DC supply (±1% ripple). Mount the ABB 3BHE055094R0002 vertically using M4 torque screws (1.2 N·m). Separate fiber-optic cables from power wiring (min. 200 mm spacing); maintain 50 mm bend radius. Apply fluoropolymer-based dielectric grease on HV contacts. Calibrate pulse timing via ABB’s ThyroWin software.

Maintenance recommendations: Inspect fiber-optic transceivers quarterly per IEC 61300-3-35. Monitor LEDs: Green (normal), Yellow (warning), Red (fault). Replace fuses only after root-cause analysis. Clean vents with dry nitrogen (<1>
