Description

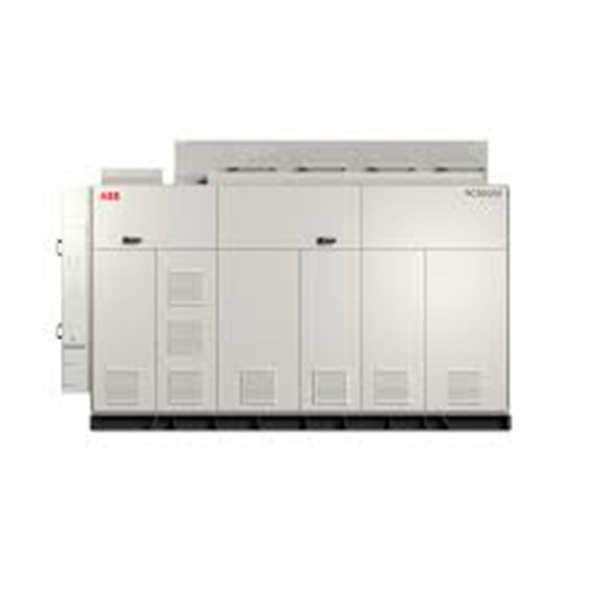

The ABB PCS6000 product family represents ABB’s advanced power conversion systems engineered for high-power industrial and renewable energy applications. These modular, multi-drive platforms deliver precision control from 1 MW to 40 MW, integrating cutting-edge power electronics with digital intelligence for critical processes requiring ultra-low harmonics (<3>PCS6000 series leverages ABB’s proprietary IGCT/Thyristor hybrid topology and active front-end technology to enable bidirectional power flow, making it ideal for dynamic applications like metal rolling mills, mine hoists, grid stabilization, and large-scale energy storage.

Designed for 24/7 operation in SIL 2 environments (IEC 61800-5-1), the ABB PCS6000 platform features a unified control architecture with ABB Ability™ digital integration. This allows real-time performance optimization, predictive maintenance, and cybersecurity-hardened operation. The product family includes converters, inverters, harmonic filters, and control cabinets engineered as complete skid-mounted solutions, reducing installation time by 40% compared to conventional systems.

Technical Specifications

Core Specifications for PCS6000 Platform

Main Features and Advantages

Grid-Friendly Performance:
The PCS6000 features active harmonic cancellation technology that eliminates need for external filters. Its regenerative capability feeds braking energy back to the grid (up to 100% regeneration), reducing energy costs by 15–30% in cyclical loads.

Modular Scalability:
Power stacks scale in 2.5 MW increments with N+1 redundancy. Hot-swappable power modules (e.g., 5SHY55L4502) enable capacity upgrades without downtime. Integrated DC-link sharing allows parallel operation of multiple drives.

Predictive Operation:
ABB Ability™ monitors >200 parameters (junction temps, capacitor health, torque ripple) using digital twins. Cloud analytics predict failures 8+ weeks in advance with 92% accuracy.

Ruggedized Design:
Marine-grade coating (DNV-GL certified) and IP54 cabinets withstand salt fog, dust, and humidity. Redundant controllers with <50ms>

Application Field

The ABB PCS6000 platform excels in megawatt-scale power conversion:

Metals Industry: Reversing mill drives requiring ±100% torque reversal in <50ms>

Mining: Hoist control for 2,500m deep shafts with regenerative braking energy recovery

Energy Storage: Grid-scale BESS integration (50MW/200MWh) with black-start capability

Marine: Azipod® propulsion and offshore crane control with DNV-GL compliance

Renewables: Inertia emulation for wind/solar farms to stabilize weak grids

Test Benches: High-speed traction motor validation at 15+ MW load levels

Related Products

ACS6000 Multi-Drive: Medium-voltage drive system sharing control platform

5SHY55L4502 IGCT Power Stack: Core switching module for PCS6000

SDCS-COM-1 Controller: Real-time control processor

PCS6000-AFE-33 Active Front End: 3.3kV regenerative unit

PCS6000-HF-138 Harmonic Filter: 13.8kV integrated filter module

ABB Ability™ Genix Industrial Analytics: Performance optimization suite

HVC850 High-Voltage Connector: 10 kV rated connection system

Installation and Maintenance

Pre-installation preparation: Conduct grid impedance study per IEEE 519. Prepare reinforced concrete foundation (6x drive weight capacity). Verify crane access for 8-ton power modules. Pre-install liquid cooling piping with glycol testing (-30°C burst proof).

Maintenance recommendations: Perform quarterly thermal scans on DC-link capacitors (ΔT <5>
