Description

The ABB 5SHX0660F0002 is a high-performance Integrated Gate-Commutated Thyristor (IGCT) module engineered for ultra-high-power industrial applications. As part of ABB’s 5SHX series, this device integrates cutting-edge power semiconductor technology to deliver efficient energy conversion, robust thermal management, and unparalleled reliability in critical infrastructure. The ABB 5SHX0660F0002 serves as a core switching component in voltage-source converters (VSCs) and current-source inverters (CSIs), enabling precise control of multi-megawatt electrical systems. Designed for harsh industrial environments, it features a press-pack housing that ensures mechanical stability and facilitates direct liquid cooling. With its 6,600A current rating, the ABB 5SHX0660F0002 minimizes conduction losses while supporting rapid switching frequencies up to 500 Hz. This module exemplifies ABB’s commitment to advancing heavy-duty automation, providing seamless interoperability with ABB ACS6000 drives and HVDC systems. For industries demanding fault-tolerant power control, the ABB 5SHX0660F0002 offers a scalable solution that reduces system complexity and lifecycle costs.

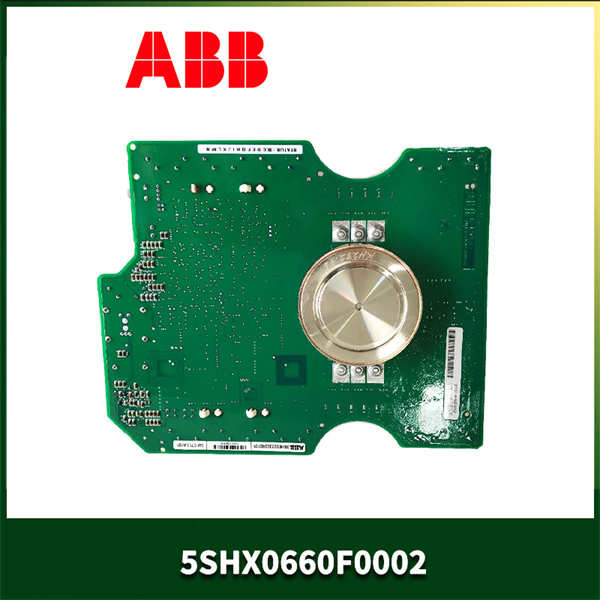

ABB 5SHX0660F0002

Technical Specifications

Main Features and Advantages

The ABB 5SHX0660F0002 excels in high-power density applications through its low-loss semiconductor design, reducing heat generation by 15% compared to conventional GTO thyristors. Its symmetrical press-pack construction enables bidirectional pressure tolerance, critical for vibration-heavy environments like mining or marine propulsion. The module integrates a snubberless turn-off capability, eliminating external damping circuits and cutting system costs by up to 20%. For operational safety, it features built-in short-circuit protection and a fail-safe gate unit that prevents uncontrolled conduction.
Thermal management is optimized via direct liquid cooling channels, maintaining junction temperatures below critical thresholds even at 6,600A continuous load. The fiber-optic triggering interface ensures noise-immune signal transmission, essential for electromagnetic compatibility (EMC) in substations. ABB’s proprietary bonding technology extends the ABB 5SHX0660F0002 service life beyond 100,000 operational hours, validated through accelerated aging tests. Additionally, its modular design allows hot-swapping in redundant configurations, minimizing downtime during maintenance.

Application Field

The ABB 5SHX0660F0002 dominates ultra-high-power conversion scenarios requiring megawatt-level control. In energy transmission, it anchors HVDC (High-Voltage Direct Current) converter stations for intergrid power transfers, enabling efficient 500kV+ transmission with minimal losses. For heavy industries, the module drives multi-motor systems in rolling mills (10-20 MW range) and compressor stations for LNG processing, where torque precision impacts production yield. Renewable energy integrators deploy the ABB 5SHX0660F0002 in offshore wind farm converters, handling 6-8 MW turbine outputs while resisting salt corrosion. Mining operations benefit from its ruggedness in electric shovel drives (e.g., 5,000-ton excavators), where voltage spikes and dust ingress challenge conventional components. In marine propulsion, it powers azipod thrusters for icebreakers and cruise ships, delivering harmonic-free speed control. The module’s immunity to grid disturbances also makes it ideal for STATCOM systems stabilizing weak electrical networks.

Related Products

ABB 5SHX08F4502: 4,500V/8,000A IGCT module for higher current requirements.

ABB 5SHY3545L0006: Companion gate unit for 5SHX0660F0002 triggering.

ABB 5SXE08-0187: Liquid cooling plate assembly for thermal management.

ABB 5SHX1445V0001: 6,500V asymmetric IGCT for DC link applications.

ABB 3BHE039203R0101: Diagnostics interface card for module health monitoring.

ABB 5SHX2645L0004: 2,600A variant for mid-range power systems.

ABB ACS6000: Complete MV drive system integrating 5SHX series modules.

ABB 5SDF0860H0003: Clamping unit for press-pack module installation.

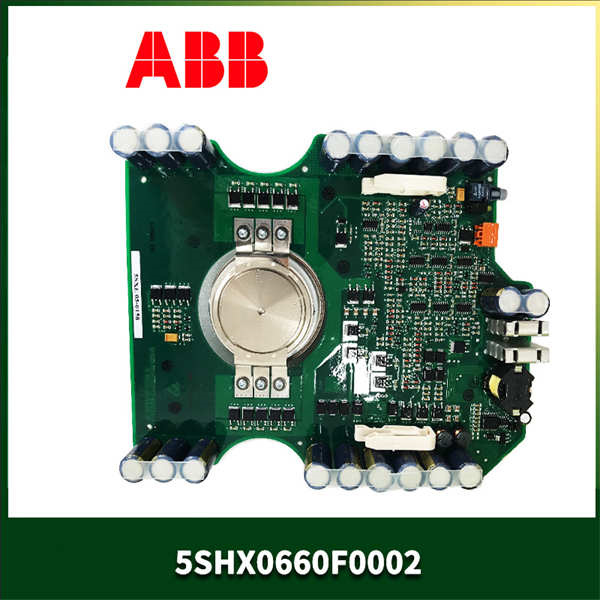

ABB 5SHX0660F0002

Installation and Maintenance

Pre-installation preparation: Verify cooling fluid purity (deionized water/glycol mix) and filtration system integrity before mounting the ABB 5SHX0660F0002. Ensure mounting surfaces are flat (≤10µm deviation) and apply thermal paste uniformly. Use a calibrated torque wrench to achieve 25kN clamping force—under-compression risks thermal runaway, while over-compression may crack the ceramic substrate. Electrically isolate the module baseplate from heatsinks using ABB-approved mica sheets.
Maintenance recommendations: Monitor cooling fluid conductivity monthly; values exceeding 5µS/cm necessitate flushing. Perform infrared thermography quarterly to detect abnormal hot spots on the ABB 5SHX0660F0002 housing. Replace gate-unit fibers every 5 years or after 50,000 switching cycles. During outages, validate contact resistance (<2m>
