Description

The ABB AC10272001R0101 5SXE10-0181 5SHY35L4520 is a high-power integrated gate-commutated thyristor (IGCT) stack engineered for ultra-high-power industrial drives and grid applications. This comprehensive assembly combines the 5SHY35L4520 IGCT semiconductor (4500V/4000A) with the 5SXE10-0181 press-pack heatsink interface and the AC10272001R0101 gate driver unit, forming a robust power electronics solution for multi-megawatt conversion. Designed for ABB’s ACS6000 medium-voltage drive platform, this system enables efficient 3-level NPC (Neutral Point Clamped) inverter topologies for controlling synchronous motors up to 100MW. The 5SHY35L4520 IGCT features asymmetric voltage blocking and ultra-low conduction losses (1.25V typical), while the integrated gate driver ensures precise switching with <3>5SXE10-0181 interface provides uniform pressure distribution for optimal thermal contact to liquid-cooled heatsinks, enabling junction temperatures up to 125°C. Together, these components deliver 99.3% system efficiency in steel mill main drives, mining conveyors, and compressor applications where reliability under transient overloads (200% for 60s) is critical.

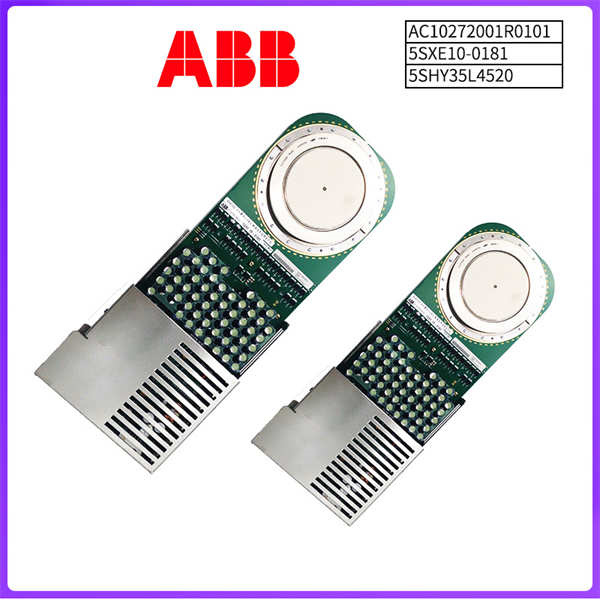

ABB AC10272001R0101 5SXE10-0181 5SHY35L4520

Technical Specifications

Main Features and Advantages

Ultra-High Power Density: The 5SHY35L4520 IGCT achieves 40% higher current density than GTOs, enabling compact drive cabinets. Integrated snubber capacitors reduce parasitic inductance to <20nH>

Predictable Failure Mode: Press-pack design ensures fail-short behavior during faults, preventing cascading failures. The 5SXE10-0181 interface maintains uniform pressure (±5%) across 10,000 thermal cycles.

Intelligent Gate Drive: The AC10272001R0101 driver provides active dv/dt control (1-5kV/µs adjustable) and real-time device health monitoring via fiber-optic feedback. On-board diagnostics predict end-of-life through gate charge measurement.

Rugged Performance: Hermetically sealed ceramic housing withstands 50g mechanical shock. 65kA surge capacity handles transformer inrush currents in grid STATCOM applications.

Application Field

This IGCT stack dominates ultra-heavy industrial power conversion:

Steel Industry: Powers 12-stand hot strip mill main drives (20MW+) with torque stability <0>

Mining: Drives 10km overland conveyors with regenerative braking at 150% overload capacity during emergency stops.

Oil & Gas: Controls 30MW centrifugal compressors for LNG liquefaction with <0>

Energy: Forms building blocks for 100MVA STATCOMs providing grid voltage stabilization with ±1ms response.

Marine: Propulsion drives for icebreakers where the -40°C cold-start capability is critical.

Related Products

ABB 5STP26D6500: Snubber diode stack for NPC midpoint clamping.

ABB 5SDF10H4503: Gate unit power supply for AC10272001R0101.

ABB 5SXE08-0187: Low-inductance busbar kit for paralleling stacks.

ABB 5SHY3545L0020: 3500V/5000A IGCT alternative for higher current.

ABB ACS6000-S04: Complete drive cabinet accepting 4x 5SHY35L4520 stacks.

ABB 5SGA30H4502: Water-cooled heatsink for single-stack cooling.

ABB 5SDF08L4502: Driver monitoring interface for predictive maintenance.

ABB 5SYA00-0336: Fiber-optic trigger cable kit.

Installation and Maintenance

Pre-installation preparation: Verify cooling water conductivity <0>5SXE10-0181 contact surfaces. Calibrate pressure bolts to 12kN±5% using torque wrench. Test gate driver AC10272001R0101 with ABB DST-100 test set.

Maintenance recommendations: Monitor cooling water pH monthly (maintain 6.5-8.5). Perform annual pressure calibration on 5SXE10-0181. Check gate charge values quarterly via AC10272001R0101 diagnostics. Replace desiccant in driver unit every 24 months. Use IR thermography during 150% load tests to detect hot spots.
