The ABB CI867K01 3BSE043660R1 is an advanced IEC 61850 communication interface engineered for modern power utility automation within ABB’s S800 I/O and AC 800M control ecosystems. This specialized module bridges protection relays, circuit breakers, and intelligent electronic devices (IEDs) with ABB’s Industrial IT 800xA/Advant OCS platforms using standardized substation communication protocols. Supporting IEC 61850-8-1 (MMS/GOOSE) and IEC 61850-9-2 (Sampled Values), the ABB CI867K01 3BSE043660R1 enables real-time data exchange for critical grid operations like fault detection, load shedding, and synchrocheck. Its dual-redundant architecture ensures zero packet loss during network transitions, while integrated cybersecurity features comply with IEC 62351 standards. For utilities modernizing legacy substations or deploying digital substations, the ABB CI867K01 3BSE043660R1 provides future-proof interoperability between multivendor IEDs and ABB’s control hierarchy, reducing integration costs by 30% compared to gateway solutions.

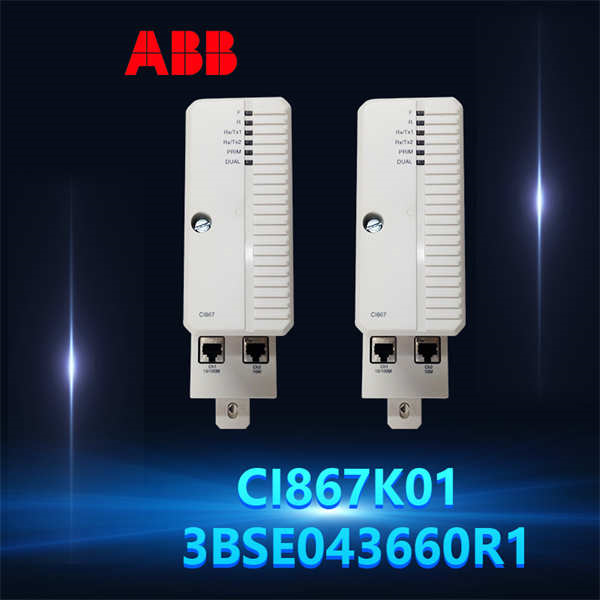

ABB CI867K01 3BSE043660R
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | CI867K01 3BSE043660R1 |
| Manufacturer | ABB |
| Product Type | IEC 61850 Communication Interface |
| Standards | IEC 61850-8-1 Ed.2, IEC 61850-9-2 LE, IEC 62351 |
| Protocols | MMS, GOOSE, SV (Sampled Values) |
| Ethernet Ports | 2x 100BASE-FX (multimode SC connectors) |
| Data Rate | 100 Mbps |
| Power Supply | 24V DC (18–32V), redundant inputs |
| Power Consumption | 3.5W (max) |
| Operating Temperature | -40°C to +70°C |
| Certifications | IEC 61850-3, IEEE 1613 (Class 2) |
| Dimensions | 122 x 132 x 115 mm |
| MTBF | >300,000 hours |
Main Features and Advantages
The ABB CI867K01 3BSE043660R1 delivers deterministic performance for time-critical protection schemes. Its hardware-accelerated GOOSE processing achieves sub-4ms event transmission, enabling rapid busbar tripping and islanding detection. The module supports simultaneous publishing/subscribing of 64 GOOSE/SV control blocks with configurable VLAN tagging (IEEE 802.1Q), ensuring traffic prioritization in congested networks.
Cybersecurity hardened:
Integrated IEC 62351-compliant encryption and role-based access control (RBAC) prevent unauthorized configuration changes. For compliance, it generates detailed event logs for audit trails. The fiber-optic interfaces (100BASE-FX) provide galvanic isolation and EMI immunity in high-noise substation environments. ABB’s System 800xA engineering suite simplifies SCL (Substation Configuration Language) file import/export, automating IED binding and reducing engineering effort by 50%. The module’s -40°C cold-start capability ensures reliability in arctic deployments, while hot-swappable design allows maintenance without process interruption.
Application Field
The ABB CI867K01 3BSE043660R1 is indispensable in smart grid infrastructure. In transmission substations (220kV+), it integrates Siemens SIPROTEC relays with ABB’s SCADA for wide-area protection schemes. For hydroelectric plants, it streams turbine vibration (Sampled Values) from GE UR relays to ABB’s Condition Monitoring System, enabling predictive maintenance. Renewable farms use it to synchronize solar/wind inverters (SEL, ABB REL670) during grid disturbances via GOOSE commands.
In oil & gas, the module connects compressor protection systems (Woodward NetContro) to ABB’s DCS for emergency shutdown coordination. Data centers deploy the ABB CI867K01 3BSE043660R1 to manage backup generator synchronization during utility outages. For railway electrification, it interfaces traction substation IEDs with centralized energy management systems, optimizing regenerative braking energy reuse.
Related Products
TB811 – High-density S800 carrier for CI867K01 mounting.
CI869 – PROFINET Controller module for complementary networking.
SAO801 – Analog output module for breaker control signals.
SD822 – Fast digital input module (1ms resolution).
AC 800M PM891 – Controller for substation automation.
3BSE050091R65 – Redundant power supply for S800.
CI858K01 – PROFIBUS interface (alternative protocol).
S800 I/O LD800 – HART multiplexer for instrument integration.
RTU560 – Remote terminal unit for grid telecontrol.
REF615 – ABB feeder protection relay (IEC 61850-enabled).
ABB CI867K01 3BSE043660R
Installation and Maintenance
Pre-installation preparation: Validate firmware compatibility with System 800xA (min. 6.1.1). Use only ABB-approved 62.5/125μm multimode LC-LC fiber cables (max. 2km). Configure SCL files offline using PCM600 before hardware commissioning. Ensure proper grounding of S800 carrier to avoid communication errors.
Maintenance recommendations: Monitor Ethernet port LEDs (LINK/ACT) monthly. Clean fiber connectors biannually with IPA wipes. Update firmware during planned outages via Control Builder M. Maintain ambient humidity below 95% non-condensing. Replace cooling fans after 5 years of continuous operation. Calibrate Sampled Values scaling annually using ABB’s FISCO tool.
