Description

The ABB DI810 3BSE008508R1 is a high-density digital input module designed for ABB’s S800 I/O system, forming a critical component of the Industrial IT 800xA and Advant OCS control platforms. This 16-channel module acquires discrete signals from field devices (e.g., switches, sensors, relays) and converts them into process data for ABB AC 800M controllers. Engineered for mission-critical applications, the ABB DI810 features galvanic isolation per channel (500V AC) and supports both dry contact (24V DC) and wet contact (48V DC) inputs. Its robust design enables real-time monitoring of plant status with <1ms>

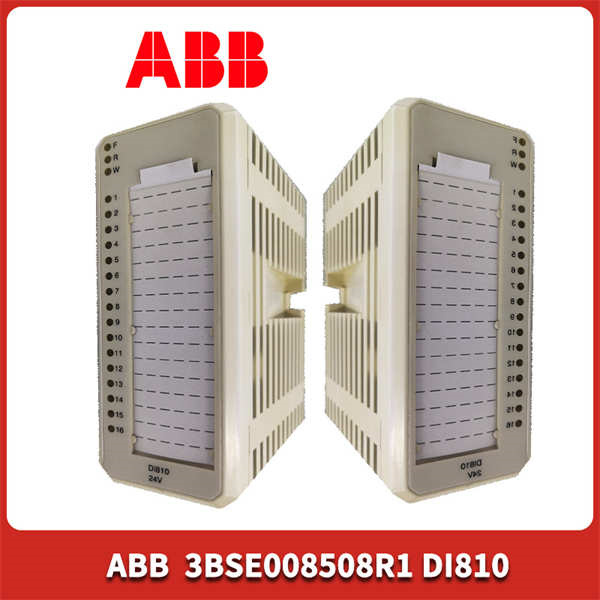

ABB DI810

Technical Specifications

Main Features and Advantages

Channel-level diagnostics:
Each channel features independent short-circuit and wire-break detection with LED status indication (green=OK, red=fault), enabling rapid troubleshooting without process interruption. The ABB DI810 supports Group Error Signaling (GES) for system-level alarm aggregation.

Safety and resilience:
Designed for SIL 2 applications with hardware-based fault tolerance. The reinforced isolation withstands 2.3kV AC transient surges (IEC 61000-4-5). Hot-swappable design allows module replacement during operation when used with redundant carriers. Backward compatibility with legacy Advant OCS systems simplifies migration.

Configuration flexibility:
Switch-selectable input filtering (1/8/16ms) adapts to noisy environments. The module’s low power dissipation (<1>

Application Field

The ABB DI810 excels in safety-critical industrial scenarios. In power generation, it monitors turbine lube oil pressure switches and breaker statuses. Chemical plants use it for high-integrity level switch detection in SIL 2-rated safety instrumented systems.

For manufacturing:

Automotive: Robot cell emergency stop circuits

Pharmaceuticals: Cleanroom door interlocks

Mining: Conveyor belt slip detection

Water Treatment: Pump motor running feedback

Oil & Gas: Flame detector status monitoring

The module’s ATEX compliance allows deployment in Zone 2 hazardous areas. In transportation, it interfaces with signaling equipment in rail control systems.

Related Products

TB801 – Standard S800 carrier for DI810 mounting

TB811 – High-density carrier with vibration damping

SD822 – Fast digital input module (1ms response)

DI801 – 8-channel variant with higher isolation

SA801 – Analog input module for complementary sensing

CI858K01 – PROFIBUS interface for data transmission

AC 800M PM865 – Controller for logic processing

SD821 – Digital output module for control actuation

3BSE018105R1 – Redundancy kit for critical applications

LD800 – HART multiplexer for smart instrument integration

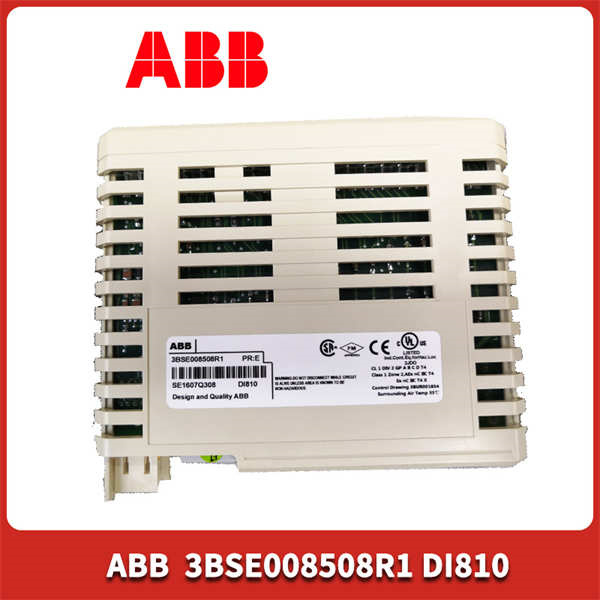

ABB DI810

Installation and Maintenance

Pre-installation preparation: Verify carrier compatibility (TB801/TB811 minimum rev. 2.1). Configure input filtering via DIP switches before power-up. Use twisted-pair cables with shield grounded at one end only. Maintain 10mm clearance between high-voltage cables and signal wiring.

Maintenance recommendations: Perform annual contact resistance checks on terminal blocks. Monitor channel LEDs monthly for fault indications. Clean terminals during shutdowns using non-abrasive contact cleaner. Replace after 15 years of service or 100,000 power cycles. For optimal ABB DI810 performance, maintain ambient humidity below 95% non-condensing.
