The ABB SDCS-CON-4 is a high-precision signal converter module engineered for ABB’s SDCS-IOB drive control systems, serving as a critical interface between drive controllers (e.g., ACS880) and field sensors/actuators. This module converts analog/digital signals with galvanic isolation, enabling noise-immune communication in electrically harsh industrial environments. Designed for modular drive cabinets, the SDCS-CON-4 supports 4 independent channels, each configurable as voltage (0–10 V), current (4–20 mA), or digital I/O. Its real-time signal conditioning (≤1 ms latency) ensures accurate torque control and feedback for motors in demanding applications like steel rolling mills or offshore cranes. With SIL 2 compliance and extended temperature resilience (–25°C to +70°C), it guarantees operational integrity in mission-critical drive systems.

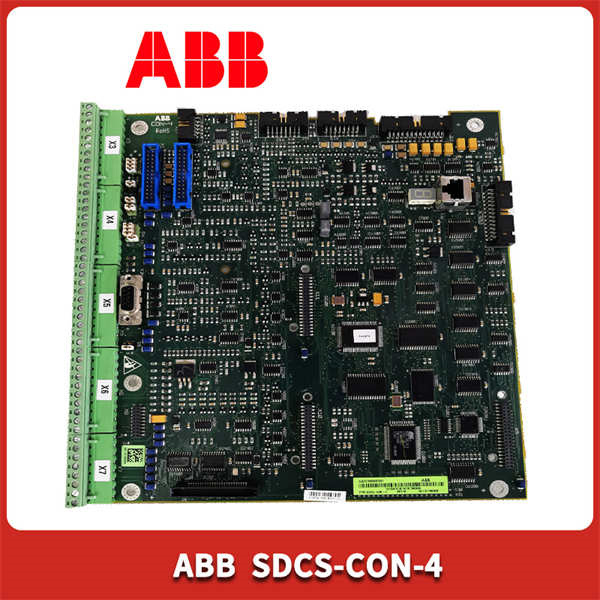

ABB SDCS-CON-4
Technical Specifications
| Parameter | Value |
| Product Model | SDCS-CON-4 |
| Manufacturer | ABB |
| Product Type | Signal Converter Module |
| Channels | 4 (individually configurable) |
| Input Types | 0–10 V, ±10 V, 4–20 mA, TTL digital |
| Output Types | 0–10 V, 4–20 mA, relay contact (24 V DC/2 A) |
| Isolation | 1500 V AC (channel-to-channel/channel-to-backplane) |
| Accuracy | ±0.1% FS (analog), ±1 µs (digital) |
| Response Time | ≤1 ms |
| Power Supply | 24 V DC (±10%) via SDCS backplane |
| Operating Temperature | –25°C to +70°C |
| Communication Interface | SDCS-IOB optical bus (100 Mbps) |
| Dimensions | 124 x 30 x 120 mm (H x W x D) |
| Certifications | SIL 2, CE, UL, IEC 61800-5-1 |
Main Features and Advantages
Flexible signal adaptation:
Each channel independently configures as input/output via Drive Composer Pro software
Auto-calibration compensates for temperature drift (±5 ppm/°C)
Fault-tolerant design:
Redundant optical bus connection maintains communication during single-fiber failure
Channel-level diagnostics detect wire breaks, short circuits, and saturation
Safety integration:
SIL 2-compliant signal paths for safety torque off (STO) and speed monitoring
Watchdog timer resets outputs on controller failure
Deployment efficiency:
Plug-and-play replacement without drive shutdown (hot-swap)
DIN-rail mounting with tool-less backplane connection
Application Field
The ABB SDCS-CON-4 excels in drive-intensive industries:
Metals Processing: Converts load cell signals (mV/V) for rolling mill tension control
Marine & Offshore: Interfaces thruster feedback sensors in DP vessel propulsion drives
Mining: Isolates encoder signals from conveyor belt drives in high-EMC environments
Power Generation: Bridges exciter field signals with hydro turbine governors
Cement Production: Processes pyrometer analog inputs for kiln drive temperature control
Related Products
SDCS-IOB-1: I/O base unit for mounting SDCS-CON-4 modules
ACS880: Drive controller with native SDCS-IOB integration
SDCS-POW-1A: Power supply for SDCS backplane
SDCS-DIG-8: 8-channel digital I/O expansion module
SDCS-ANF-2: Analog filter module for noisy environments
Drive Composer Pro: Configuration software
SDCS-FBG-2: Fiber-optic bus gateway for cabinet extensions
ABB SDCS-CON-4
Installation and Maintenance
Pre-installation preparation: Verify SDCS-IOB-1 slot compatibility and firmware version match. Pre-configure channel types in Drive Composer Pro. Use shielded twisted-pair cables with drain wires grounded at one end.
Maintenance recommendations: Perform annual zero/span calibration. Monitor channel diagnostics via drive HMI. Replace modules after LED status indicates degradation. Clean optical connectors with alcohol wipes during shutdowns.
