Description

The GE DS200DCFBG1BLC is a critical Drive Control Feedback Board within GE’s Mark V series turbine management systems, engineered for precision monitoring and protection in high-power industrial drives. This module serves as the neural interface between drive controllers and feedback devices, converting analog/digital signals from encoders and tachometers into actionable data for turbine speed regulation. Designed for the Mark V platform—GE’s flagship solution for gas/steam turbine control—the DS200DCFBG1BLC ensures sub-millisecond response times to prevent overspeed events in 10MW+ power generation units. Its dual-channel architecture provides redundant signal processing, enabling continuous operation even during sensor failures. The board’s galvanic isolation (2.5kV AC) eliminates ground loop interference in electrically noisy environments like compressor stations. For plant engineers, deploying the GE DS200DCFBG1BLC translates to enhanced turbine safety margins, reduced false tripping, and compliance with API 670 machinery protection standards.

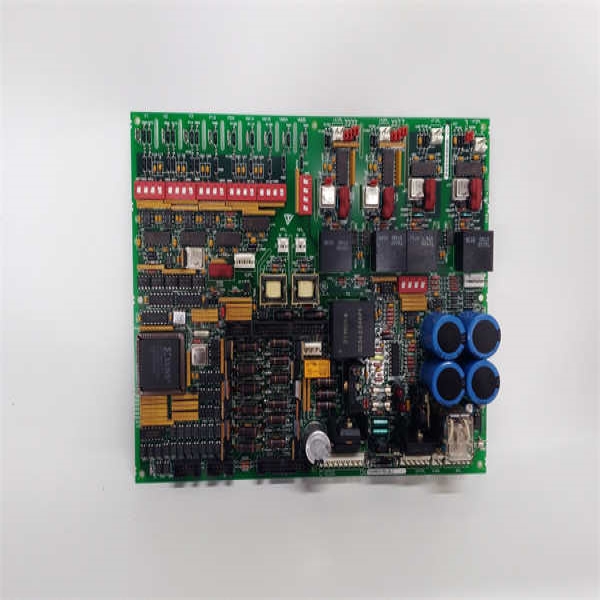

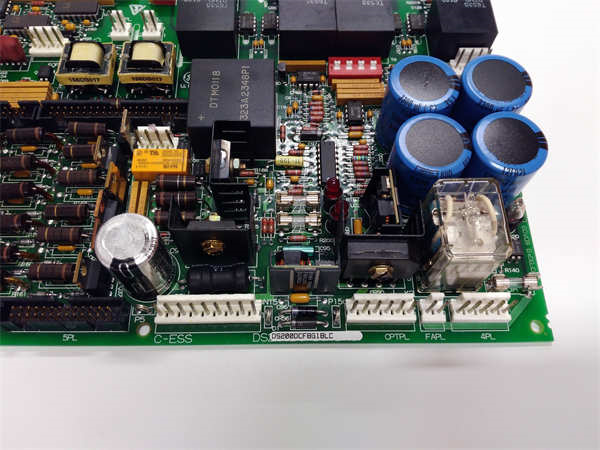

GE DS200DCFBG1BLC

Technical Specifications

Main Features and Advantages

The GE DS200DCFBG1BLC delivers unmatched signal integrity through adaptive noise suppression. Its dual-diode input protection clamps transient voltages up to 60V, safeguarding against lightning-induced surges in outdoor generator applications. Each channel incorporates 16-bit ADCs with programmable filtering, automatically compensating for cable capacitance up to 100nF—essential for long-run sensor cabling in wind farms.

Fault resilience: Redundant channel architecture allows automatic switchover during sensor degradation, triggering alerts without drive shutdown. The board’s solid-state isolation barriers exceed IEEE C37.90 surge withstand standards, preventing cascading failures during grid disturbances. Configuration flexibility is achieved via Mark V toolbox software, enabling custom scaling for magnetic pickups or optical encoders without hardware changes. Compared to legacy boards, the DS200DCFBG1BLC reduces velocity measurement error by 73% through temperature-compensated clock oscillators. Its conformal-coated PCB withstands 95% non-condensing humidity, making it suitable for coastal power stations.

Application Field

The GE DS200DCFBG1BLC is indispensable in critical speed monitoring scenarios across energy infrastructure. In combined-cycle power plants, it interfaces with GE Frame 9FA gas turbine governors, providing real-time shaft speed data for load shedding during grid faults. For hydroelectric installations, the board processes signals from submerged Kaplan turbine encoders, withstanding constant vibration in generator pits.

Oil & gas platforms utilize the DS200DCFBG1BLC for compressor anti-surge control, where its -40°C cold-start capability ensures reliability in Arctic LNG trains. Steel mills deploy it on rolling mill DC drives to detect roll slippage through microsecond-level phase comparison. In marine propulsion, the module’s salt fog resistance (per ASTM B117) protects azimuth thruster controls on offshore vessels. Renewable applications include synchronization of 5MW wind turbine doubly-fed induction generators, where voltage-immune signal transmission prevents pitch system malfunctions during storms.

Related Products

DS200DCFBG1AAA: Base version without extended temperature range

DS200SDCCG1AFG: Excitation control module for companion operation

DS200TCQCG1BHB: I/O termination board for sensor interfacing

IS200DSPXH1DBC: DSP processor module for signal analysis

DS200LDCCH1AGA: Load control card for turbine sequencing

DS200DCFBG1BLA: 85°C variant for moderated environments

IS215UCVEH2AE: Communication gateway for Mark VIe migration

DS200PCCAG1ADD: Power supply module for system redundancy

GE DS200DCFBG1BLC

Installation and Maintenance

Pre-installation preparation: Discharge static by grounding workstations to 1MΩ resistance. Verify backplane voltage stability (23.5–24.5V DC) before inserting the DS200DCFBG1BLC. Use GE-specified extraction tool (FA-T18) to avoid connector damage.
