Description

The ABB DSQC658 3HAC025779-001 is a high-density digital I/O module engineered for ABB’s IRC5 robotic control systems, serving as the critical interface between controllers and industrial peripherals in automated workcells. Designed for flexible integration, this module provides 16 configurable channels (sink/source selectable) to manage sensors, grippers, conveyors, and safety devices with ≤1ms response times. As part of ABB’s S4C+/IRC5 platform, the DSQC658 features dual-processor architecture for simultaneous signal processing and diagnostic supervision, ensuring uninterrupted operation in automotive welding or electronics assembly lines. Its DeviceNet™ connectivity enables seamless integration with PLC networks, while integrated short-circuit protection (4A per channel) prevents cascade failures during electrical faults. The ABB DSQC658 3HAC025779-001 reduces cabling complexity by 60% through centralized I/O management, directly supporting SafeMove monitored stops via dedicated safety channels compliant with ISO 13849-1 PL e.

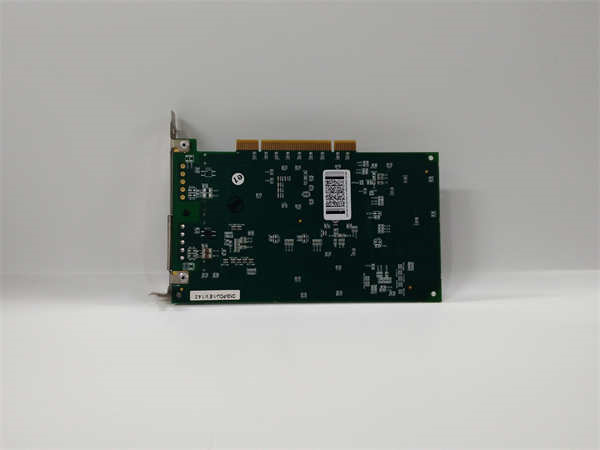

ABB DSQC658 3HAC025779-001

Technical Specifications

Main Features and Advantages

Robust signal management: Each channel incorporates independent opto-isolation and transient voltage suppressors, surviving ±4kV ESD strikes and 1kV/μs common-mode noise—essential near welding transformers. Configurable sink/source operation eliminates external conversion relays, saving panel space.

Integrated safety: Dedicated safety channels (13–16) support configurable SS1 stops with dual-path monitoring, enabling Category 3 safety circuits without additional relays. The module’s watchdog timer initiates safe-state fallback within 15ms of communication loss.

Diagnostic intelligence: Real-time channel load monitoring detects failing solenoids or cable degradation before failure. DeviceNet™ explicit messaging provides detailed fault logs (overload count, cycle history) to PLCs for predictive maintenance.

Deployment flexibility: Auto-baud DeviceNet™ negotiation simplifies replacement, while removable terminal blocks (ABB p/n 3HAC15531-1) enable rapid field servicing. Conformal coating resists flux vapors in electronics assembly. Backward-compatible with S4C+ controllers using adapter 3HAC0378-1.

Application Field

The ABB DSQC658 3HAC025779-001 orchestrates peripheral control across manufacturing automation:

Automotive body shops: Manages weld gun water cooling valves and tip dressers on IRB 6700 spot welding stations

Machine tending: Interfaces with CNC door interlocks and pallet conveyors via DeviceNet™

Assembly lines: Controls screwdriver torque validation signals and vision system triggers

Foundries: Operates die-lubricant spray nozzles in die-casting cells (dust-resistant design)

Packaging: Synchronizes vacuum cup manifolds with IRB 360 FlexPicker robots

Safety integration: Monitors light curtains and emergency stops in collaborative workcells

Pharmaceutical: Hygienic-compliant I/O for vial capping stations in cleanrooms

ABB DSQC658 3HAC025779-001

Related Products

DSQC652: 8-channel compact I/O variant

3HAC15531-1: Replacement terminal block kit

DSQC679: PROFIBUS DP-V1 communication adapter

3HAC0378-1: S4C+ to IRC5 migration adapter

DSQC1030: SafeMove controller for expanded safety functions

3HAC14414-1: Axis computer for motion coordination

3HAC1737-1: Teach pendant for I/O configuration

PP885: Power supply unit for IRC5 cabinets

Installation and Maintenance

Pre-installation preparation: Verify DeviceNet™ termination (121Ω resistor installed at segment ends). Discharge static via grounded wrist strap before handling. Configure node address via rotary switches (0–63) prior to power-up.

Maintenance recommendations: Monthly inspection of terminal tightness (0.4 N·m torque). Monitor “Contact Wear” parameter in RobotStudio®; >500k cycles triggers contact replacement. Clean optical DeviceNet™ connectors annually with IPA. Replace every 7 years in high-cycling applications (>1M operations). For channel faults, use ABB test harness 3HAC0420-001 to isolate field issues. Never exceed 30V DC input to avoid processor damage.
