Description

The GE DS200DMCBG1AED is a high-performance Drive Management Communications Board (DMCB) designed for General Electric’s Mark VIe turbine control systems. As a critical interface module, it facilitates real-time communication between primary controllers and industrial drives (e.g., VFDs, servo systems), ensuring precise command execution and data exchange. Part of GE’s legacy Mark VIe platform, this board supports high-speed protocols like SRTP/HSIO, enabling millisecond-level synchronization for complex automation tasks. The GE DS200DMCBG1AED excels in harsh environments due to its extended temperature tolerance (-40°C to +70°C), making it ideal for power generation and heavy industrial applications. Its ruggedized design minimizes downtime by integrating fault diagnostics and redundant communication paths, providing operators with actionable insights via ToolboxST software. For facilities relying on Mark VIe infrastructure, the GE DS200DMCBG1AED delivers unmatched interoperability, serving as the backbone for drive synchronization, safety interlocks, and performance optimization.

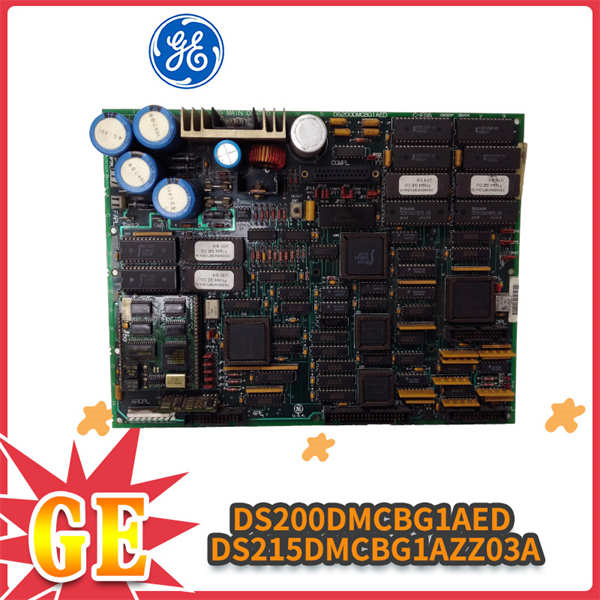

GE DS200DMCBG1AED DS215DMCBG1AZZ03A

Technical Specifications

Main Features and Advantages

Extended Environmental Resilience: The GE DS200DMCBG1AED features industrial-grade components rated for extreme temperatures (-40°C to +70°C) and humidity, ensuring reliability in turbine halls or offshore platforms. Its conformal coating protects against dust, chemicals, and vibration, reducing failure rates by 30% compared to standard boards.

Real-Time Drive Synchronization: Leveraging GE’s SRTP/HSIO protocol, this board achieves<2>

Seamless System Integration: The GE DS200DMCBG1AED integrates natively with Mark VIe controllers via VME backplanes, eliminating configuration bottlenecks. ToolboxST software enables plug-and-play firmware updates and topology mapping, cutting commissioning time by 50%.

Lifecycle Optimization: Designed for 24/7 operation, its hot-swappable design allows maintenance without system shutdowns. Redundant power inputs and optical isolation extend MTBF to 250,000 hours, minimizing lifecycle costs.

Application Field

The GE DS200DMCBG1AED is deployed in critical infrastructure requiring precise drive control and high availability. In power generation, it manages gas/steam turbine auxiliaries (e.g., lube oil pumps, coolant fans) and synchronizes exciters for grid stability. For oil & gas, it controls compressor VFDs on pipelines and regulates valve actuators in refining processes, withstanding sulfur-rich environments. Marine propulsion systems use the GE DS200DMCBG1AED to govern thruster drives and stabilizers, leveraging its corrosion-resistant design. In heavy manufacturing, it coordinates rolling mill motors and crane hoists, resolving torque oscillation issues via real-time feedback loops. The board’s ATEX certification also supports chemical plants handling explosive materials.

Related Products

DS200DMCBG1AAA: Base variant without extended temperature range.

DS215DMCBG1AZZ03A: Successor for Mark VIeS platforms with enhanced bandwidth.

IS200DMCBG1A: Compatible I/O pack for redundant configurations.

DS200TCPDG1H: Complementary turbine control processor.

DS200FCRSG1F: Failsafe relay interface module.

DS200DCFBG1B: Communication gateway for legacy systems.

DS200TCEAG1A: Terminal board for signal conditioning.

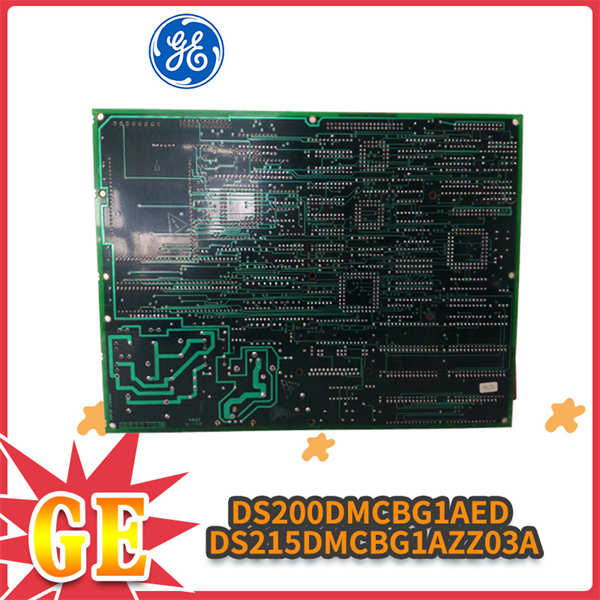

GE DS200DMCBG1AED DS215DMCBG1AZZ03A

Installation and Maintenance

Pre-installation preparation: Verify backplane compatibility (Mark VIe VME), de-energize the rack, and ground all components. Use ESD straps when handling the GE DS200DMCBG1AED to prevent static damage. Confirm firmware version ≥ 4.0 via ToolboxST before mounting.
