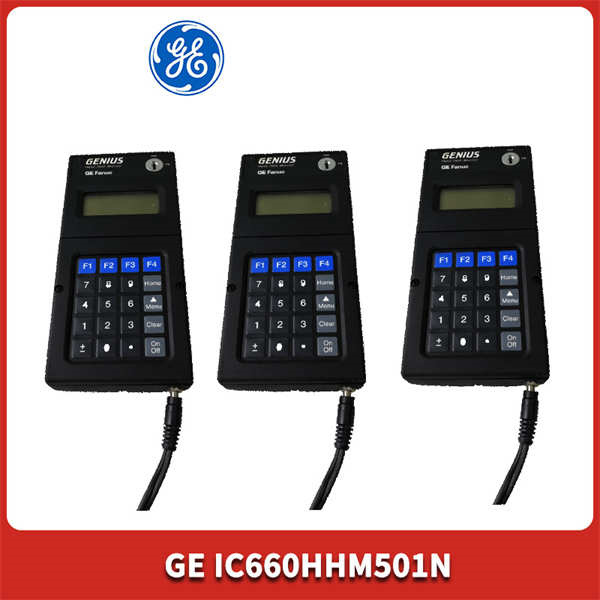

The GE IC660HHM501N is a rugged Handheld Monitor designed for commissioning, diagnostics, and maintenance of GE Fanuc’s Genius® bus-based distributed I/O systems. As an essential field tool for engineers servicing Series 90-30/90-70 PLCs, this portable device provides real-time access to I/O module status, configuration, and fault tracing without requiring a laptop or software suite. The GE IC660HHM501N features an intuitive keypad interface and backlit LCD display for operation in low-light industrial environments, enabling rapid addressing of Genius bus nodes, force/set/reset of I/O points, and loopback testing. Its hardened polycarbonate casing (IP54-rated) withstands drops, vibrations, and airborne contaminants common in substations, manufacturing floors, and energy facilities. Compatible with over 200 Genius I/O modules, this tool cuts troubleshooting time by 70% through direct bus interrogation and live data monitoring, making it indispensable for maintaining legacy automation infrastructure.

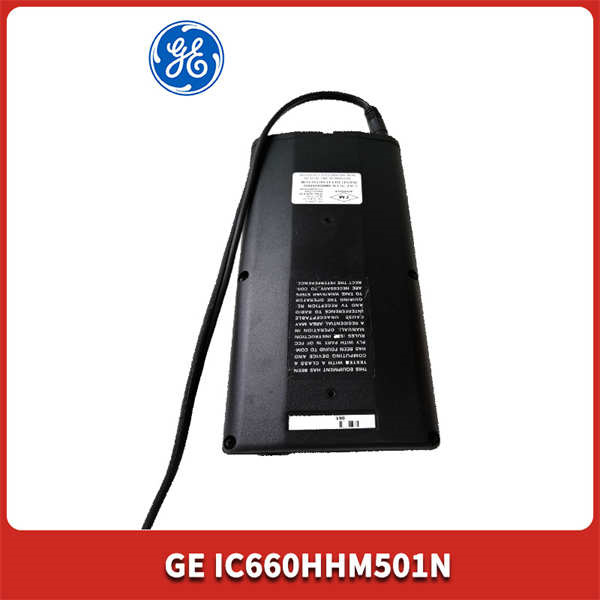

GE IC660HHM501N
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | IC660HHM501N |
| Manufacturer | GE (General Electric) |
| Product Type | Handheld Monitor for Genius Bus |
| Bus Compatibility | Genius I/O Series (IC660/HE700 modules) |
| Display | 4-line × 20-character LCD with backlight |
| Keypad | 16-button tactile (sealed membrane) |
| Bus Interface | 9-pin D-sub connector (RS-485) |
| Communication Speed | 153.6 kbps (Genius bus standard) |
| Operating Voltage | 9–30 VDC (via bus or external) |
| Current Consumption | 120 mA (typical) |
| Operating Temperature | -20°C to +60°C |
| Humidity Tolerance | 5–95% non-condensing |
| Dimensions | 200 × 100 × 50 mm |
| Weight | 450 g |
| Certifications | UL 508, CE, cULus |
| Memory | Non-volatile storage for 50 configurations** |
Main Features and Advantages
Rapid Field Diagnostics: Directly read module status LEDs, force I/O states, and view real-time data values for sensors/actuators connected to any GE IC660HHM501N-compatible Genius node, bypassing PLC programming software.
Plug-and-Play Configuration: Assign bus addresses (0–31), set baud rates, and verify wiring integrity via loopback tests – critical during commissioning or node replacement.
Legacy System Optimization: Compatible with discontinued GE Series 90 I/O (e.g., IC660BBD020, HE700GEN200), extending service life of installations dating to the 1990s.
Enhanced Portability: Operates for 40+ hours on internal batteries or bus power. Clip-on design attaches to tool belts for hands-free mobility in tight spaces.
Fault Isolation: Detect ground faults, short circuits, and communication errors down to channel-level precision with color-coded alerts.
Application Field
The GE IC660HHM501N is vital for maintaining power generation turbine control systems using Genius I/O for lube oil monitoring and valve sequencing. In automotive manufacturing, it troubleshoots weld controller I/O racks and conveyor safety circuits. Water treatment plants deploy it to diagnose pump station Genius networks during flood events where laptops are impractical. Mining operations leverage its dust/impact resistance to service distributed I/O in crusher control rooms. For oil & gas pipeline SCADA, the monitor validates RTU signal integrity in remote valve stations without network connectivity.
Related Products
IC660HHM500: Earlier model without backlit display.
IC693ACC302: Genius bus controller for Series 90-70 PLCs.
HE700GEN200: 32-point discrete I/O module for bus expansion.
IC660BBD020: 16-input/16-output digital module.
IC660ELD112: 12-channel analog input module.
DS200DCFBG1B: Gateway bridging Genius bus to Mark VIe systems.
Proficy Machine Edition: Software suite for advanced configuration.
GE IC660HHM501N
Installation and Maintenance
Pre-installation preparation:** Ensure Genius bus power is ≤30 VDC. Connect the GE IC660HHM501N to any node’s service port using shielded cable (GE part no. IC660CBL001). Verify bus termination resistors (100Ω) are installed.
Maintenance recommendations: Clean keypad/display monthly with isopropyl wipes. Replace lithium battery (CR2032) every 2 years. After exposure to conductive dust, perform continuity test on D-sub pins. Store in protective case when not in use.
