Description

The GE Fanuc IC698ETM001 is a high-performance Ethernet interface module designed for the RX7i PACSystems platform, delivering robust machine-level connectivity for industrial automation networks. This versatile module enables seamless integration of PLCs with HMIs, SCADA systems, and enterprise networks through dual 10/100 Mbps Ethernet ports. As a critical component in GE’s RX7i family, the IC698ETM001 supports both SRTP (Serial Real-Time Protocol) and Modbus TCP protocols, allowing simultaneous data exchange with multiple hosts while maintaining deterministic control performance. Its ruggedized construction withstands harsh industrial environments, featuring conformal-coated circuitry for moisture/dust resistance and -40°C to +85°C operational range.

Engineered for high availability, the IC698ETM001 enables ring topology configurations via integrated switch technology, reducing cabling costs and improving network resilience. The module’s non-volatile memory retains configuration settings during power cycles, while dual IP address support permits flexible network segmentation. For engineers modernizing legacy systems, the GE Fanuc IC698ETM001 bridges RX7i controllers to Industry 4.0 architectures without compromising real-time control integrity.

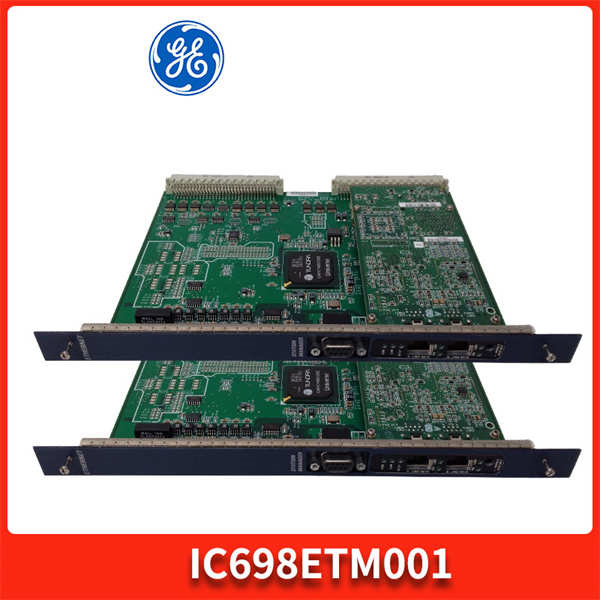

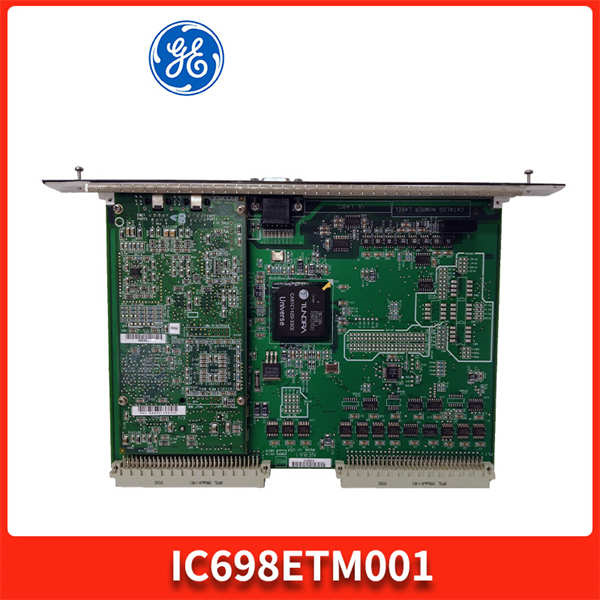

GE IC698ETM001

Technical Specifications

Main Features and Advantages

Network Resilience: Dual ports with integrated layer-2 switching enable ring topologies (using RSTP) without external switches, reducing failure points. The IC698ETM001’s<10>

Cybersecurity Hardening: Features IP address filtering, password-protected configuration, and disabled unused protocols by default. Conforms to IEC 62443 standards for industrial network security.

Configuration Flexibility: Stores settings in non-volatile memory with automatic fallback on corruption. Supports simultaneous SRTP (for GE Proficy HMI) and Modbus TCP (third-party integration). Dual IP addresses allow segregation of control/enterprise traffic.

Seamless Integration: Hot-swappable design minimizes downtime during maintenance. Auto-detects RX7i rack position without jumpers. Compatible with all RX7i CPUs including IC698CRE040-HN.

Application Field

The GE Fanuc IC698ETM001 excels in distributed control systems requiring reliable Ethernet connectivity. In manufacturing, it links RX7i PLCs to robotic cells (Fanuc, ABB) and MES for real-time production tracking. Power plants utilize it for turbine control communication between Mark VIe systems and RX7i-based BOP controllers. For water treatment facilities, the module enables remote SCADA monitoring via Modbus TCP across pump stations.

Oil & gas applications leverage its Class I Div 2 rating for Ethernet connectivity in hazardous areas like compressor skids. In transportation, the IC698ETM001 integrates baggage handling PLCs with airport management networks. Its extended temperature range suits steel mill rolling lines and cement kiln controls where ambient heat exceeds 60°C.

Related Products

IC698ETM002: Gigabit Ethernet module with 3 ports

IC698CPE010: RX7i Entry CPU with embedded Ethernet

IC698CMX300: Profibus DP-V1 master module

IC698CHS117: 17-slot VME64x rack

IC698ACC719: Backplane adapter for legacy I/O

IC694ETM001: VersaMax Ethernet module (remote I/O)

DS3800NETS001: Turbine control Ethernet card (Mark VIe)

Proficy HMI/SCADA: Visualization software for IC698ETM001 data

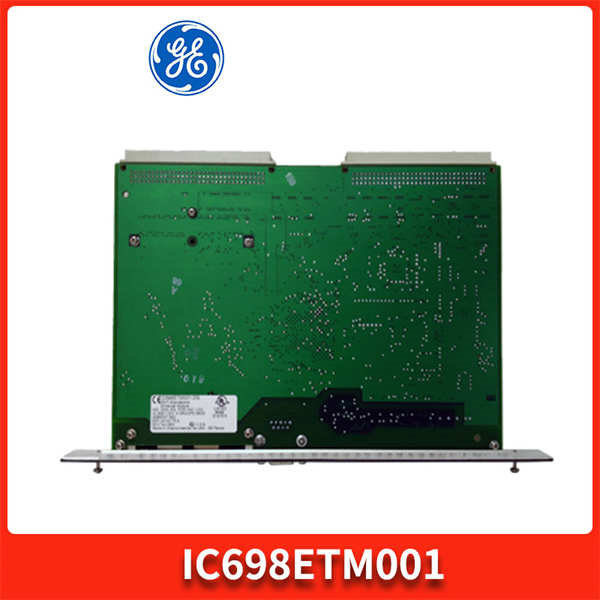

GE IC698ETM001

Installation and Maintenance

Pre-installation preparation: Verify rack compatibility (RX7i series VME64x chassis). Assign unique IP addresses via Proficy Machine Edition software prior to physical installation. Ensure CAT5e/6 shielded cables with proper gland fittings for EMI protection in noisy environments.

Maintenance recommendations: Monitor port status LEDs monthly for link/activity anomalies. Update firmware during planned outages to patch vulnerabilities. Use port mirroring for traffic analysis without disrupting operations. Clean RJ45 contacts annually with industrial-grade contact cleaner.
