Description

The GE IS200VSVOH1B is a high-precision servo valve control module designed for critical motion applications within GE’s Mark VIe turbine management systems. Engineered specifically for hydraulic actuation in gas/steam turbine fuel and steam admission systems, this module delivers ±10 VDC analog output signals with 16-bit resolution to precisely position servo valves controlling fuel flow or inlet guide vanes. As part of GE’s Speedtronic™ series, the IS200VSVOH1B integrates advanced PID loop processing and valve linearization algorithms directly on-module, reducing controller loading while achieving<0>

The module’s robust construction includes MIL-spec connectors and conformal-coated circuitry, rated for Class I Div 2 hazardous locations and extreme vibration (5G @ 10–500 Hz). Real-time diagnostics monitor valve current, position feedback discrepancies, and coil impedance drift, enabling predictive maintenance before control degradation occurs. For combined cycle plants and aero-derivative turbines requiring nanosecond-level response to load changes, the GE IS200VSVOH1B ensures precise combustion control with SIL 2/3 functional safety compliance.

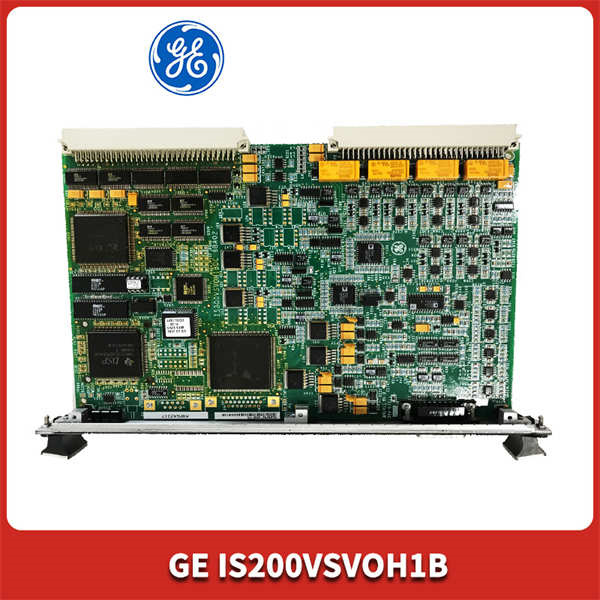

GE IS200VSVOH1B

Technical Specifications

Main Features and Advantages

Precision Motion Control: Onboard 32-bit DSP executes PID loops with adaptive gain scheduling, compensating for valve hysteresis and nonlinear flow characteristics. Auto-calibration routines map valve deadband during commissioning. The IS200VSVOH1B’s 16-bit DACs ensure <±0.1% setpoint tracking accuracy under load disturbances.

Safety Integration: Dual-channel architecture supports 2oo3 voting when paired with IS200VSVOH1A modules. Continuous diagnostics detect open/short circuits and valve stiction via current waveform analysis. SIL 3 hardware design prevents unsafe outputs during single faults.

Extreme Environment Operation: Gold-plated contacts resist sulfide corrosion in sour gas applications. Conformal coating withstands 95% humidity without degradation. -40°C cold start capability ensures Arctic reliability.

Maintenance Optimization: Hot-swappable design enables replacement without turbine shutdown. Valve performance trending via ToolboxST® software predicts maintenance needs. Auto-tuning adapts to wear-induced changes in valve response.

Application Field

The GE IS200VSVOH1B dominates critical turbine control applications:

Gas Turbine Fuel Systems: Controls liquid/gas fuel metering valves for DLN combustion systems

Steam Turbines: Positions governor valves and intercept valves in EH systems

Compressor Anti-Surge: Modulates recycle valves during transient operations

Hydroelectric: Governs wicket gate servomotors

Aerospace Test Rigs: Precision hydraulic actuation for engine component testing

In offshore platforms, its ATEX certification enables deployment on turbine skids handling flammable fluids. For nuclear plants, EMI immunity (10V/m @ 1 GHz) prevents spurious movements from RF noise.

Related Products

IS200VSVOH1A: Non-redundant version

IS200VCRCH1B: Servo valve coil driver module

TCEH-130C: LVDT position sensor interface

DS200VCMAG1A: Legacy servo control upgrade

IC698ALG442: RX7i analog output for balance-of-plant

IS215UCVEH2AE: Mark VIe controller host

HRAI-11: Hydraulic valve interface terminal board

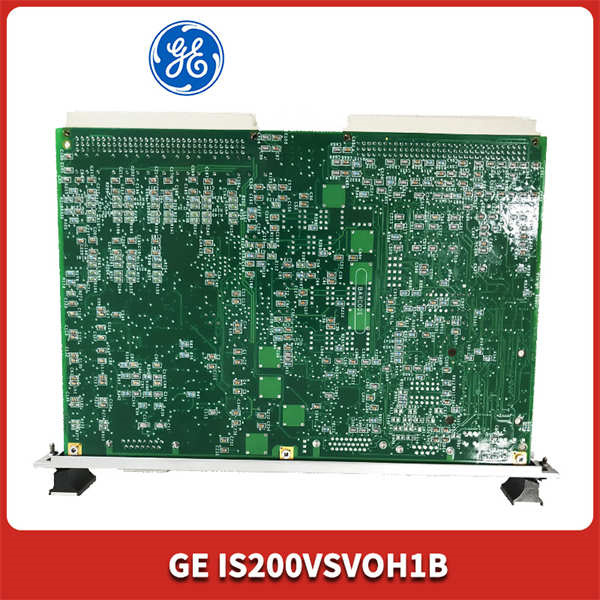

GE IS200VSVOH1B

Installation and Maintenance

Pre-installation preparation: Verify Mark VIe rack slot compatibility (requires adjacent position sensor module). Calibrate LVDT sensors before connecting to IS200VSVOH1B. Use twisted-pair shielded cables (Belden 8761/equivalent) with drain wires grounded at rack. Maintain 150mm separation from power cables.

Maintenance recommendations: Perform valve step-response tests quarterly via ToolboxST®. Measure coil resistance annually (±10% baseline). Recalibrate after valve replacement using auto-tuning function. Replace modules after 7 years in high-sulfur environments.
