Description

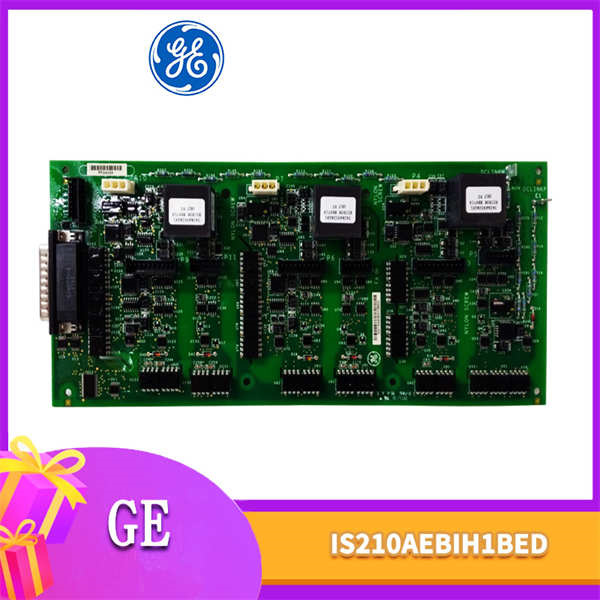

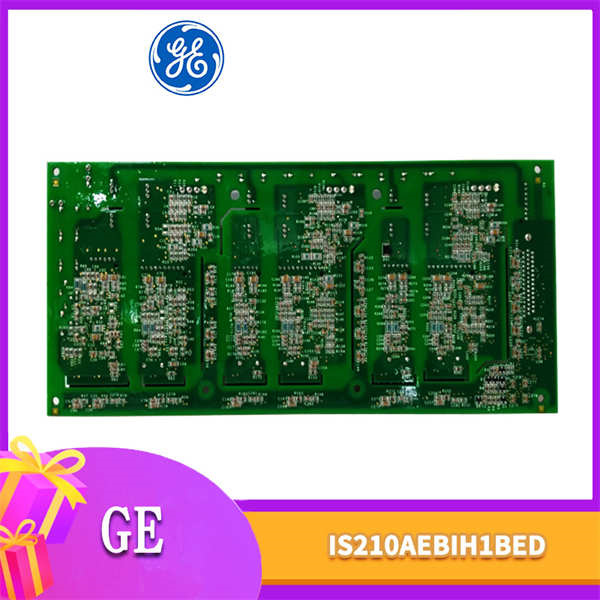

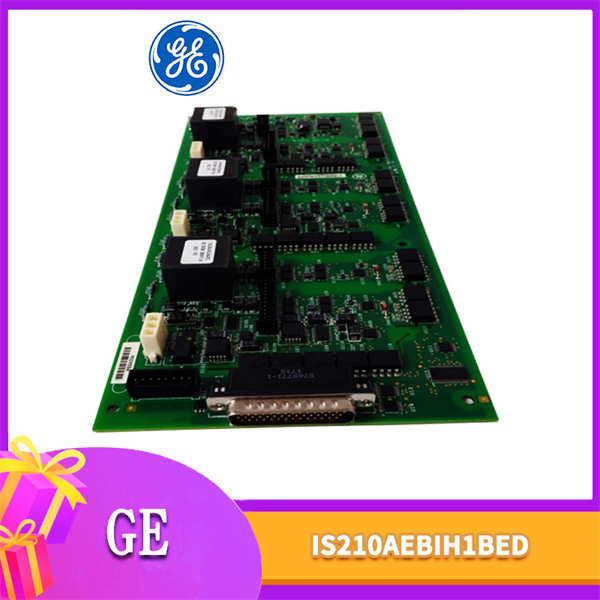

The GE IS210AEBIH1BED is a high-density terminal board engineered for precision analog signal conditioning in GE’s Mark VIe turbine control systems. Designed as the critical interface between field sensors and analog input modules like the IS200AEADH4ADA, this board provides 32-point screw terminal connectivity with galvanic isolation and signal conditioning for thermocouples, RTDs, and millivolt/current inputs. Its robust design features gold-plated contacts and ceramic terminal blocks rated for 300V isolation between channels, eliminating ground loops in electrically noisy turbine environments. The IS210AEBIH1BED integrates seamlessly with Mark VIe racks via direct-mount backplane connectors, enabling<1>

Optimized for extreme conditions, the board’s conformal-coated PCB withstands 95% humidity and corrosive atmospheres while maintaining Class I Div 2 / ATEX Zone 2 compliance. Integrated cold-junction compensation (CJC) sensors ensure ±0.25°C thermocouple accuracy across -40°C to +70°C ambient ranges. For combined-cycle plants requiring uncompromised signal integrity from combustion sensors and bearing RTDs, the GE IS210AEBIH1BED delivers laboratory-grade precision in industrial packaging.

GE IS210AEBIH1BED

Technical Specifications

Main Features and Advantages

Signal Integrity Assurance: Gold-plated terminals prevent oxidation-induced resistance drift, maintaining<0>IS210AEBIH1BED’s ceramic blocks eliminate dielectric absorption errors in high-impedance circuits.

Safety Compliance: Integrated CJC sensors compensate for ambient temperature fluctuations without external probes. 300V isolation withstands ground potential differences in turbine generator windings. ATEX certification allows installation in hazardous gas environments.

Maintenance Optimization: Color-coded terminals accelerate wiring validation. Field-replaceable blocks enable single-point replacement without board removal. Compatible with TCCE-032 protective covers for dusty environments.

Scalable Architecture: Daisy-chain capability links multiple boards to a single IS200AEADH4ADA module. ToolboxST® auto-detects board configuration during commissioning.

Application Field

The GE IS210AEBIH1BED is essential in energy infrastructure:

Gas Turbines: Interfaces 200+ thermocouples in DLN 2.6+ combustion systems

Hydroelectric Plants: Connects wicket gate position LVDTs and bearing RTDs

Compressor Stations: Conditions cryogenic temperature sensors in LNG liquefaction

Steam Cycles: Routes superheater thermocouples in coal/nuclear plants

Industrial Drives: Manages motor winding RTDs in steel mill rolling mills

Offshore platforms leverage its salt fog resistance (IEC 60068-2-52) for gas compressor skid monitoring. In geothermal plants, it withstands H₂S corrosion while interfacing wellhead sensors.

Related Products

IS200AEADH4ADA: Analog input module (direct interface)

IS210PSVOH1B: Servo valve terminal board

TREA-161A: 16-point terminal board for legacy compatibility

IS200TBAIH1C: Thermocouple break alarm interface

DS200TCEAG1ADC: Retrofit kit for legacy Speedtronic™

IC698ALG442: RX7i analog module for balance-of-plant

HRAI-11: Hydraulic valve terminal board

GE IS210AEBIH1BED

Installation and Maintenance

Pre-installation preparation: Verify mechanical compatibility with host module (IS200AEADH4ADA). Pre-wire terminals before rack mounting. Use Belden 9501/equivalent shielded cables with drain wires grounded at one end. Maintain 50mm clearance from power conduits.

Maintenance recommendations: Perform terminal resistance checks annually (<50m>
