Description

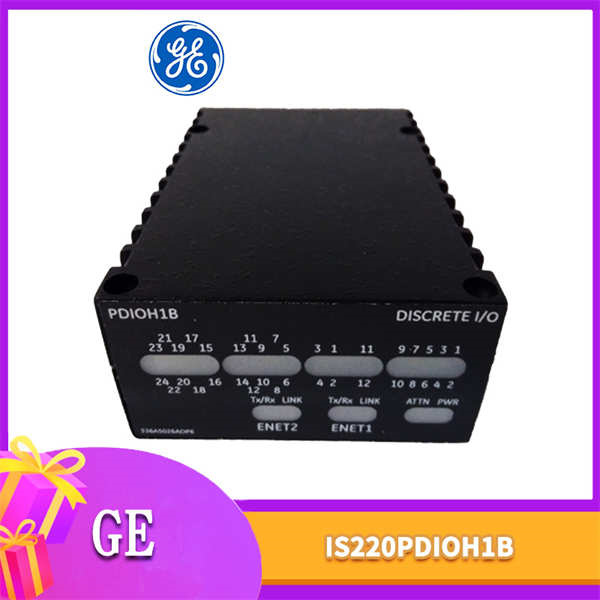

The GE IS220PDIOH1B is a high-density Profibus DP-V1 slave module engineered for GE’s Mark VIe turbine control systems, providing integrated digital input/output (I/O) functionality in critical power generation environments. Designed for SIL 2 safety applications, this module combines 16 discrete inputs and 16 discrete outputs in a single unit, enabling real-time control of actuators, solenoid valves, and limit switches via Profibus networks at speeds up to 12 Mbps. The IS220PDIOH1B features galvanic isolation (1500 VAC) between field circuits and the Mark VIe backplane, eliminating ground loops in electrically noisy turbine halls. Its dual-port architecture supports linear, star, or tree topologies without external repeaters, simplifying installation for gas/steam turbine auxiliary systems like fuel skids and lube oil consoles.

Optimized for harsh conditions, the module’s conformal-coated PCB and corrosion-resistant housing meet Class I Div 2 / ATEX Zone 2 requirements. Integrated diagnostics monitor channel status, bus load, and signal integrity through ToolboxST® software, enabling predictive maintenance. For combined-cycle plants requiring deterministic I/O response, the GE IS220PDIOH1B delivers<1>

Technical Specifications

Main Features and Advantages

Integrated I/O Flexibility: Combines 16 inputs (accepting 24VDC sinking/sourcing signals) and 16 outputs (0.5A sourcing) in one module, reducing rack space. Inputs feature<100>IS220PDIOH1B supports mixed I/O configurations via GSD file customization.

Deterministic Performance: Hardware-level Profibus ASIC achieves<1>

Robust Diagnostics: Per-channel LEDs indicate field wiring faults. Continuous monitoring of bus load, signal quality, and slave state via Mark VIe HMI. Dual watchdogs validate processor integrity every scan cycle.

Deployment Versatility: Hot-swappable design enables replacement during turbine operation. Auto-baud detection and integrated termination simplify commissioning. Compatible with IS215UCVEH2AE controllers and third-party DP masters.

Application Field

The GE IS220PDIOH1B is essential for distributed turbine control:

Fuel Systems: Controls gas shutoff valves and monitors flame detectors

Lube Oil Consoles: Manages pump starters and pressure switch inputs

Cooling Water: Interfaces level switches and controls butterfly valves

Exhaust Dampers: Positions actuators with limit switch feedback

Balance-of-Plant: Integrates MCCs and conveyor systems in coal-fired plants

In offshore platforms, its ATEX rating allows deployment on gas compressor skids. Steel mills leverage EMI immunity (20 V/m @ 1 GHz) near arc furnaces for motor control.

Related Products

IS215UCVEH2AE: Mark VIe controller host

IS220PDIAH1B: Profibus DP-V1 slave (analog-focused)

IS220PPDAH1B: Profibus DP master module

DS200PDIOG1B: Legacy Profibus I/O upgrade

IC698ETM001: RX7i Ethernet module for BOP integration

IS220PDOAH1A: Digital output-only module

TREH-102C: Profibus PA segment coupler

Installation and Maintenance

Pre-installation preparation: Verify rack slot compatibility (requires VME P1 connector). Set unique Profibus address via rotary switches. Use shielded Type A cable with 360° gland grounding. Maintain >100mm separation from power cables.

Maintenance recommendations: Monitor “Bus Health” metrics monthly in ToolboxST®. Clean D-sub connectors annually with isopropyl alcohol. Test output loads quarterly under simulated faults. Update GSD files after master firmware upgrades.
