Description

The GE UR8AH is an 8-channel digital input module engineered for General Electric’s Multilin UR-series protective relaying systems. Designed as a high-density signal acquisition interface, this module converts field device statuses (e.g., breaker contacts, selector switches) into logic-level signals for UR-series relays like the F650 or G60. The GE UR8AH operates at 125V DC nominal voltage with 4kV galvanic isolation per channel, enabling reliable monitoring in electrically noisy substation environments. Its plug-and-play design integrates directly into UR rack systems via the rear communication bus, eliminating external wiring for module-to-processor connections.

Featuring a compact 1/8 rack width, the GE UR8AH maximizes panel space efficiency while supporting critical functions such as trip circuit monitoring, lockout relay status detection, and external interlock verification. The module incorporates patented contact wetting technology that maintains stable input detection down to 8V DC (60% below nominal), preventing false signals during voltage sags. With built-in channel-by-channel LED diagnostics and a 1ms event timestamp resolution, the GE UR8AH provides deterministic state tracking for sequence-of-events (SOE) analysis in fault investigations.

GE UR8AH

Technical Specifications

Main Features and Advantages

The GE UR8AH excels in harsh electrical environments through its triple-barrier isolation architecture: reinforced insulation between field circuits, internal logic, and backplane bus. Each channel integrates adaptive debounce filtering (0–15ms adjustable) to reject contact bounce transients in switchgear applications. For critical monitoring, channels 1–4 support voltage supervision – detecting wire breakage by measuring loop resistance >50kΩ.

Hot-swap capability allows replacement without rack power-down, while non-volatile memory retains configuration during outages. The module’s 94V-0 flame-retardant housing withstands arc-flash events exceeding 40kA/0.5s. Compared to predecessors, the GE UR8AH reduces heat generation by 45% through optimized switching regulators, enabling adjacent module stacking at 55°C ambient. For cybersecurity, firmware supports signed updates and role-based access via EnerVista software.

Application Field

The GE UR8AH is deployed in power infrastructure requiring precise status monitoring. In transmission substations, it tracks 125V DC control circuits for breaker fail initiation and autorecloser blocking. Generation plants use it to monitor turbine auxiliaries (lube oil pumps, cooling valves) with SOE resolution for root-cause analysis. For industrial facilities, the module interfaces with safety relays in steel mill roller drives, where contact chatter detection prevents production line halts.

Renewable energy applications include solar farm combiner box status monitoring and wind turbine pitch control feedback. In rail traction power, the GE UR8AH verifies overhead line section isolator positions, leveraging its -40°C cold-start capability. Mining deployments utilize its conformal-coated PCB version (UR8AH-CC) for corrosive atmosphere operation. The module also serves nuclear Class 1E systems, meeting IEEE 323 seismic qualifications.

Related Products

GE UR6AH: 6-channel counterpart for space-limited cabinets

GE F650: Feeder protection relay with UR8AH compatibility

GE B30: UR base unit for module mounting

GE UR7AI: Analog input companion module

GE UR5DO: 5-channel digital output module

GE C60: Multifunction protection controller

GE IS220U series: Signal conditioners for non-UR systems

GE EnerVista UR：Configuration software suite

GE T9681：Test adapter for channel simulation

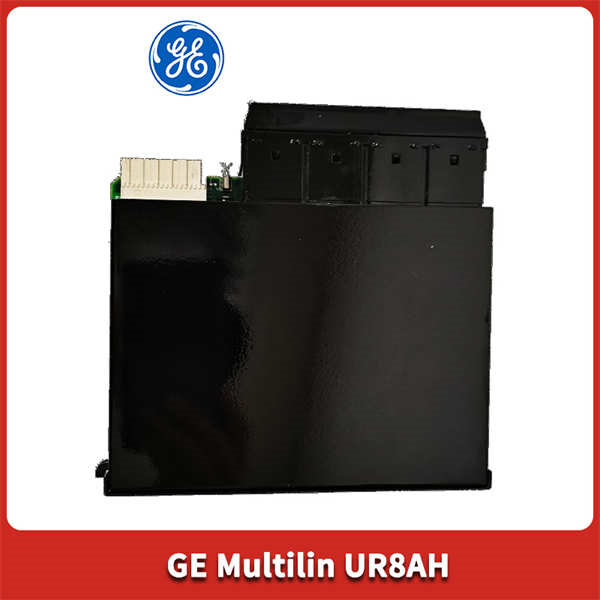

GE UR8AH

Installation and Maintenance

Pre-installation preparation: Verify rack slot compatibility (supports UR A, B, C, D frames). Discharge static by grounding wrist strap to rack before handling the GE UR8AH. Label all field wires per ANSI/IEEE C37.2 device numbers. Apply 600V minimum insulation to adjacent high-voltage conductors.

Maintenance recommendations: Monitor “Input Health” metrics via EnerVista monthly; >5% deviation requires calibration. Clean terminals annually with non-residue contact cleaner. Replace after 500,000 operations or 15 years – indicated by STATUS LED flashing amber. For surge protection, verify earth ground resistance<5>
