Description

The PROSOFT MVI56-MCM is a high-performance Modbus communication module designed by ProSoft Technology (now part of Fortive) for seamless integration with Rockwell Automation ControlLogix platforms. This versatile interface card enables Allen-Bradley PLCs to communicate natively with Modbus RTU/ASCII devices, eliminating the need for external gateways. As part of the MVI56 series, the MVI56-MCM operates as a dedicated coprocessor within the ControlLogix chassis, handling protocol translation independently to free CPU resources. It supports master/slave modes for connecting up to 247 field devices – including flow meters, drives, and legacy controllers – via RS-232/485 ports. With galvanic isolation (2,500 VAC) and surge protection, the PROSOFT MVI56-MCM ensures data integrity in electrically noisy environments like substations or manufacturing floors. Its non-intrusive design allows hot-swapping without disrupting ControlLogix operations, making it ideal for continuous process industries requiring zero-downtime upgrades.

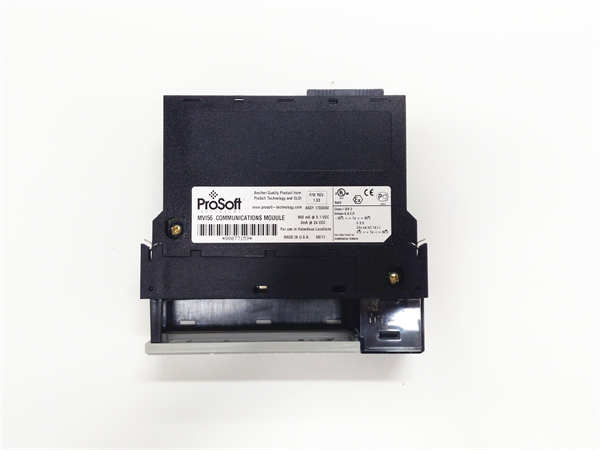

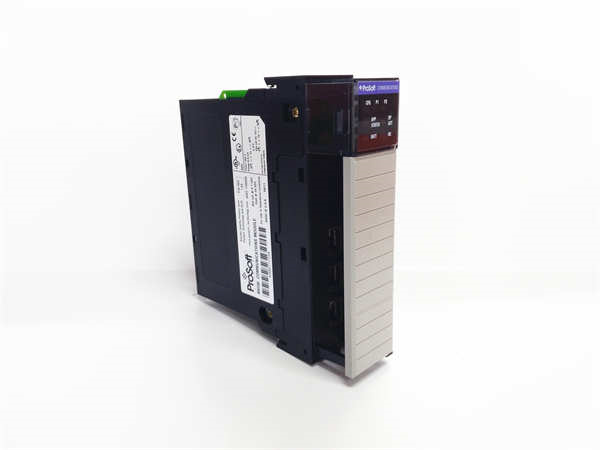

PROSOFT MVI56-MCM

Technical Specifications

Main Features and Advantages

Protocol flexibility: The PROSOFT MVI56-MCM translates ControlLogix tag-based data to Modbus registers bidirectionally, supporting function codes 01-06, 15-16, 22, and 23. Its dual-port architecture allows simultaneous RS-232 (short-range) and RS-485 (1.2 km) connections, enabling hybrid network topologies.

Robust diagnostics: Onboard LEDs monitor port activity, errors, and module status. The embedded web server provides real-time message tracking, while buffer capture tools simplify troubleshooting without stopping operations. Configuration is streamlined via ProSoft’s Configuration Studio software, which auto-generates AOI (Add-On Instructions) for Studio 5000 integration.

The MVI56-MCM reduces integration costs by 40% compared to external converters, with no additional programming hardware required. Its galvanic isolation prevents ground loops from damaging ControlLogix systems, critical in plants with variable-frequency drives.

Application Field

The PROSOFT MVI56-MCM bridges modern ControlLogix systems with legacy Modbus equipment across industries. In water/wastewater treatment, it connects pump station RTUs to SCADA systems for real-time flow control. Manufacturing lines use it to integrate CNC machines and material handlers into PlantPAx DCS networks.

Oil & gas applications include linking turbine vibration monitors (Modbus RTU) to emergency shutdown systems. Power utilities deploy the MVI56-MCM for substation battery monitoring and relay coordination. In mining, it enables conveyor weight scales to feed data directly into production tracking software. The module is indispensable for retrofits where replacing non-Allen-Bradley equipment is cost-prohibitive.

Related Products

MVI56E-MNET: Modbus TCP/IP module for Ethernet-enabled ControlLogix.

MVI56-GEC: GE Genius Bus Communicator for GE Fanuc PLC integration.

MVI56-PDPM: PROFIBUS DP Master module.

MVI46-MCM: CompactLogix version of Modbus interface.

MVI69L-MCM: Modbus module for ArmorLogix hazardous environments.

MVI56-LDP: DeviceNet scanner for ControlLogix.

MVI56E-MCM: Ethernet/IP to Modbus gateway (standalone).

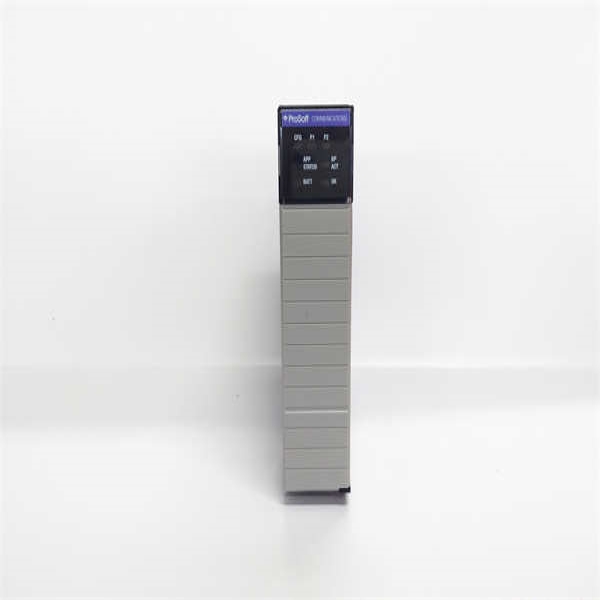

PROSOFT MVI56-MCM

Installation and Maintenance

Pre-installation preparation: Verify ControlLogix chassis slot compatibility (supports any slot except CPU position). Ensure RSLogix 5000 v16+ or Studio 5000. Download latest MVI56-MCM EDS files and Configuration Studio. Configure serial parameters (baud/parity) to match field devices before power-up.

Maintenance recommendations: Monitor module diagnostics via web interface monthly. Update firmware during planned shutdowns using TFTP utility. For RS-485 networks, terminate bus ends with 120Ω resistors and daisy-chain connections. Replace the MVI56-MCM if port LEDs indicate persistent communication faults.
