The ABB PM803F 3BDH000530R1 is a high-performance process controller from ABB’s AC 800M series, engineered for mission-critical automation in power generation, oil & gas, and chemical processing. As a core component of ABB’s Symphony® Plus and 800xA DCS platforms, this controller executes complex regulatory control, sequence logic, and safety functions (up to SIL 3) with deterministic sub-100ms scan times. The PM803F leverages a dual-redundant 800 MHz PowerPC architecture with 1 GB RAM and 4 GB Flash storage, supporting real-time data exchange across 250,000 I/O points. Its ruggedized design (-40°C to +70°C operating range) and EMI hardening ensure reliability in substations or offshore platforms, while integrated cybersecurity features (secure boot, role-based access) meet NERC CIP and IEC 62443 standards.

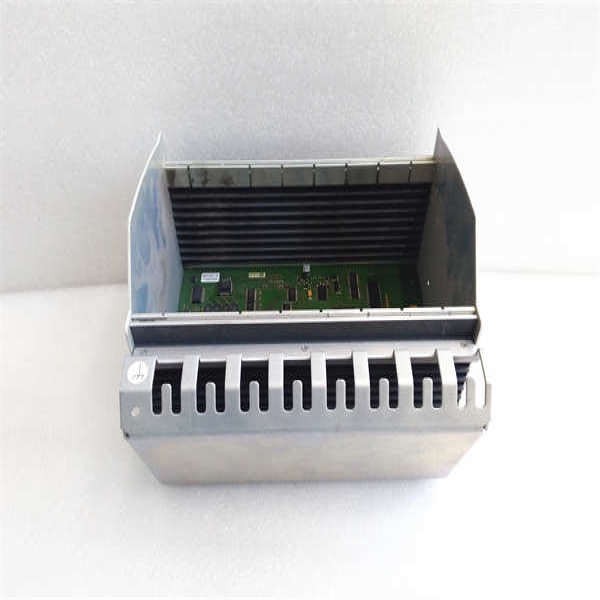

ABB PM803F 3BDH000530R1
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | PM803F 3BDH000530R1 |
| Manufacturer | ABB |
| Product Type | Process Controller |
| Processor | Dual PowerPC @ 800 MHz (Redundant) |
| Memory | 1 GB RAM / 4 GB Flash |
| I/O Capacity | 250,000 points per system |
| Scan Time | < 100> |
| Redundancy | Hot standby (switchover < 50> |
| Safety Certification | SIL 3 (IEC 61508), TÜV |
| Communication Ports | 2x Ethernet (100 Mbps), 1x USB, Serial |
| Protocols | OPC UA, Modbus TCP, IEC 61850 |
| Power Supply | 24 VDC (18–36 VDC) |
| Operating Temperature | -40°C to +70°C |
| Certifications | UL, ATEX Zone 2, IEEE 1613 |
| Dimensions | 233 x 128 x 125 mm (H x W x D) |
Main Features and Advantages
Fault-tolerant architecture: Triple modular redundancy (TMR) option for safety-critical applications, with hardware-based voter synchronization. The PM803F’s <50>
Engineering efficiency: Native integration with Control Builder M engineering tools supports IEC 61131-3 languages and CFC (Continuous Function Chart) programming. Automatic version control and online modifications reduce commissioning time by 40%.
Cybersecurity resilience: Hardware-enforced secure boot chain and encrypted communications with dynamic key rotation. Audit trails comply with FDA 21 CFR Part 11 for pharmaceutical applications.
Application Field
The ABB PM803F 3BDH000530R1 dominates critical infrastructure:
Power Generation: Governs combined-cycle gas turbines (CCGT), boiler controls, and SCR/SNCR emission systems.
Oil & Gas: Manages offshore platform safety shutdown (ESD) and subsea production control.
Chemical: Coordinates batch reactor sequences and SIL 3 safety interlocks.
Water: SCADA master for dam spillway gates and large-scale filtration plants.
In LNG liquefaction trains, it controls cryogenic compressors at -40°C ambient temperatures.

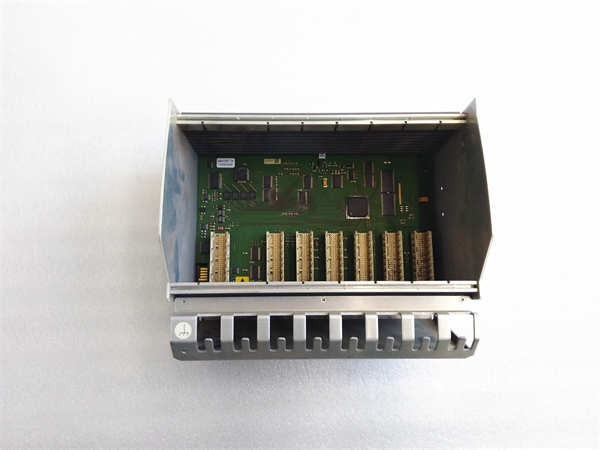

ABB PM803F 3BDH000530R1
Related Products
PM802F: Lower-tier controller with reduced I/O capacity.
PM851F: Compact variant for modular cabinets.
CI871: PROFIBUS DP interface module.
SD812: Safety I/O module for SIL 3 loops.
TP854: Operator panel with HMI integration.
PM864AK01: Enhanced CPU for high-speed logic.
