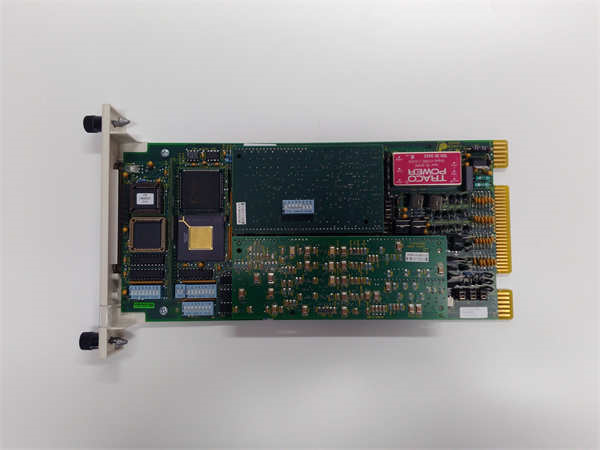

The ABB SPHSS03 is a Safety High-Density Digital Input Module designed for ABB’s S800 I/O High Integrity system, providing SIL 3 (IEC 61508) compliant signal acquisition in critical safety instrumented systems (SIS). Engineered for nuclear, power generation, and hazardous process industries, this module monitors up to 16 safety signals (e.g., E-stops, safety gate switches) with dual-channel redundancy and advanced diagnostics. As part of ABB’s 800xA Safety solution, the SPHSS03 features galvanic isolation (2,500 VAC) between channels and automatic fault detection to prevent dangerous failures. Its hot-swappable architecture enables maintenance without process disruption, while -40°C to +70°C operation ensures reliability in harsh environments like turbine halls or offshore platforms.

Get a Quote
Manufacturer:
Our extensive catalogue, is available now for dispatch to the worldwide.
  • Email: sales@slxytech.com
  • WhatsApp / Wechat：8617062388866
  • Phone：+86 17062388866

Description

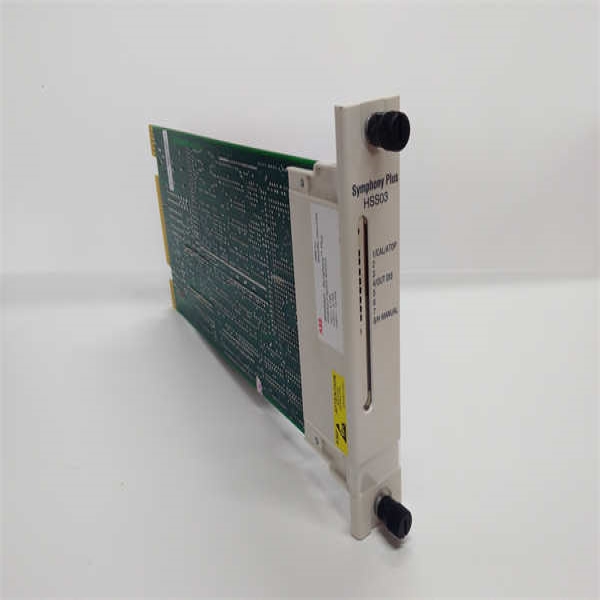

The ABB SPHSS03 is a Safety High-Density Digital Input Module designed for ABB’s S800 I/O High Integrity system, providing SIL 3 (IEC 61508) compliant signal acquisition in critical safety instrumented systems (SIS). Engineered for nuclear, power generation, and hazardous process industries, this module monitors up to 16 safety signals (e.g., E-stops, safety gate switches) with dual-channel redundancy and advanced diagnostics. As part of ABB’s 800xA Safety solution, the SPHSS03 features galvanic isolation (2,500 VAC) between channels and automatic fault detection to prevent dangerous failures. Its hot-swappable architecture enables maintenance without process disruption, while -40°C to +70°C operation ensures reliability in harsh environments like turbine halls or offshore platforms.

ABB SPHSS03

ABB SPHSS03

Technical Specifications

Parameter Name Parameter Value
Product Model SPHSS03
Manufacturer ABB
Product Type SIL 3 Digital Input Module
Channels 16 (Grouped in 8 pairs)
Input Type 24-48 VDC (Dry Contact / Namur)
SIL Certification SIL 3 (IEC 61508)
Response Time < 15>
Isolation 2,500 VAC (Channel-to-Backplane)
Diagnostics Open Wire, Short-Circuit, Cross-Wire
Operating Temperature -40°C to +70°C
Power Consumption 80 mA @ 24 VDC
Connection Spring-clamp terminals (0.25–1.5 mm²)
Safety Standards IEC 61511, ISO 13849 PL e
Certifications ATEX/IECEx Ex [ia] IIC, UL, TÜV
Backplane Compatibility S800 HI Carrier (e.g., TB831S)

Main Features and Advantages

Fail-safe architecture: Dual-redundant signal paths with continuous cross-monitoring detect discrepancies ≥1 ms, forcing a safe state. The SPHSS03‘s voter logic compares inputs across independent processors, achieving <1e>

Advanced diagnostics: Real-time per-channel health reporting identifies stuck-at faults, wiring errors, and degraded contacts. Configurable pulse testing (0.5–10 Hz) validates sensor integrity without process interruption.

Lifecycle efficiency: Tool-less replacement reduces MTTR to <2>

Application Field

The ABB SPHSS03 secures ultra-critical processes:



Nuclear: Reactor protection system (RPS) trip signals per IEEE 603.



Power Plants: Turbine overspeed detection and boiler MFT (Master Fuel Trip).



Oil & Gas: HIPPS (High-Integrity Pressure Protection) valve position feedback.



Chemical: Emergency venting system activation via safety pressure switches.
In LNG facilities, it operates at -40°C while monitoring cryogenic valve limit switches.

ABB SPHSS03

ABB SPHSS03

Related Products



SPHSO03: SIL 3 Digital Output Module for safety actuators.



SPHSS01: 8-channel SIL 3 input module (lower density).



TB831S: SIL 3-certified carrier for S800 HI modules.



SD822S: Safety signal conditioner for Ex-i barriers.



PM803F: SIL 3 controller compatible with SPHSS03.
