Description

The Honeywell ICS Triplex T8311 is a high-integrity Analog Output Module designed for Honeywell’s Trusted® Triple Modular Redundant (TMR) safety platform, achieving SIL 3 certification per IEC 61508/61511 standards. This critical module converts safety logic decisions from controllers (e.g., T8110B) into precise 4–20 mA or 0–10 VDC signals to actuate final elements like control valves, variable frequency drives (VFDs), or dampers in safety-critical loops. Engineered with three independent output channels per point, the ICS Triplex T8311 ensures fault-tolerant signal generation by continuously voting and cross-checking outputs. Any channel discrepancy triggers automatic isolation while maintaining uninterrupted operation.

The module supports eight fully isolated output channels with HART® 7.0 communication protocol integration, enabling real-time device diagnostics and calibration without compromising safety integrity. Designed for extreme environments, the ICS Triplex T8311 operates reliably in temperatures from -40°C to +70°C and features conformally coated circuitry for resistance to humidity, dust, and corrosive atmospheres. Its hot-swap capability allows maintenance without system shutdown, making it indispensable for emergency shutdown (ESD), burner management (BMS), and machinery protection systems where signal reliability is non-negotiable.

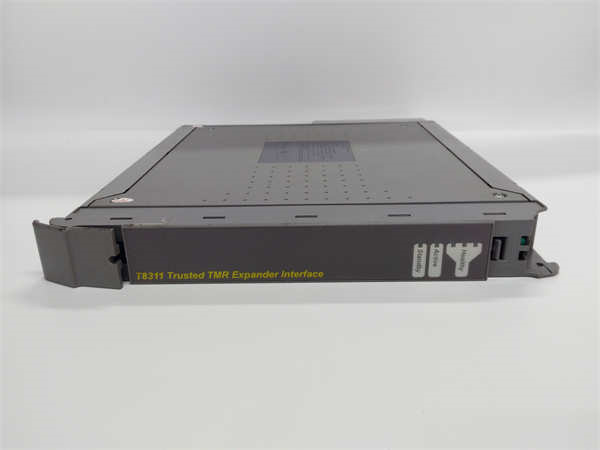

ICS TRIPLEX T8311

Technical Specifications

Main Features and Advantages

Fault-Tolerant Output Execution: Each channel of the T8311 employs three independent output circuits driven by separate microprocessors. The controller (e.g., T8110B) sends identical commands to all three circuits, which execute voting at the point of actuation. If one circuit fails or deviates, the module automatically suppresses its output while the remaining two maintain the correct signal—ensuring zero single-point failures. This architecture reduces spurious trips by >99% compared to simplex systems.

Advanced Diagnostics and HART Integration: The module continuously monitors output current/voltage, loop integrity, and internal processor health. Real-time detection of open circuits, short circuits, or over-range conditions triggers immediate alarms. Integrated HART® 7.0 protocol allows bidirectional communication with smart field devices (e.g., positioners, VFDs), enabling predictive maintenance without additional hardware. Valve signature analysis, calibration verification, and device configuration are performed in-situ, minimizing downtime.

Operational Resilience: With 1500 VAC inter-channel isolation, the ICS Triplex T8311 eliminates ground loop interference in electrically noisy environments. Its hot-swap capability permits module replacement during system operation: Users deactivate outputs via software, replace the module, and reactivate—all without process interruption. The aluminum housing with IP20-rated convection cooling ensures reliability in high-vibration areas like compressor stations or turbine halls.

Application Field

The Honeywell ICS Triplex T8311 is deployed where precision control of final elements directly impacts safety. In offshore oil & gas platforms, it modulates emergency shutdown valves (ESDVs) during overpressure events and controls flare ignition systems. Refineries use the T8311 for fuel gas regulating valves in burner management systems (BMS), ensuring precise air-fuel ratios to prevent furnace explosions.

Power generation facilities rely on the module for turbine inlet valve control during overspeed scenarios and boiler feedwater regulation. In chemical plants, the ICS Triplex T8311 manages reactor cooling valve positioning during exothermic reactions, while LNG facilities utilize it for cryogenic control valve actuation during liquefaction processes. Its SIL 3 certification also makes it suitable for nuclear safety systems—controlling coolant flow valves and containment isolation dampers.

ICS TRIPLEX T8311

Related Products

Trusted T8110B: TMR Safety Controller driving outputs for the T8311.

Trusted T8151B: 32-channel digital input module for safety interlock signals.

Trusted T8461: Analog Input Module for process variable monitoring (e.g., pressure/temperature).

Trusted T8431: Digital Output Module for on/off actuation of shutdown devices.

Trusted T8800: Communication gateway linking T8311 to DCS/SCADA networks.

Trusted T8290: Redundant power supply for TMR racks housing the T8311.

Trusted T8310: Legacy analog output module (predecessor to T8311).

Experion HS-C300: Honeywell DCS controller for integrated safety/process control.

FTA v10.3: Engineering software for configuring T8311 diagnostics and HART parameters.
