Description

The TOSHIBA UTLH21 is a precision analog output module engineered for integration into TOSHIBA’s advanced distributed control systems (DCS), particularly in power generation, turbine control, and large-scale industrial automation environments. As a key element of TOSHIBA’s Unified System Architecture, the TOSHIBA UTLH21 delivers highly accurate and stable analog signals to control valves, actuators, variable frequency drives (VFDs), and other field instrumentation that require continuous process regulation. Designed for mission-critical applications, the TOSHIBA UTLH21 supports standard industrial analog signal ranges such as 4–20 mA and 0–10 VDC, ensuring seamless interoperability with a wide range of plant equipment. The module features advanced signal conditioning, high-resolution digital-to-analog conversion, and robust electrical isolation to prevent noise interference and ground loops—essential for maintaining control integrity in electrically noisy environments like power stations and heavy manufacturing facilities. Its modular design allows for easy installation and hot-swappable replacement within TOSHIBA control racks, minimizing system downtime during maintenance or upgrades. The TOSHIBA UTLH21 is widely deployed in legacy and modernized turbine control systems, where precise modulation of steam, fuel, and cooling systems is vital for efficiency, safety, and regulatory compliance. With its proven reliability and long service life, this module remains a trusted solution for system integrators and plant engineers managing aging infrastructure and control system life-extension programs.

TOSHIBA UTLH21

Technical Specifications

Product Model | UTLH21
Manufacturer | TOSHIBA
Product Type | Analog Output Module
Number of Channels | 8
Output Signal Range | 4–20 mA, 0–20 mA, 0–10 VDC (Configurable per channel)
Resolution | 16-bit
Accuracy | ±0.1% of full scale
Signal Isolation | Optical Isolation (Channel-to-Backplane)
Isolation Voltage | 1500 VAC (Typical)
Response Time | < 2> Load Impedance (Current Output) | Up to 750 Ω
Voltage Output Drive Capacity | Up to 1 kΩ
Operating Temperature | 0°C to 60°C
Storage Temperature | -20°C to 80°C
Humidity Range | 5% to 95% RH (Non-condensing)
Installation Type | Rack Mount (Compatible with TOSHIBA US Series Frames)

Main Features and Advantages

The TOSHIBA UTLH21 excels in delivering precise, noise-resistant analog control signals in demanding industrial environments. Its 16-bit resolution ensures fine control granularity, which is essential for applications such as steam valve positioning in turbine systems or flow rate modulation in chemical processes. Each of the eight output channels is individually configurable, allowing system designers to mix current and voltage outputs within the same module to meet diverse field device requirements—this flexibility reduces the need for multiple specialized modules and simplifies system architecture. The optical isolation between the output channels and the backplane protects the central controller from electrical transients and ground potential differences, enhancing system reliability and longevity. The TOSHIBA UTLH21 also features built-in diagnostics, including channel status monitoring and fault detection (e.g., open circuit or short circuit), which are indicated via front-panel LEDs for quick troubleshooting. Its support for hot-swapping enables maintenance and replacement without shutting down the entire control system, a critical advantage in continuous-operation facilities. The module’s compatibility with legacy TOSHIBA control processors (such as USPU series) ensures smooth integration into existing installations, making it ideal for retrofit projects and system upgrades. The TOSHIBA UTLH21 is constructed with industrial-grade components and conforms to stringent electromagnetic compatibility (EMC) standards, ensuring stable performance in high-vibration and high-noise environments typical of power plants and industrial plants.

Application Field

The TOSHIBA UTLH21 is primarily deployed in power generation facilities, including thermal, nuclear, and combined-cycle plants, where it plays a vital role in turbine control, boiler management, and auxiliary system regulation. In turbine control systems, the module provides precise analog signals to electro-hydraulic servo valves, enabling accurate control of steam flow and rotational speed. It is also used in feedwater control, desuperheater regulation, and combustion management systems, where stability and response accuracy directly impact plant efficiency and emissions compliance. Beyond power generation, the TOSHIBA UTLH21 is utilized in petrochemical refineries, steel mills, and large HVAC systems for controlling pumps, dampers, and modulating burners. Its high reliability makes it suitable for safety-related control loops and critical process automation tasks. The module is frequently employed in system modernization projects, where aging analog output systems are replaced or upgraded while maintaining compatibility with existing wiring and control logic. Engineers also use the TOSHIBA UTLH21 in test and simulation environments to validate control strategies before field deployment. Its long-term availability and global service support make it a preferred choice for maintaining operational continuity in legacy control systems.

Related Products

UTLH22: 16-channel analog output module with enhanced density, suitable for large-scale systems requiring more outputs.
UTLI21: Analog input module for receiving 4–20 mA or 0–10 VDC signals from sensors, complementing the UTLH21 in closed-loop control.
USPU11: Central processing unit compatible with UTLH21, serving as the main controller in TOSHIBA control racks.
USPS21: Dedicated power supply module optimized for TOSHIBA I/O modules, ensuring clean and stable power delivery.
USIO21: Digital I/O module often used alongside UTLH21 for discrete control and interlock logic.
UTRT21: Thermocouple and RTD input module for temperature monitoring in turbine and boiler applications.
USBC11: Bus coupler for multi-rack systems, enabling communication between racks containing UTLH21 modules.
UTLM21: Mixed-signal module combining analog and digital I/O for flexible system configurations.

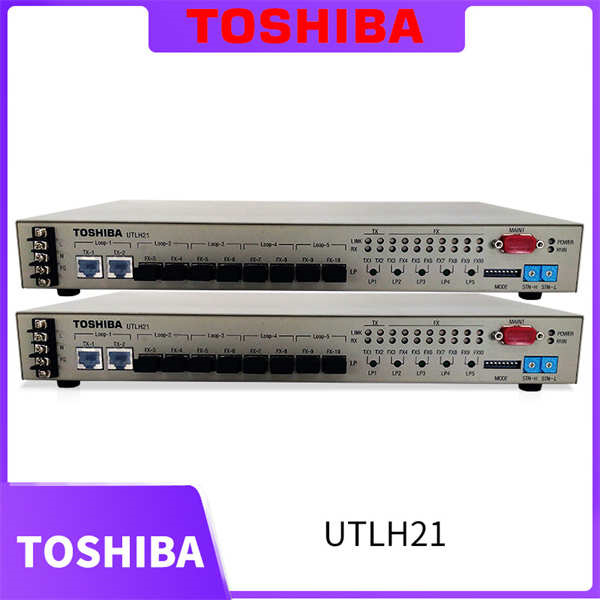

TOSHIBA UTLH21

Installation and Maintenance

Pre-installation preparation: Before installing the TOSHIBA UTLH21, ensure the control rack is powered down and all lockout/tagout procedures are followed. Verify that the rack type (e.g., USR11 or compatible) supports the module and that the backplane is clean and undamaged. Confirm that the system power supply is within specifications and that proper grounding is established. Align the module with the guide rails and insert it firmly into the slot until the connector is fully seated. Secure the module using the side retention clips. After installation, power up the system and verify the power and communication LEDs on the front panel.

Maintenance recommendations: Regularly inspect the TOSHIBA UTLH21 for dust accumulation, overheating signs, or loose wiring. Clean the module and surrounding area during scheduled outages using dry compressed air. Monitor output accuracy periodically using calibrated test equipment. Replace the module using hot-swap procedures if supported by the system to avoid downtime. Store spare modules in anti-static bags in a dry, temperature-controlled environment.
