Description

The Emerson FOXBORO FBM233 is an 8-channel analog input module designed for Emerson’s flagship I/A Series distributed control system (DCS). Engineered for precision signal acquisition in demanding industrial environments, this module converts 4–20 mA current signals from field transmitters into high-resolution digital data for process control. As part of the Fieldbus Module (FBM) family, the FOXBORO FBM233 delivers exceptional noise immunity with 1500 VAC channel-to-channel isolation, preventing ground loops and signal degradation. Its hot-swappable design enables maintenance without system shutdown, minimizing production losses.

Ideal for continuous process industries, the Emerson FOXBORO FBM233 supports HART 7 protocol digital communication overlay, allowing simultaneous analog signal transmission and device diagnostics. The module integrates seamlessly with Emerson’s ControlCore™ software for real-time monitoring and calibration. Built to withstand harsh conditions, the FBM233 operates reliably in high-vibration areas and extreme temperatures, making it a cornerstone for safety-critical applications in oil refineries, chemical plants, and power generation facilities.

FOXBORO FBM233

Technical Specifications

Main Features and Advantages

Precision Measurement: The FOXBORO FBM233 delivers ±0.05% accuracy with 16-bit resolution, ensuring reliable data for critical control loops. Each channel features independent signal conditioning and A/D conversion, eliminating cross-talk.

Advanced Diagnostics: Integrated HART 7 support enables predictive maintenance by transmitting device health data (sensor drift, calibration alerts) alongside process variables. The module’s LED status indicators provide instant fault localization.

Robust Design: With 1500 VAC isolation per channel, the FBM233 rejects electromagnetic interference (EMI) and ground loops. Its conformal-coated PCB withstands corrosive atmospheres, while the wide operating temperature range ensures stability in outdoor installations.

Seamless Integration: Hot-swap capability allows module replacement during live operations. Auto-calibration via ControlCore™ reduces commissioning time, and backward compatibility with legacy I/A Series systems protects investments.

Application Field

The Emerson FOXBORO FBM233 excels in process industries requiring high-density analog signal acquisition. In oil & gas refineries, it monitors critical variables like reactor pressures, tank levels, and temperature profiles for FCCU units. Petrochemical plants leverage its HART diagnostics for predictive maintenance of pH sensors and flow transmitters in ethylene crackers.

Power generation facilities deploy the FBM233 for boiler feedwater control and emissions monitoring (NOx/SO₂ analyzers). In pharmaceutical manufacturing, it ensures GMP compliance by precisely tracking bioreactor parameters. Water treatment plants utilize its isolation capabilities for chlorine dosing control and pump monitoring in corrosive environments. The module’s reliability also supports safety instrumented functions (SIF) when integrated with triple-modular redundant systems.

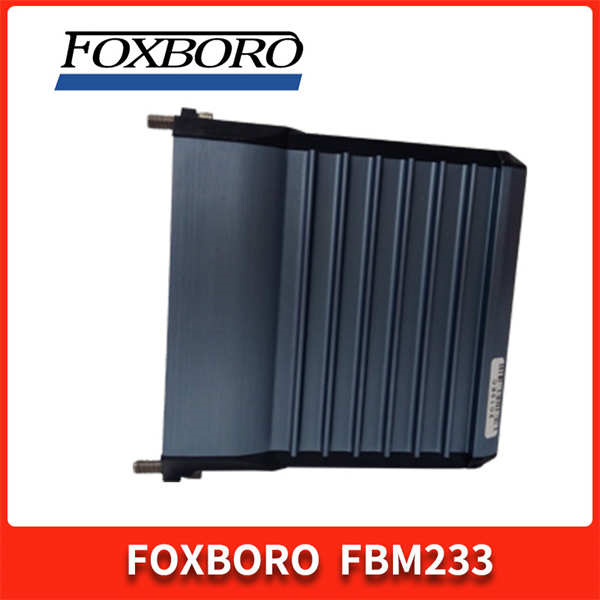

FOXBORO FBM233

Related Products

FBM234: Analog output module (8-channel, 4–20 mA) for actuator control.

FBM217: Digital input module with 32-point contact status monitoring.

FBM242: Thermocouple/RTD input module for temperature sensing.

FCP270: Redundant control processor for high-availability systems.

FBM258: Pulse input module for flowmeter/tachometer signals.

PSS21H-2DO: Safety output module for SIL 2/3 applications.

CPSU-400/480: Chassis power supply unit for FBM backplanes.
