The HIMA F35-982200416 is a next-generation digital input module for HIMA’s F35 series Safety Instrumented Systems (SIS), engineered for SIL 3 applications per IEC 61508/61511. Designed as a successor to the F3 series, this module combines 16 configurable digital inputs with enhanced diagnostics and ARM Cortex-R5F processing for sub-5ms response times. The HIMA F35-982200416 features quad-redundant signal processing with continuous cross-comparison, achieving >99.9% diagnostic coverage for critical applications like emergency shutdown systems. Its galvanic isolation (3000 VAC channel-to-system) and wide voltage range (8-265 VAC/DC) support global deployments without external signal conditioning.
Optimized for Industry 4.0 integration, the F35-982200416 incorporates embedded cybersecurity meeting IEC 62443-3-3 standards, including secure boot and role-based access control. The module’s hot-swappable design enables maintenance during live operations, while predictive diagnostics monitor contact degradation and wiring faults. With a ruggedized construction (-40°C to +85°C operating range) and TÜV-certified hardware, the HIMA F35-982200416 delivers unparalleled reliability for oil & gas, chemical, and energy safety applications where deterministic response is non-negotiable.

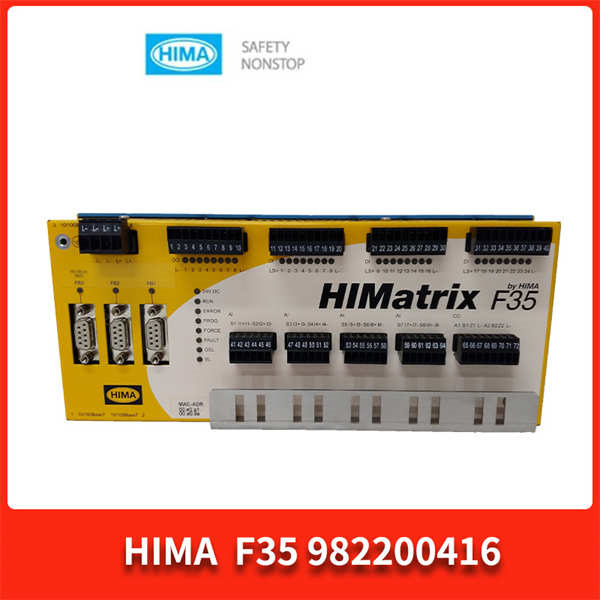

HIMA F35-982200416
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | F35-982200416 |
| Manufacturer | HIMA |
| Product Type | SIL 3 Digital Input Module |
| Input Channels | 16 (configurable 8-265V AC/DC) |
| Input Type | Dry contact / Namur / Line-monitored |
| Response Time | <5ms><!--5ms--> |
| Isolation | 3000VAC channel-system / 500VAC channel-channel |
| Diagnostic Coverage | >99.9% |
| Fault Tolerance | 1oo2D architecture |
| Power Consumption | 1.8W (idle) / 3.5W (max) |
| Operating Temperature | -40°C to +85°C |
| Connection | Removable spring terminals |
| Safety Certifications | TÜV SIL 3, IEC 61508/61511, ISO 13849 PL e |
| Cybersecurity | IEC 62443-3-3 SL2, Secure Boot |
Main Features and Advantages
Ultra-Fast Safety Response: ARM Cortex-R5F processors execute diagnostics in parallel with scan cycles, enabling<5ms>
Intelligent Diagnostics: Predictive algorithms analyze contact bounce patterns and voltage decay to forecast field device failures. Integrated HART-over-DI capability allows limited communication with smart switches without compromising SIL.
Flexible Deployment: Auto-sensing inputs support dry contacts, Namur sensors, and line-monitored circuits (24-230VAC) without reconfiguration. Group-based parameterization reduces engineering effort by 70%.
Cyber-Resilient Design: Hardware-enforced security includes cryptographic module authentication and tamper-evident seals. Configuration changes require physical key switch activation.
Application Field
The HIMA F35-982200416 protects high-value assets in extreme environments. Offshore platforms deploy it for subsea valve position monitoring and flame detection system inputs. Chemical plants utilize its wide voltage range for high-temperature reactor limit switches and corrosion-resistant pH sensor interlocks. Power generation facilities rely on its deterministic response for turbine lube oil pressure trips and hydrogen cooler leak detection.
Renewable energy applications include battery storage thermal runaway prevention and wind turbine brake system monitoring. Rail systems leverage its vibration resistance for signaling track circuits. Pharmaceutical manufacturers implement it for sterility barrier door position verification in aseptic processing.

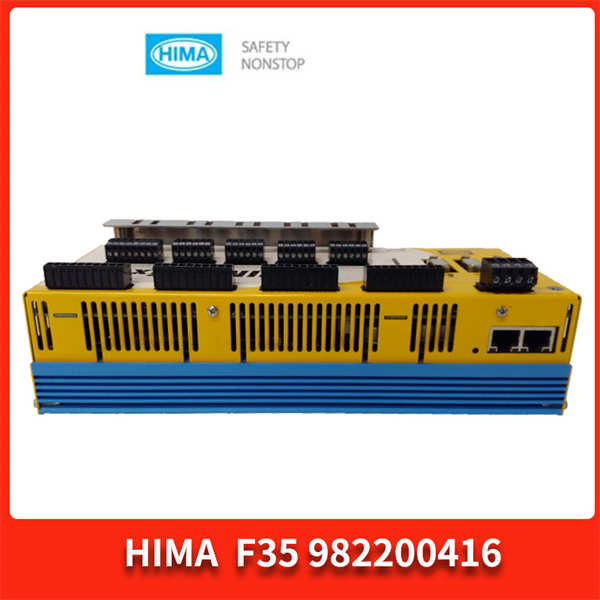

HIMA F35-982200416
Related Products
F35-982200417: 32-channel digital input variant
F35-982200438: Analog input module with HART 7
F35-CPU-01: Central safety controller with dual-core lockstep
F3-DI-16-01: Legacy SIL 3 module for migration
F35-BASE-01: Active hot-swap baseplate
F35-PS-01: Redundant 24VDC power supply
HIMax 7.1: Unified engineering platform
