Description

The RELIANCE WR-D4004-MD-D4014B is a motor control center (MCC) bucket or drawout assembly designed for use in Reliance Electric’s Motor Logic® series of intelligent motor control centers, part of the broader Rockwell Automation industrial automation portfolio. This specific configuration combines a Motor Logic® WR-D4004-MD base unit with a D4014B control module, forming a fully integrated, NEMA-rated, low-voltage motor starter solution suitable for demanding industrial environments.

Manufactured by Reliance Electric, a long-standing leader in motor and drive technology under the Rockwell Automation umbrella, the RELIANCE WR-D4004-MD-D4014B is engineered to provide reliable, space-efficient, and intelligent motor control for AC induction motors in applications such as pumps, fans, compressors, and conveyors. The “WR-D4004-MD” portion refers to the Motor Logic® intelligent motor protector base, while the “D4014B” denotes the solid-state overload relay and control logic module that snaps into the base, enabling advanced protection, monitoring, and communication capabilities.

This assembly supports full-voltage (across-the-line) starting and integrates seamlessly into Motor Logic® MCC lineups, offering drawout capability for easy maintenance and reduced downtime. The RELIANCE WR-D4004-MD-D4014B is particularly valued in industrial settings where predictive maintenance, remote diagnostics, and integration with plant-wide control systems are critical.

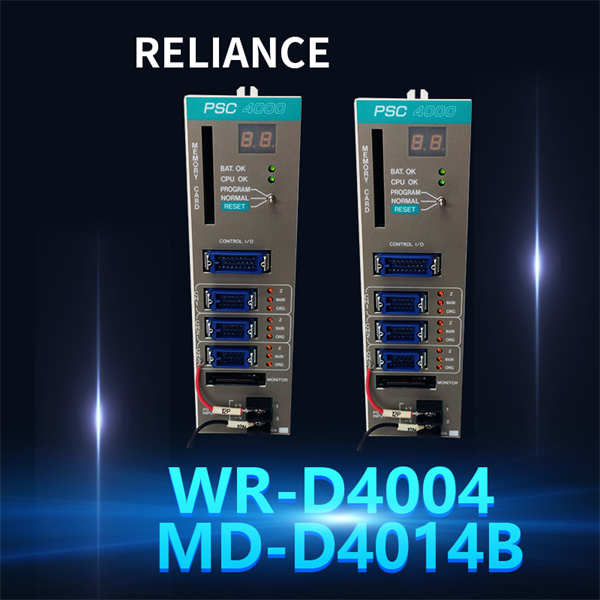

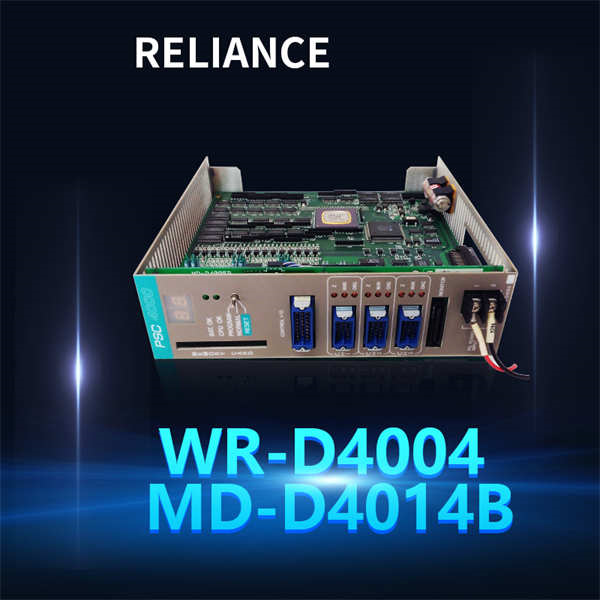

RELIANCE WR-D4004-MD-D4014B

Technical Specifications

Parameter	Specification
Model Number	WR-D4004-MD-D4014B
Manufacturer	Reliance Electric (Rockwell Automation)
Product Type	Motor Logic® Intelligent Motor Starter (Drawout Bucket)
Series	Motor Logic® MCC (Motor Control Center)
Base Unit	WR-D4004-MD (NEMA Size 2 or 3 equivalent)
Control Module	D4014B (Electronic Overload Relay & Control Module)
Rated Voltage	208–600 VAC, 3-phase, 50/60 Hz
Continuous Current Range	Typically 10–50 A (adjustable via D4014B)
Short-Circuit Withstand	Up to 65 kA (with proper upstream protection)
Starting Method	Full Voltage (Across-the-Line)
Overload Protection	Solid-state electronic (D4014B), adjustable trip curves
Trip Class	Class 10 or Class 20 (configurable)
Communication Interface	Optional DeviceNet, Modbus, or Ethernet/IP via add-on modules
I/O Capabilities	Digital inputs (Start/Stop), relay outputs (Run, Fault), status LEDs
Control Power	120 VAC or 24 VDC (supplied from control transformer or external source)
Operating Temperature	0°C to 60°C (32°F to 140°F)
Storage Temperature	-25°C to 85°C (-13°F to 185°F)
Enclosure Type	Drawout bucket for vertical or horizontal MCC lineup
Standards Compliance	UL 508A, NEMA ICS, CSA C22.2, IEC 60947

Main Features and Advantages

1. Intelligent Motor Protection (via D4014B)

The D4014B module provides microprocessor-based overload protection with precise current sensing, phase loss, phase imbalance, jam, and stall detection. It eliminates the need for traditional bimetallic or eutectic alloy heaters, offering digital trip setting adjustment and consistent performance across temperature variations.

2. Drawout Design (WR-D4004-MD Base)

The WR-D4004-MD base allows the entire bucket to be racked out for inspection, testing, or replacement without de-energizing the entire MCC lineup. This reduces downtime and enhances safety during maintenance (supports arc-flash reduction strategies).

3. Advanced Diagnostics & Monitoring

The D4014B continuously monitors motor current, running hours, number of starts, and thermal capacity usage. It can store fault history (e.g., overload events), enabling predictive maintenance and root cause analysis.

4. Communication & Integration

With optional communication modules, the RELIANCE WR-D4004-MD-D4014B can connect to PLC systems (e.g., Allen-Bradley ControlLogix/CompactLogix), SCADA, or HMI platforms via DeviceNet, Modbus RTU, or Ethernet/IP, enabling remote start/stop, parameter monitoring, and alarm management.

5. Compact & Scalable Design

Designed for high-density MCC layouts, this unit saves panel space while maintaining NEMA-standard performance. Multiple configurations are available for different current ratings and control options.

6. Arc-Resistant Features

When installed in compatible MCC structures, the design helps contain arc faults and directs energy away from personnel, improving operator safety in high-power environments.

Application Field

The RELIANCE WR-D4004-MD-D4014B is widely used in industrial and commercial facilities requiring reliable, intelligent motor control, including:

Water & Wastewater Treatment Plants: For pump control with remote monitoring and dry-run protection.
HVAC Systems: In large air handlers, chillers, and cooling towers where motor health tracking is essential.
Manufacturing & Processing Lines: For conveyor drives, mixers, and packaging machines requiring frequent starts/stops.
Oil & Gas Facilities: In compressor stations and pumping skids where uptime is critical.
Power Generation: For auxiliary systems like cooling fans and lube oil pumps.
Mining & Minerals: In harsh environments where robust, serviceable motor control is required.

It is especially valuable in retrofit projects where legacy MCCs are upgraded with intelligent protection and communication without replacing entire buckets.
