Description

The Schneider 140CPU67160 stands as the flagship processor within Schneider Electric’s premium Modicon Quantum automation platform, engineered for mission-critical control applications demanding maximum reliability and cybersecurity. This high-performance CPU module executes complex process logic, data handling, and communication management across distributed control systems (DCS) and safety-instrumented systems (SIS). Featuring a triple-modular redundant (TMR) architecture, the Schneider 140CPU67160 ensures fault-tolerant operation with automatic failover capabilities, achieving >99.999% availability for industries where downtime is unacceptable. Its integrated cybersecurity suite includes embedded firewall protection, role-based access control, and secure boot to defend against evolving industrial threats. Compatible with Quantum’s extensive I/O ecosystem, this processor supports deterministic control cycles as fast as 0.1ms while managing up to 64K I/O points. The Schneider 140CPU67160 is purpose-built for seamless integration into brownfield upgrades and greenfield installations, offering advanced diagnostics through embedded web servers and native support for Ethernet/IP, Modbus TCP, and PROFINET protocols. As the cornerstone of Schneider’s EcoStruxure™ architecture, this processor delivers unmatched scalability for next-generation industrial automation.

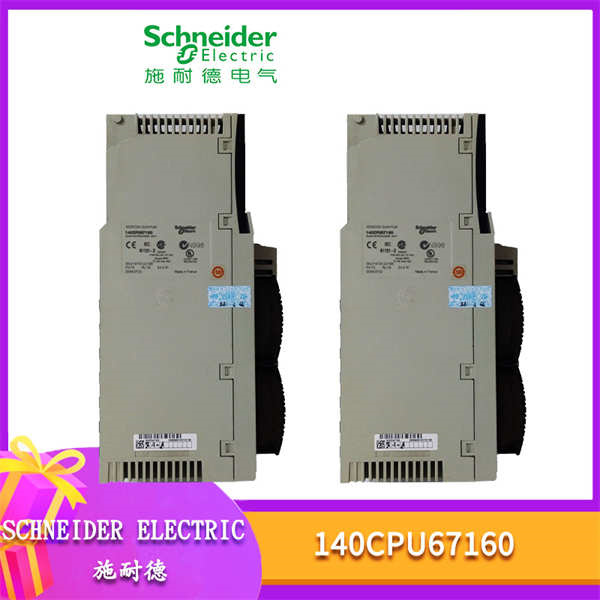

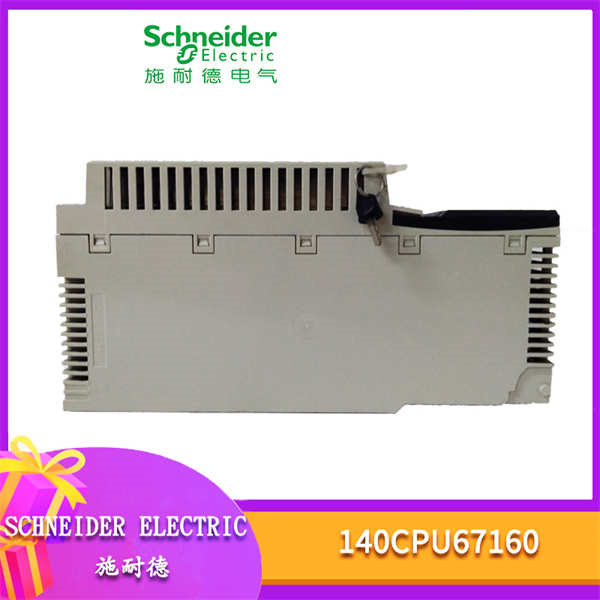

SCHNEIDER 140CPU67160

Technical Specifications

Main Features and Advantages

The Schneider 140CPU67160 delivers industry-leading resilience through its Triple Modular Redundancy architecture. Three parallel processors execute identical operations with continuous cross-checking, automatically correcting discrepancies and isolating faulty components without disrupting operations. This design achieves fault tolerance for single-point failures and maintains <1ms>

For operational efficiency, the Schneider 140CPU67160 offers advanced diagnostic capabilities through embedded web pages displaying real-time CPU health, network traffic analysis, and cybersecurity event logs. Its 10MB program memory supports complex control strategies including PID loops, batch processing, and motion control algorithms. The dual Ethernet ports enable network redundancy via RSTP/STP protocols while supporting simultaneous communication with HMIs, historians, and enterprise systems. Hot-swappable design allows module replacement during operation, significantly reducing maintenance downtime. Backward compatibility with Quantum I/O modules simplifies system upgrades, preserving existing infrastructure investments.

Application Field

The Schneider 140CPU67160 excels in critical infrastructure protection where system failure carries catastrophic consequences. In power generation, it governs turbine control systems and grid stability management across nuclear, thermal, and renewable plants, providing SIL 3-certified safety interlocks. For oil & gas applications, this processor manages offshore platform emergency shutdown (ESD) systems and pipeline compressor stations, operating reliably in extreme temperatures and hazardous environments (ATEX Zone 2). Water treatment facilities deploy the Schneider 140CPU67160 for SCADA-controlled filtration plants and floodgate management, leveraging its fault tolerance during natural disasters.

Transportation networks utilize this CPU for tunnel ventilation control and railway signaling systems where cybersecurity resilience is paramount. In manufacturing, it orchestrates high-speed automotive production lines and continuous process units like chemical reactors, synchronizing safety and control functions on a single platform. The module’s environmental robustness makes it ideal for mining operations and remote LNG terminals where equipment must withstand vibration, dust, and wide temperature fluctuations. The Schneider 140CPU67160 consistently delivers deterministic performance where conventional PLCs cannot meet availability or security requirements.

Related Products

Schneider 140CPU67160S: Enhanced security edition with FIPS 140-2 validated cryptographic module

Schneider 140CRA93100: Redundancy adapter for hot-backup CPU synchronization

Schneider 140NOE77101: Network interface module for dual Ethernet/IP connectivity

Schneider 140XBP01600: Modbus Plus fiber optic repeater for extended networks

Schneider 140DDI35300: 32-point digital input module for high-density field interfacing

Schneider 140ACI04000: Analog input module with HART protocol support

Schneider 140SAI94000: Safety analog input module for SIL 3 applications

Schneider Unity Pro XL: Configuration software for programming and diagnostics

SCHNEIDER 140CPU67160

Installation and Maintenance

Pre-installation preparation: Verify rack compatibility (140XBP or 140XCP series) and ensure firmware compatibility with existing Quantum modules. Discharge static electricity before handling the Schneider 140CPU67160. Prepare configuration backups using Unity Pro software. Confirm adequate clearance for heat dissipation (minimum 25mm above/below module).

Maintenance recommendations: Monitor CPU status via front-panel LEDs (RUN/ERR/BAT) monthly. Replace the lithium battery (ref. 140BAT03000) every 5 years to preserve RAM data. Conduct annual firmware validation against Schneider’s cybersecurity bulletins. Use only Schneider-approved memory cards for program storage. For redundant systems, perform switchover tests quarterly using the CRA93100 adapter. Maintain operating temperature below 60°C to extend component lifespan.
