Description

The TRICONEX 3511 is a mission-critical Safety Manager Module for the Tricon v11 safety instrumented system (SIS), engineered to execute SIL 3-certified logic in high-risk process industries where failure is not an option. As the central processing unit of Triconex’s flagship Triple Modular Redundant (TMR) architecture, the 3511 employs three independent 32-bit processors synchronizing at 4ms intervals to detect and correct hardware/software faults instantaneously. This module manages complex shutdown logic for refinery furnaces, turbine controls, and reactor protection systems with deterministic 10ms scan times while supporting up to 15,000 I/O points across redundant networks. The TRICONEX 3511 features patented “Fault Tolerance and Diagnostics Coverage” technology achieving >99.99% system availability, with hot-swappable components enabling maintenance without process interruption. Its ruggedized design withstands extreme conditions (-40°C to +70°C) and electromagnetic interference up to 10V/m, ensuring reliable operation in offshore platforms and chemical plants where safety integrity prevents catastrophic events.

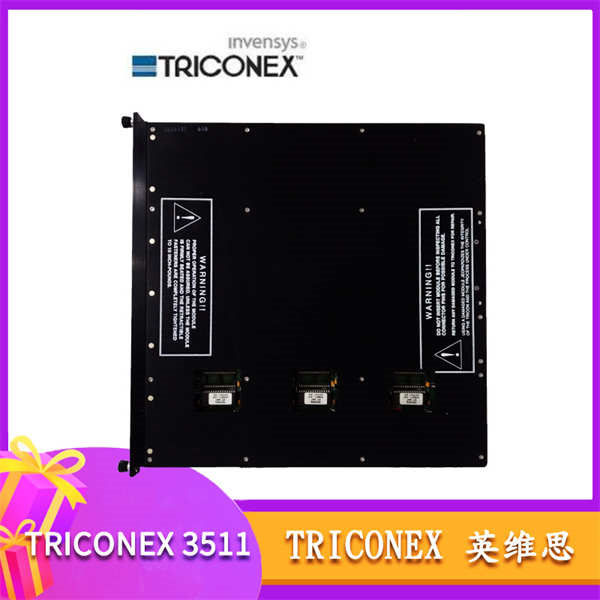

TRICONEX 3511

Technical Specifications

Main Features and Advantages

Ultra-Reliable TMR Architecture: Three parallel processors execute identical logic with 4ms synchronization. Voter circuits compare results in real-time, automatically correcting discrepancies and isolating faulty channels without process disruption.

Advanced Diagnostics: Continuous processor/memory integrity checks detect >95% of potential failures within 50ms. Hardware watchdogs monitor power fluctuations (±5% tolerance) and clock synchronization (±1μs).

Cybersecurity Hardened: Physical key switch prevents unauthorized logic changes. Secure firmware validation using SHA-256 encryption meets IEC 62443-3-3 standards. Audit trails record all configuration modifications with timestamp and user ID.

Maintenance Optimization: Front-accessible status LEDs display module health (green/amber/red). Hot-swap capability allows component replacement under full load. The 3511 stores last-known-good configuration in non-volatile memory during power loss.

Application Field

The 3511 dominates critical safety systems: In offshore platforms, it executes emergency shutdown (ESD) logic for wellhead control and gas compression with SIL 3 compliance. Refineries deploy it for fired heater management and flare knockout drum protection. Power generation relies on its deterministic response for turbine overspeed trips (<100ms>

Chemical plants utilize its TMR architecture for reactor temperature/pressure interlocks. Pipeline operations implement the TRICONEX 3511 for pump station surge relief and leak detection systems. Pharmaceutical batch processes leverage its audit trail capabilities for FDA 21 CFR Part 11 compliance in sterilization safety controls.

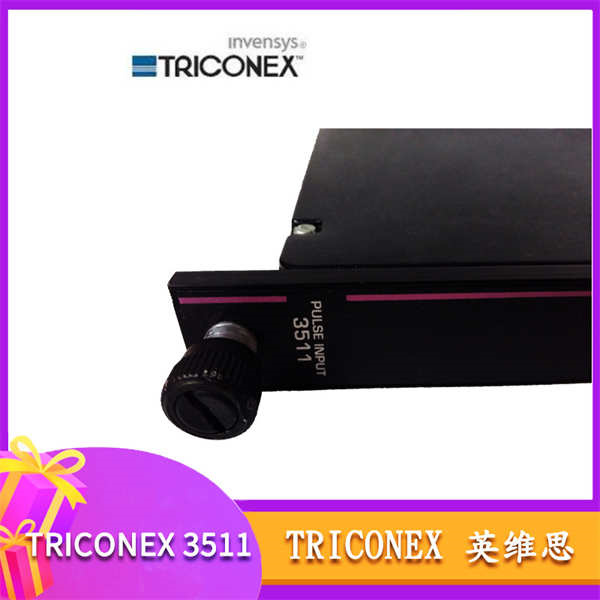

TRICONEX 3511

Related Products

3504E: Redundant power supply for 3511 systems

3708E: Analog input module with HART support

4351B: Ethernet communication module

3512: Enhanced processor with 50% faster scan time

9568-810: I/O termination panel

4000103-310: Memory expansion card

8312: DIN rail mounting kit

3625: Digital output module
