Description

The WOODWARD 8200-1302 is a high-reliability dual-loop turbine control module from Woodward’s 8000 series, engineered for precision regulation of gas turbines and steam turbines in mission-critical power generation and mechanical drive applications. Designed as a drop-in upgrade for legacy 2301D systems, this advanced controller delivers ±0.05% speed control accuracy with integrated load-sharing and anti-surge algorithms. The 8200-1302 features dual-channel processing with automatic bumpless transfer, ensuring uninterrupted operation during channel failures. Its ruggedized construction withstands extreme environments (-40°C to +85°C), 7g vibration, and 100V/m EMI interference. With SIL 2-certified overspeed protection and dual-redundant CANopen/Modbus TCP interfaces, the WOODWARD 8200-1302 provides deterministic response (<50ms>

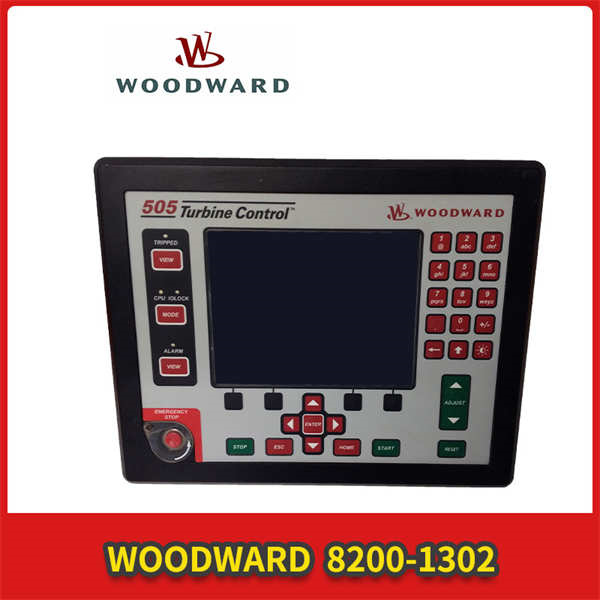

WOODWARD 8200-1302

Technical Specifications

Main Features and Advantages

Dual-Channel Redundancy: Parallel control paths with 5ms cross-validation ensure continuous operation during processor faults. Automatic output voting maintains position control during servo discrepancies.

Adaptive Turbine Optimization:

Smart Droop Compensation: Maintains ±0.02% speed deviation during 100% load rejection

Anti-Surge Control: Dynamic algorithms prevent compressor stall during rapid transients

Emissions Mode: Optimizes fuel valve trim for NOx reduction at partial loads

Cyber-Resilient Architecture:

Hardware-enforced role-based access (RBAC) with physical keylock

Signed firmware updates (AES-256) compliant with NERC CIP-007

Runtime integrity checks detect malicious code injection

Extreme Environment Design: Conformal-coated PCBs resist humidity and H₂S exposure. Gold-plated connectors ensure signal integrity in high-vibration installations.

Application Field

The 8200-1302 secures critical turbine operations:

Power Generation: Controls gas turbine startups during black-start scenarios with <2s>

Offshore Platforms: Manages turbine-driven compressors for LNG export with SIL 2-compliant emergency shutdown

Cogeneration Plants: Enables seamless transition between grid/island modes for hospital power systems

Pipeline Compression: Implements remote load-sharing across multiple turbines via Modbus TCP SCADA

Marine Propulsion: Integrates with dynamic positioning systems using NMEA 2000 protocol

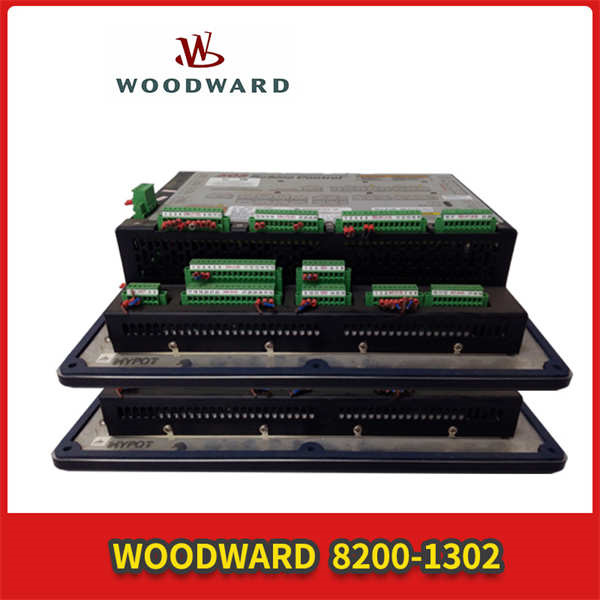

WOODWARD 8200-1302

Related Products

9907-1670: High-flow fuel actuator for 8200-1302 servo outputs

UG-10D: Handheld programmer with real-time trending

8440-1810: J1939-to-Ethernet gateway

PROACT IV: Predictive analytics suite

TK-8512: Calibration test kit

L-Series TMR: Triple-redundant safety upgrade

2301D-EG3A: Legacy controller replacement kit

8276-810: Redundant magnetic pickup sensor
