Description

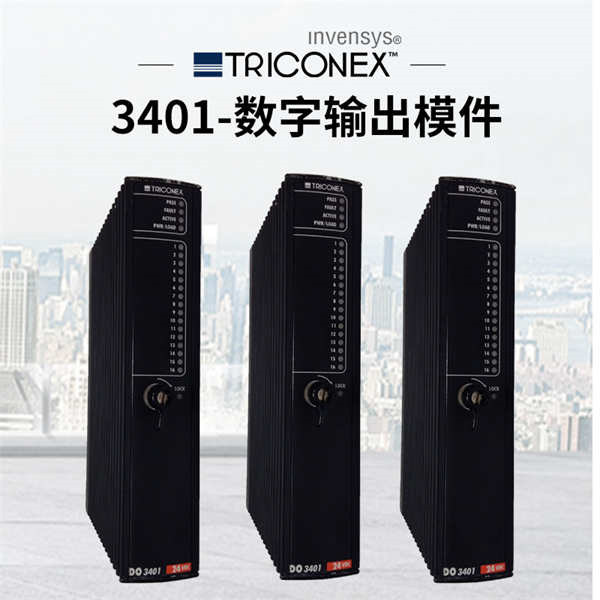

The TRICONEX 3401 is a high-reliability digital output module engineered for safety-critical shutdown systems in the TriStation V9/V11 platform. As a core component of TRICONEX’s (Schneider Electric) Triple Modular Redundant (TMR) architecture, this module executes final element control commands to actuators, solenoid valves, and emergency shutdown devices with SIL 3 certification per IEC 61508. The TRICONEX 3401 features 16 independently isolated output channels organized in 8 TMR groups, where three parallel circuits process each command simultaneously. Output voting logic ensures continuous operation even if one channel fails, preventing single-point failures in critical safety functions. Designed for harsh industrial environments, it supports both high-side (sourcing) and low-side (sinking) switching configurations with built-in diagnostics for load monitoring. The TRICONEX 3401 integrates seamlessly with Tricon processors to achieve sub-50ms response times for rapid safety interventions, making it indispensable for preventing catastrophic incidents in high-risk processes. Its hot-swappable design enables maintenance without process interruption, maximizing operational availability.

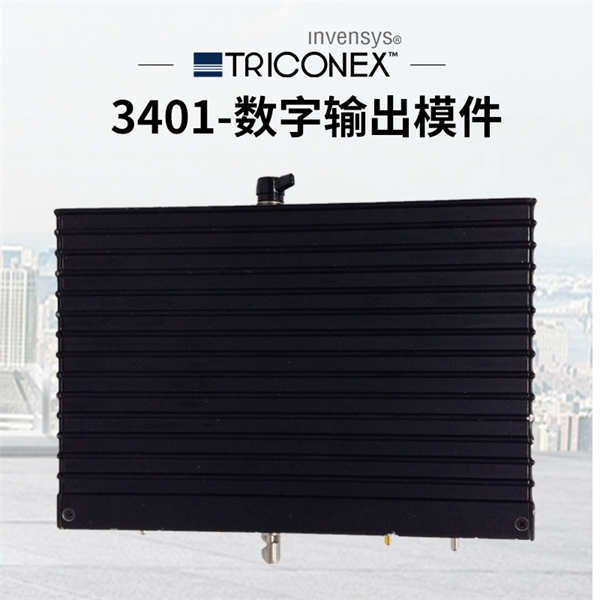

TRICONEX 3401

Technical Specifications

Main Features and Advantages

Fault-Tolerant Output Architecture: The TRICONEX 3401 employs three independent output drivers per channel group. Continuous cross-comparison detects discrepancies within 20ms, automatically masking faulty circuits while maintaining 2-out-of-3 voting integrity. This achieves >99.99% safety availability even during component failures.

Intelligent Load Monitoring: Real-time diagnostics detect open-circuit, short-circuit, and overload conditions before they compromise safety functions. Built-in pulse testing verifies output circuit health without disrupting connected devices – critical for dormant safety systems like emergency depressurization valves.

Flexible Switching Options: Supports both high-side (positive switching) and low-side (negative switching) configurations using field-configurable jumper blocks. This accommodates legacy panel designs during system migrations without external converters.

Environmental Resilience: With -40°C cold-start capability and conformal-coated PCBs, the TRICONEX 3401 operates reliably in Arctic oilfields or coastal facilities. Its 5g vibration resistance withstands turbine-induced harmonics in power generation applications.

Application Field

The TRICONEX 3401 commands critical safety actions across energy and process industries. In offshore platforms, it controls subsea safety valves (SSSVs) during wellhead pressure excursions, isolating hydrocarbon flow within 100ms. Power plants deploy it for turbine lube oil system protection, shutting down bearings before oil pressure collapse.

Chemical processors rely on the TRICONEX 3401 for reactor quench systems, activating emergency coolant valves during runaway reactions. LNG facilities utilize its -40°C rating for firewater deluge control in cryogenic environments. The module’s short-circuit protection safeguards against solenoid coil failures in mining ventilation systems, maintaining airflow during combustible gas events. For pharmaceutical batch processes, its SIL 3 compliance ensures ASME BPE-compliant shutdown of sterilizing steam valves.

TRICONEX 3401
