The GE 1C200PWR101D is a high-efficiency power supply module designed for the RX3i PACSystems platform, delivering reliable 24V DC power to critical industrial control systems. Engineered for continuous operation in demanding environments, this module converts 100–240V AC input to isolated, regulated 24V DC output with up to 10A current capacity. The 1C200PWR101D features active power factor correction (PFC >0.95), minimizing harmonic distortion and ensuring stable performance even with unstable mains voltage. Its hot-swappable N+1 redundancy support allows parallel installation with a second unit, enabling seamless failover during power disruptions without system downtime. Ideal for PLC racks, remote I/O stations, and safety systems, the GE 1C200PWR101D provides robust overvoltage, overtemperature, and short-circuit protection while meeting global standards for industrial electromagnetic compatibility (EMC).
Integrated into GE’s modular automation architecture, this power supply enables scalable control solutions from machine-level applications to plant-wide distributed systems. The module’s convection cooling design eliminates fan noise and reduces maintenance needs, while its wide operating temperature range (-25°C to +70°C) ensures reliability in harsh settings like foundries or offshore platforms. For engineers building fault-tolerant systems, the GE 1C200PWR101D delivers diagnostic feedback via front-panel LEDs and backplane communication, simplifying health monitoring in integrated PACSystems environments.

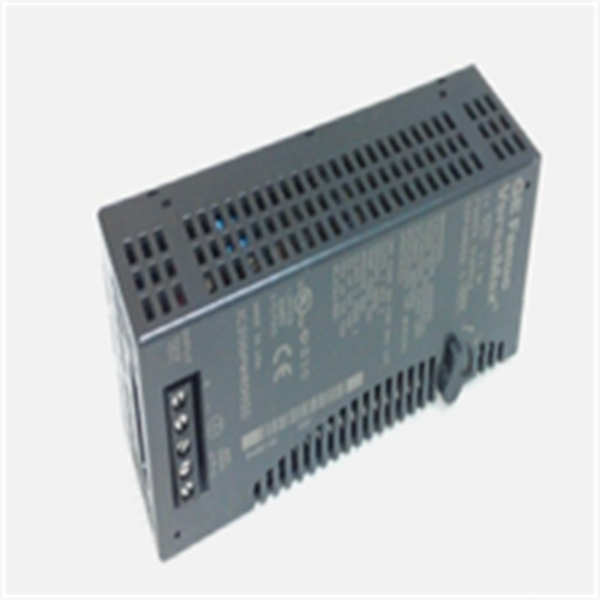

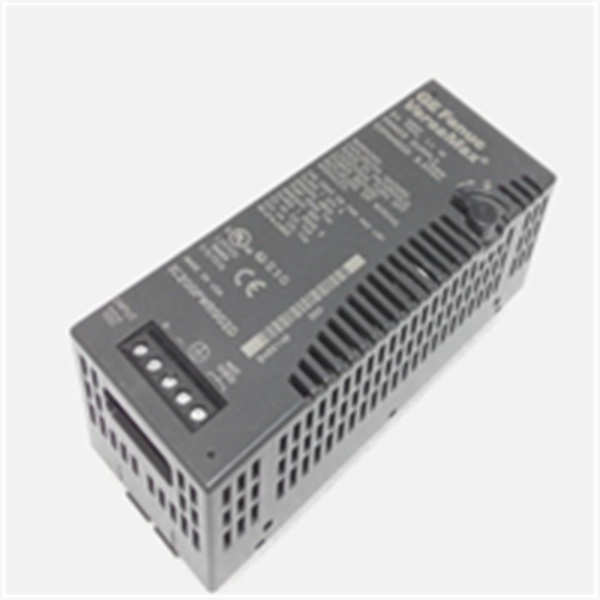

GE 1C200PWR101D
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | 1C200PWR101D |
| Manufacturer | GE (General Electric) |
| Product Type | Power Supply Module |
| Input Voltage Range | 100–240V AC (47–63 Hz) / 120–150V DC |
| Output Voltage | 24V DC (±1%) |
| Output Current | 10A continuous (12A peak for 5s) |
| Power Rating | 240W |
| Efficiency | ≥88% |
| Power Factor Correction | Active PFC (>0.95) |
| Hold-up Time | ≥20ms at full load |
| Protections | OVP, OCP, OTP, Short-Circuit |
| Isolation Voltage | 1500V AC input-to-output |
| Operating Temperature | -25°C to +70°C (-13°F to +158°F) |
| Cooling Method | Convection |
| Certifications | UL 508, CE, cULus, IEC 61131-2 |
| Dimensions | 60 x 128 x 117 mm (2.36 x 5.04 x 4.61 in) |
Main Features and Advantages
Resilient Power Delivery: The GE 1C200PWR101D employs active inrush current limitation and 4kV surge protection, preventing nuisance tripping during voltage sags or lightning strikes. Its wide input range (100–240V AC/DC) accommodates unstable grids in remote locations.
Redundancy Ready: Parallel connection capability allows N+1 configuration with automatic load sharing and fault isolation. If a primary unit fails, the standby 1C200PWR101D assumes full load within milliseconds – critical for safety systems requiring zero power interruption.
Intelligent Diagnostics: Front-panel LEDs indicate input power, output status, and fault conditions (overload/overtemperature). Backplane communication enables remote monitoring via PAC Machine Edition software, providing predictive maintenance alerts.
Environmental Robustness: Operates at full load up to 70°C without derating. The fanless design eliminates moving parts, reducing failure points in dusty environments. Conformal-coated PCB resists humidity and corrosive gases.
Seamless Integration: Plug-and-play compatibility with RX3i Universal Backplane (IC693CHSxxx series). Hot-swappable during system operation with mechanical keying to prevent incorrect insertion.
Application Field
The GE 1C200PWR101D powers mission-critical automation across heavy industries. In power generation, it energizes turbine control cabinets and excitation systems where voltage stability prevents generator trips. Water treatment plants deploy it for SCADA-controlled pump stations and chemical dosing systems requiring 24/7 operation.
Manufacturing lines rely on the 1C200PWR101D for robotic cell controllers and safety PLCs, leveraging its redundancy to maintain production uptime. Oil & gas applications include offshore drilling BOP controls and pipeline compressor stations, where wide-temperature operation ensures functionality in arctic or desert environments. The module also supports transportation infrastructure (rail signaling, tunnel ventilation) and pharmaceutical batch processes demanding clean, regulated power for sensitive instrumentation.
GE 1C200PWR101D
Related Products
GE IC693PWR321: 30W power supply for smaller RX3i racks, compatible with 1C200PWR101D backplanes.
GE IC694PWR331: High-density 60W supply supporting redundant pairing with 1C200PWR101D.
GE IC695CRU320: RX3i CPU module powered by 1C200PWR101D.
GE IC694ALG442: Analog input module requiring stable 24V DC from 1C200PWR101D.
GE IC694ACC300: Redundancy cable kit for N+1 configuration of 1C200PWR101D units.
GE IC693CHS397: 10-slot universal backplane hosting 1C200PWR101D.
GE DS200PCCAG3A: Legacy Mark VI power supply upgradeable to 1C200PWR101D.
GE 1C311PWR101D: 240W supply with DIN-rail mounting alternative.
