Description

The OVATION 1C31157G02 is a Safety-Integrity Level (SIL) 3 certified Vibration Monitoring Module engineered for critical turbomachinery protection in power generation and industrial applications. As part of Emerson’s Ovation® Safety Instrumented System (SIS), this dual-channel module provides real-time analysis of radial/axial vibration, speed, and phase angle with deterministic response times under 20ms. The 1C31157G02 interfaces directly with non-contact eddy-current probes and accelerometers, executing continuous diagnostics for trip avoidance while meeting IEC 61508/61511 and API 670 standards. Its TMR (Triple Modular Redundant) architecture eliminates single points of failure, enabling fail-safe operation in gas turbines, steam turbines, and compressors where mechanical failure could cause catastrophic events. Designed for extreme environments, the module operates at -40°C to +70°C with seismic resilience (IEC 60068-3-3) and EMI immunity, making it indispensable for fossil/nuclear plants and offshore platforms.

Integrated with Ovation’s control platform, the 1C31157G02 supports predictive maintenance through spectral analysis (FFT) and waveform capture. Automatic sensor validation detects probe degradation, cable faults, or gap voltage deviations before false trips occur. For operators requiring compliance with NFPA 85/86 boiler protection codes or ISO 10816 vibration standards, the OVATION 1C31157G02 delivers auditable safety functions – including overspeed protection, eccentricity monitoring, and bearing wear detection – while reducing spurious trips through patented Noise Rejection Technology™.

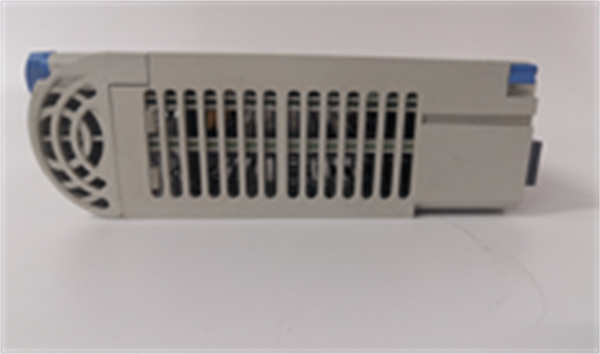

OVATION 1C31157G02

Technical Specifications

Main Features and Advantages

Advanced Fault Detection:

Real-time orbit analysis and phase measurement for imbalance/misalignment detection

Automatic rejection of electromagnetic interference (EMI) up to 50V/m

Sensor Fail Detection (SFD) technology prevents false trips from probe faults

Safety by Design:

Dual independent processing channels with 2oo2 voting

Continuous hardware/software self-checks with >99% diagnostic coverage

Watchdog timer resets system within 15ms on fault detection

Predictive Capabilities:

On-board FFT with 800-line resolution for harmonic analysis

16MB non-volatile storage for event waveform capture

ISO 10816/7919 compliance reporting for maintenance planning

Seamless Integration:

Hot-swappable in Ovation SIS racks (1C311 series chassis)

Drag-and-drop configuration in Ovation Developer StudioNative compatibility with CSI 9420 wireless vibration systems

Application Field

The OVATION 1C31157G02 protects high-value rotating assets in critical infrastructure:

Power Generation: Turbine overspeed protection (steam/gas), boiler feed pump vibration, generator air-gap monitoring

Oil & Gas: Centrifugal compressor surge prevention, pipeline pump bearing failure detection, LNG turbine cold-box monitoring

Nuclear: Reactor coolant pump vibration, diesel generator health monitoring (IEEE 387)

Marine: Propulsion turbine protection, thrust bearing wear detection

Heavy Industry: Rolling mill gearbox monitoring, blast furnace turbo-blower protection

Specifically engineered for API 670-compliant machinery protection systems, the 1C31157G02 serves as the primary safety interface for Bentley Nevada 3300/3500 probes in SIL 3 applications. Its extended temperature range enables deployment in gas turbine enclosures (>60°C ambient) and arctic compressor stations.

OVATION 1C31157G02
