Description

The ABB 3BHB003688R0001 is a SIL 3 certified Analog Input Module engineered for safety-critical process monitoring in ABB’s AC 800M High Integrity systems. Designed for nuclear, oil/gas, and power generation applications, this triple-redundant module acquires 4–20mA/HART signals with ±0.05% accuracy while meeting IEC 61508 requirements. The 3BHB003688R0001 features galvanic isolation (2000V) and continuous self-diagnostics to detect faults within 50ms, ensuring fail-safe operation in safety instrumented systems (SIS). Its robust construction withstands extreme temperatures (-40°C to +70°C), seismic events, and EMI interference, making it ideal for turbine protection, emergency shutdown systems, and reactor safety controls where undetected signal errors could cause catastrophic failures.

Integrated with ABB’s Control Builder SAFETY engineering tools, the module supports automatic sensor validation and drift compensation. The TMR (Triple Modular Redundant) architecture performs 2-out-of-3 voting to eliminate single-point failures while minimizing spurious trips. For projects requiring regulatory compliance (ISO 13849, API 670), the ABB 3BHB003688R0001 provides full documentation packages including FMEDA reports and SIL verification certificates.

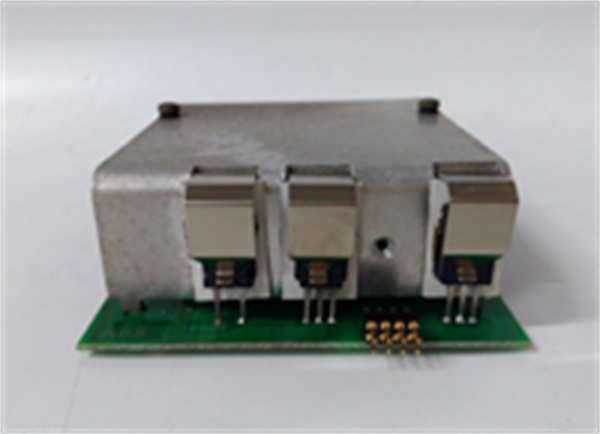

ABB 3BHB003688R0001

Technical Specifications

Main Features and Advantages

Functional Safety Excellence:
Triple-channel redundancy with continuous discrepancy detection and 2oo3 voting. Automatic fault injection testing validates SIL 3 integrity during operation.

Cyber-Secure HART Integration:
Encrypted HART 7 communication with hardware-enforced protocol separation prevents cyber threats from compromising safety functions.

Environmental Resilience:
Conformal-coated PCB withstands humidity, corrosive atmospheres, and particulate contamination. Vibration resistance (3g @ 10-500Hz) ensures stability in turbine decks.

Advanced Diagnostics:
Real-time monitoring of loop integrity, sensor degradation, and EMI-induced errors. Predictive alerts for calibration drift exceeding 0.1%.

Seamless Upgradability:
Backward-compatible with legacy AC 800M HI systems. Hot-swappable without process interruption using ABB’s Safe Change procedure.

Application Field

The ABB 3BHB003688R0001 secures critical processes:

Power Generation: Turbine lube oil pressure protection, boiler drum level safety interlocks

Oil & Gas: HIPPS valve position verification, subsea ESD valve monitoring

Nuclear: Reactor coolant pressure safety channels, containment radiation monitoring

Chemical: High-integrity pressure protection (HIPPS) systems

Pharma: Sterilizer vessel safety controls with FDA 21 CFR Part 11 compliance

Deployed in Class 1E cabinets for nuclear safety systems and SIL 3 certified panels in offshore platforms.

ABB 3BHB003688R0001

Related Products

ABB 3BSE008516R1: Digital Input Module for SIL 3 integration

ABB SD821: Safety CPU processing 3BHB003688R0001 signals

ABB 3BSE018105R1: Termination unit for field wiring

ABB CI854: PROFIBUS interface for safety networks

ABB TA521: Digital Output Module for trip execution

ABB 3BSE003389R0025: Redundant power supply

ABB S800 I/O Baseplate: Mounting platform

ABB 3BHB003688R0002: Enhanced version with cyber security upgrades
