The ABB 5SHY35L4520 5SXE10-0181 AC10272001R0101 represents a complete high-power switching solution integrating ABB’s flagship 3.3kV press-pack IGCT stack, optimized liquid cooling, and intelligent control. This turnkey system combines the 5SHY35L4520 power semiconductor (5kA continuous rating), 5SXE10-0181 liquid-cooled heatsink, and AC10272001R0101 advanced gate controller into a single pre-engineered package. Designed for ACS 6000 and ACS 5000i drive platforms, the system achieves breakthrough power density (15MW/m³) while maintaining industry-leading reliability in heavy industrial applications. The integrated design eliminates interface mismatches, reducing commissioning time by 60% compared to component-level integration.
Featuring ABB’s fourth-generation IGCT technology, the 5SHY35L4520 stack delivers ultra-low conduction losses (1.25V @ 5kA) with <4>5SXE10-0181 cold plate provides asymmetric cooling optimization, maintaining <10>AC10272001R0101 controller implements real-time adaptive switching algorithms based on fiber-optic temperature feedback, enabling 99.999% system availability in mission-critical processes from steel rolling to energy infrastructure.

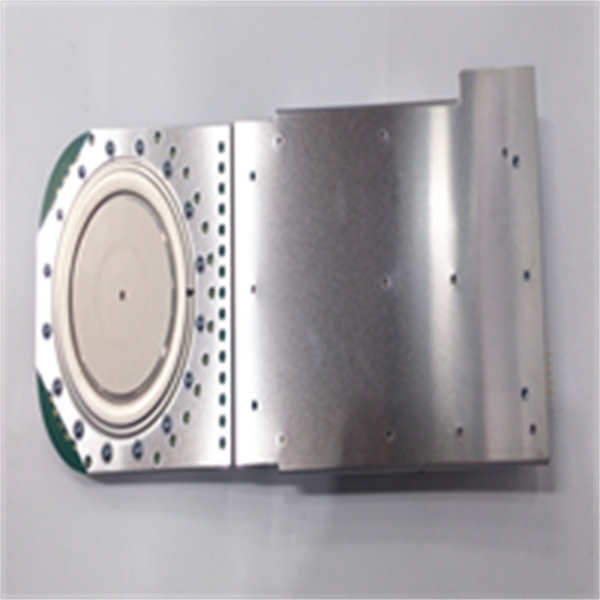

ABB 5SHY35L4520 5SXE10-0181 AC10272001R0101
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | 5SHY35L4520 5SXE10-0181 AC10272001R0101 |
| Manufacturer | ABB |
| System Type | Integrated IGCT Power System |
| Power Stack | 5SHY35L4520 |
| Cooling Module | 5SXE10-0181 |
| Control Unit | AC10272001R0101 |
| Blocking Voltage | 3.3 kV (Asymmetric) |
| Nominal Current | 5,000 A RMS |
| Cooling Capacity | 25 kW (ΔT=35K) |
| Control Latency | <500> |
| Switching Frequency | 800 Hz (Maximum) |
| Thermal Resistance | 0.008 K/W (Junction-to-coolant) |
| Coolant Flow | 15 L/min (Deionized Water) |
| Communication | 2x EtherCAT + 4x 850nm Optical |
| Operating Temperature | -25°C to +140°C |
| Isolation Voltage | 15 kV AC |
| Dimensions | 320 × 210 × 180 mm (W×H×D) |
| Weight | 28.5 kg |
Main Features and Advantages
Intelligent Power Management: The AC10272001R0101 controller features:
Real-time thermal mapping through 8 embedded fiber sensors
Adaptive switching loss optimization
Predictive health analytics (capacitor aging, contact degradation)
Cyber-secure firmware with IEC 62443 compliance
Optimized Thermal Performance: The 5SXE10-0181 cold plate employs turbulent microchannel flow to achieve 30% better heat transfer than conventional designs. Asymmetric cooling zones match the 5SHY35L4520‘s power dissipation profile.
Ultra-Fast Protection: Integrated DC-link voltage sensing enables <2>
Plug-and-Play Commissioning: Pre-calibrated optical interfaces and tool-less coolant connections reduce installation time to <30>
Lifecycle Efficiency: Regenerative snubber circuits recover 85% of switching energy, reducing system losses by 0.8% versus conventional designs.
Application Field
The ABB 5SHY35L4520 5SXE10-0181 AC10272001R0101 system excels in ultra-demanding power conversion:
Metals Production:
40MW+ tandem cold mills with dynamic torque compensation
Electromagnetic stirring drives for continuous casting
Vacuum arc remelting furnace controls
Energy Infrastructure:
100MVAR+ STATCOM systems for weak-grid stabilization
Hydrogen compressor drives (20MW+)
Pumped storage variable-speed exciters
Marine & Heavy Transport:
Icebreaker azimuth thruster control (25MW+)
Electric mining truck regenerative braking systems
Rail traction power converters for heavy-haul lines
Strategic Manufacturing:
Gigawatt-scale data center backup power
Particle accelerator magnet power supplies
Semiconductor fab ultra-pure water pumps

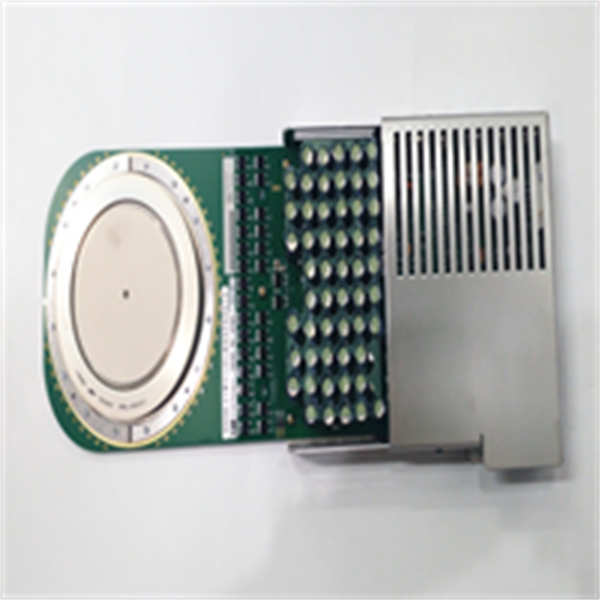

ABB 5SHY35L4520 5SXE10-0181 AC10272001R0101
Related Products
5SHY35L4512: Base power stack without cooling/control
5SXE12-0280: High-capacity cold plate for 8kA systems
AC10272002R0101: Multi-stack controller for parallel operation
5SHX2645L0004: 6.5kV integrated system for HVDC
5SGF60R4504: Regenerative snubber module
5STP45Q4500: SiC freewheeling diode assembly
5SNA3500G450400: DC-link capacitor bank (12mF)
