The ABB 5SHY3545L0009 3BHB013085R0001 represents the pinnacle of ABB’s medium-voltage power conversion technology, combining a fourth-generation 4.5kV press-pack IGCT stack with an intelligent master controller for ultra-high-performance industrial drives. This integrated solution delivers 4,200A continuous current capacity with industry-leading 90kA surge withstand capability, engineered specifically for ABB’s ACS 6080 multi-drive platforms. The 5SHY3545L0009 stack incorporates silicon-carbide hybrid clamping technology and copper-diamond composite electrodes, achieving 22% lower switching losses than previous generations while supporting junction temperatures up to 155°C.
The integrated 3BHB013085R0001 controller revolutionizes power management through real-time adaptive switching algorithms that optimize efficiency across load ranges. Fiber-optic embedded sensors provide ±1°C junction temperature accuracy, while quad-redundant control channels ensure fault-tolerant operation in critical infrastructure. This system enables direct 4.16kV AC conversion with THD<1>

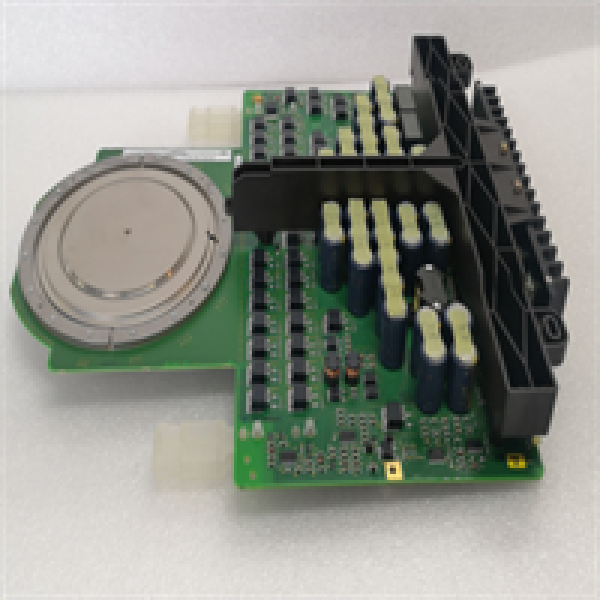

ABB 5SHY3545L0009 3BHB013085R0001
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | 5SHY3545L0009 3BHB013085R0001 |
| Manufacturer | ABB |
| System Type | Integrated IGCT Power System |
| Blocking Voltage | 4.5 kV (Asymmetric) |
| Nominal Current | 4,200 A RMS |
| Surge Current | 90 kA (0.8 ms) |
| Switching Frequency | 1 kHz (Maximum) |
| Turn-off Losses | <1> |
| Control Latency | <400> |
| Isolation Voltage | 18 kV AC (1 min) |
| Cooling Requirement | Phase-change: 28 kW dissipation |
| Operating Temperature | -40°C to +155°C |
| Communication | 4x 850nm fiber + PROFINET IRT |
| MTBF | >600,000 hours |
| Dimensions | 240 × 170 × 75 mm (W×H×D) |
| Weight | 16.8 kg |
Main Features and Advantages
Hybrid SiC/Si Technology: Silicon-carbide clamping diodes reduce reverse recovery losses by 40% while silicon IGCTs maintain cost efficiency. Active voltage balancing maintains <1>
Cyber-Physical Control: The 3BHB013085R0001 controller features:
Real-time digital twin synchronization
AI-driven switching loss optimization
IEC 62443-4-2 certified security
Predictive failure analytics (capacitor aging, thermal interface degradation)
Extreme Environment Design: Certified for IEC 60068-2-14 (thermal shock) and DNV-GL marine standards (salt fog, vibration). Halogen-free materials exceed RoHS 3 requirements.
Rapid Commissioning: Auto-recognition technology configures drive parameters via NFC. Tool-less coolant connections reduce installation time to <20>
Energy Recovery System: Regenerative snubber circuits capture 92% of switching energy, reducing total system losses by 1.2% versus conventional designs.
Application Field
The ABB 5SHY3545L0009 3BHB013085R0001 powers next-generation industrial infrastructure:
Metals & Mining:
45MW+ aluminum rolling mill tandem drives
Submerged arc furnace electrode controls
5,000t hydraulic forging presses
Energy Transition:
25MW hydrogen liquefaction compressors
Carbon capture solvent regeneration systems
Molten salt thermal storage power blocks
Grid Modernization:
200MVAR STATCOM systems for weak grids
Virtual synchronous machines for renewable integration
Black start systems with 300ms response
Strategic Infrastructure:
Hyperscale data center direct-liquid-cooled power
Particle accelerator magnet supplies (ITER-grade)
Nuclear fusion test facility power converters
ABB 5SHY3545L0009 3BHB013085R0001
Related Products
5SHY3545L0007: Previous-gen 4.5kV/4.0kA stack
5SXE22-0550: High-capacity phase-change cooler (35kW)
3BHE039331R0001: Multi-cluster synchronization controller
5SHY55L4520: 5.5kV/4.5kA stack for higher voltage
5SGF55R4506: 4500V SiC-integrated snubber module
5STP50Q4500: Ultra-fast SiC freewheeling diode
5SNA3800G450500: DC-link capacitor bank (15mF)
3BSE030240R1: Cyber-secure signal conditioner
