Description

The WESTINGHOUSE 5X00121G01 is a high-density *16-Channel Analog Output Module* designed for the WDPF II (Westinghouse Distributed Processing Family) distributed control system. This critical I/O component translates control signals from processors (like the 5X00109G02) into precise 4–20mA or 0–10V DC outputs to actuate valves, dampers, VFDs, and other field devices in power plants and industrial processes. Engineered for mission-critical reliability, the 5X00121G01 provides galvanic isolation between channels to prevent ground loops and signal cross-talk. As part of Westinghouse’s legacy DCS infrastructure (now supported by Emerson), this module enabled deterministic control of analog loops with 0.1% accuracy – a benchmark for 1990s-era process automation.

Operating within WDPF II racks, the WESTINGHOUSE 5X00121G01 features automatic load sharing and short-circuit protection per channel. Its fault-tolerant design supported hot-swapping during online operations, minimizing downtime in continuous processes like boiler control and turbine sequencing. The module communicated with control processors via high-speed backplane while executing local diagnostics for open-wire detection and output validation. Radiation-hardened variants (5X00121G01-N) served nuclear balance-of-plant systems, meeting IEEE 323 qualifications.

Technical Specifications

Main Features and Advantages

The WESTINGHOUSE 5X00121G01 delivers exceptional signal integrity through transformer-based channel isolation, eliminating ground loops in electrically noisy environments like turbine halls. Each output incorporates HART® protocol passthrough capability, enabling smart device configuration without disconnecting wires. The module’s dual-range hardware (software-selectable per channel) reduced spare part inventories by replacing dedicated 4–20mA and 0–10V modules.

Advanced diagnostics: Real-time monitoring detects open circuits before process disruptions occur, while thermal shutdown protects against sustained shorts. The 5X00121G01’s hot-swap design allowed field replacement without rack shutdown when redundant processors were active. For nuclear applications, the -N variant utilized ceramic capacitors and radiation-tolerant op-amps capable of surviving 10⁶ rads total dose. Backplane surge protection met IEEE 472 (C62.41) standards – critical for plants near lightning-prone areas.

Application Field

The WESTINGHOUSE 5X00121G01 dominated analog actuation in fossil-fuel power plants, controlling feedwater valves, SO₂ scrubber dampers, and combustion air systems across 300–800MW units. In combined-cycle facilities, it modulated gas turbine inlet guide vanes and HRSG bypass valves with millisecond precision. Nuclear stations deployed radiation-hardened variants for non-safety functions like condenser level control and auxiliary cooling loops.

Industrial applications included:

Petrochemical plants: Regulating reactor feed flows and distillation column pressures

Pulp/paper mills: Controlling stock consistency valves and lime kiln temperatures

Water treatment: Dosing chemical pumps via 4–20mA speed references

Metals processing: Positioning furnace damper actuators via 0–10V signals
The module’s high channel density proved ideal for compressor station suction/ discharge valve arrays in pipeline operations.

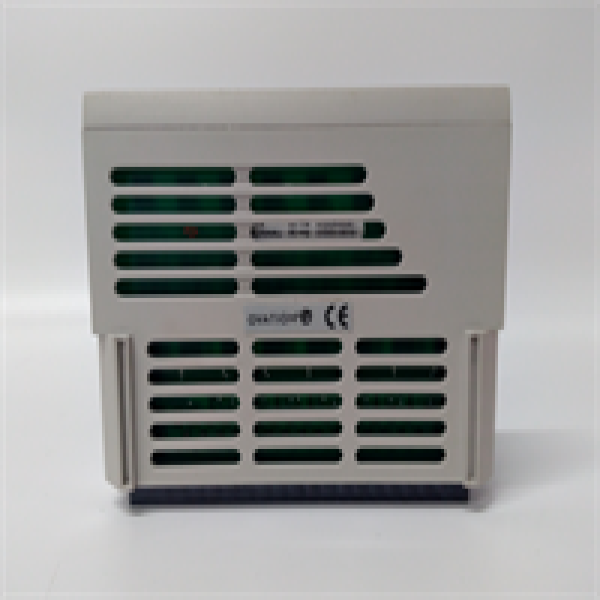

5X00121G01 WESTINGHOUSE
