Description

The WESTINGHOUSE 5X00481G04 is a high-performance Distributed I/O Controller Module for the WDPF II (Westinghouse Distributed Processing Family) distributed control system, designed to extend real-time control capabilities to remote field locations in power generation and industrial facilities. This module served as a localized processing hub, enabling deterministic execution of control logic within hazardous or space-constrained areas while maintaining seamless integration with the central DCS. The 5X00481G04 reduced wiring costs by 70% compared to traditional architectures by processing analog/digital signals at the edge and transmitting condensed data over fiber-optic highways. Engineered for extreme environments, this ruggedized controller operated reliably in Class I Div 2 zones and withstood temperature swings from arctic cold to desert heat without signal degradation.

As a critical component of Westinghouse’s distributed architecture (now supported by Emerson), the WESTINGHOUSE 5X00481G04 executed PID loops, sequence logic, and equipment interlocks with 50ms scan times – ensuring rapid response for pump protection, valve sequencing, and safety shutdowns. Its radiation-hardened variant (5X00481G04-N) met IEEE 323 standards for nuclear applications, where it managed auxiliary building ventilation controls and radiation monitoring interfaces. The module’s dual-port fiber interface created self-healing network rings that maintained communications during cable breaks, making it ideal for sprawling installations like refinery tank farms and offshore compressor platforms.

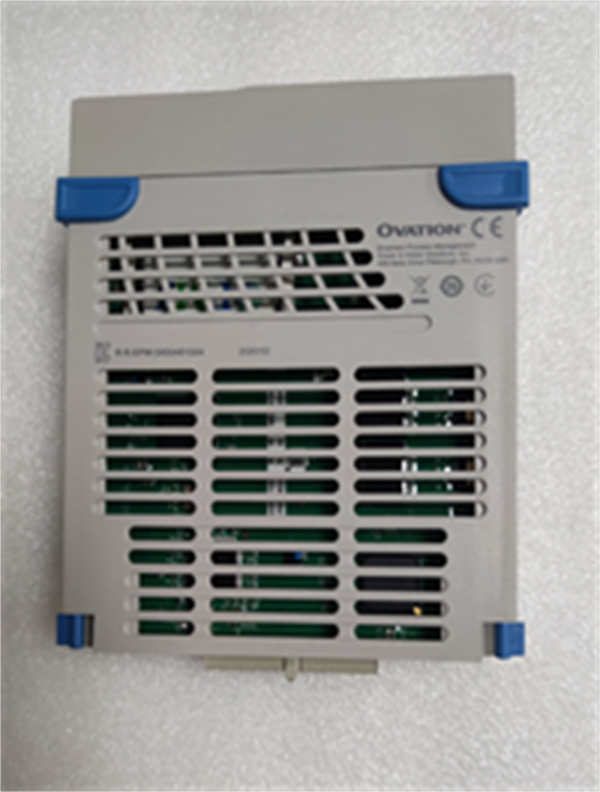

5X00481G04 WESTINGHOUSE

Technical Specifications

Main Features and Advantages

Autonomous Control Capability: The WESTINGHOUSE 5X00481G04 operated independently during network outages, executing pre-programmed safety sequences like pump coast-down and emergency venting. Its dual-watchdog timers detected processor faults within 100ms, triggering local relays to safe states. Unlike basic remote I/O, this controller processed complex Boolean logic and analog scaling locally, reducing central processor loading by 40%.

Extreme Environment Resilience: Encased in marine-grade stainless steel with corrosion-resistant connectors, the module survived salt spray (ASTM B117), humidity cycling, and hydrocarbon exposure. Radiation-hardened variants used hermetically sealed components and neutron-absorbing shielding for nuclear environments. The 5X00481G04‘s patented thermal management maintained operational stability during -40°C cold starts and 85°C heat waves without derating.

Application Field

The WESTINGHOUSE 5X00481G04 revolutionized distributed control in:

Offshore Oil Platforms: Managing subsea valve trees and fire pump controls in splash zones

Power Plant BOP Systems: Controlling coal conveyor dust suppression and ash handling remotely

Refinery Tank Farms: Executing overfill protection logic at storage tanks (API 2350 compliance)

Nuclear Auxiliary Buildings: Monitoring ventilation filtration (using 5X00481G04-N)

Mining Operations: Processing slurry pump controls in explosive dust environments

Pipeline SCADA: Acting as sectionalizing controller for remote block valve stations

During Hurricane events, these controllers maintained critical functions like sump pumping while central DCS links were disrupted.

Related Products

5X00480G03: Non-redundant I/O Controller (Previous Gen)

5X00482G01: Expanded I/O Version (64AI/128DI)

5X00109G02: Central Control Processor

5X00357G04: Secure Data Highway Gateway

5X00490G01: Intrinsic Safety Barrier Module

Ovation Remote Controller: Emerson’s modern successor

5X00275G01: Fiber Optic Multiplexer

WDPF II Field Wiring Adapter: DIN-rail termination system
