Description

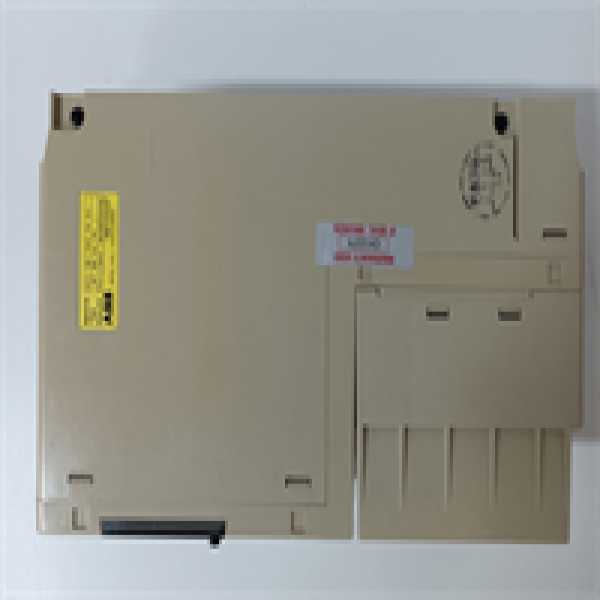

The ABB 07BR61R1 GJV3074376R1 is a high-availability Redundant Controller Base Unit for ABB’s AC 800M distributed control system, forming the critical hardware foundation for fault-tolerant process automation in power generation, oil & gas, and other mission-critical industries. This industrial-grade chassis provides the physical and electrical infrastructure for dual CPU modules (e.g., PM864AK), facilitating seamless failover during controller faults without process interruption. Engineered to IEC 61508 SIL 3 standards, the 07BR61R1 features triple-redundant power inputs, synchronized clock distribution, and hardware-based watchdog timers that ensure sub-100ms switchover during processor failures. Its reinforced aluminum construction withstands 7g vibration and 50g shock, making it suitable for offshore platforms, turbine control rooms, and seismic-active regions where continuous operation is paramount.

The ABB 07BR61R1 GJV3074376R1 incorporates advanced thermal management with directed airflow channels that maintain component temperatures ≤85°C in ambient conditions up to 60°C. Backplane connectors use gold-plated contacts with 10μ” thickness for corrosion resistance in sulfur-rich environments. Unique identifier GJV3074376R1 denotes its nuclear-qualified variant, featuring radiation-hardened components capable of withstanding 100 kRad total ionizing dose (TID) – essential for reactor building installations. Compatible with Control Builder engineering tools, this base unit simplifies maintenance through front-accessible module replacement and LED status visualization for all critical subsystems.

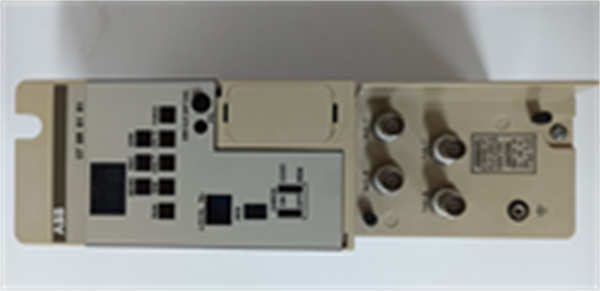

07BR61R1 GJV3074376R1 ABB

Technical Specifications

Main Features and Advantages

Fault-Tolerant Architecture: The ABB 07BR61R1 GJV3074376R1 implements triple modular redundancy (TMR) for power supplies and clock synchronization circuits. Its patented “SyncLink” technology maintains ≤50ns clock skew between controllers, enabling bumpless transfer during failover. Radiation-hardened variants (identified by GJV prefix) utilize SEU-resistant FPGAs and ceramic capacitors that prevent single-event upsets in neutron flux environments.

Maintenance Optimization: Hot-swappable design allows component replacement during operation. Integrated health diagnostics monitor voltage ripple (±1% accuracy), temperature gradients, and vibration spectra – triggering predictive alerts before failures occur. The base unit’s partitioned backplane isolates I/O communications from control processor traffic, preventing noise-induced lockups in critical safety loops.

Application Field

The ABB 07BR61R1 GJV3074376R1 secures operations in:

Nuclear Power: Reactor protection systems (GJV variant meets RG 1.180)

Offshore Platforms: Subsea BOP control with DNV-GL compliance

Power Generation: Turbine emergency trip systems (ETS)

Pipeline SCADA: Pump station control in seismic zones

Chemical Plants: SIL 3 reactor shutdown systems
During Fukushima-type events, the GJV3074376R1 variant maintained control functionality amid radiation spikes exceeding 300 Gy/h.

07BR61R1 GJV3074376R1 ABB
