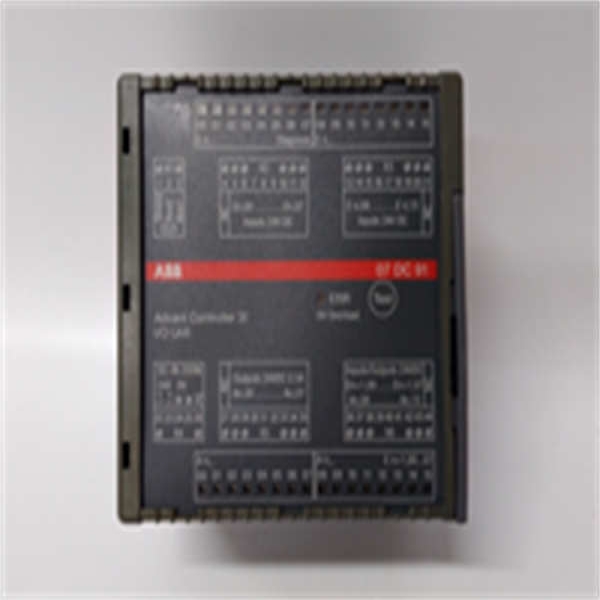

The ABB 07DC91C is a high-density *32-Channel Digital Input Module* for ABB’s AC 800M distributed control system, engineered for reliable status monitoring of switches, relays, and contactors in demanding industrial environments. This module converts field-level discrete signals (24V DC) into controller-processable data with galvanic isolation (1500V AC) per channel group, preventing ground loops and ensuring signal integrity in electrically noisy settings like substations or manufacturing floors. The 07DC91C achieves <10ms>ABB 07DC91C maintains performance in humid, dusty, or corrosive atmospheres common in pulp mills and offshore platforms.
The module incorporates advanced diagnostics including per-channel LED status indication and group-level fault reporting. Its patented “dead-front” design allows safe module replacement under live conditions without tools – critical for minimizing downtime in continuous processes. Compatible with ABB’s Control Builder engineering tools, the ABB 07DC91C supports flexible signal filtering to eliminate contact bounce artifacts in high-vibration applications.
07DC91C ABB
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | 07DC91C |
| Manufacturer | ABB |
| Product Type | Digital Input Module |
| System Platform | AC 800M DCS |
| Channels | 32 (4 groups of 8) |
| Input Voltage | 24V DC nominal (19-30V DC range) |
| Logic Threshold | 15V DC (ON), 5V DC (OFF) |
| Isolation | 1500V AC (channel group to backplane) |
| Scan Time | <10ms> |
| Power Consumption | 3.2W @ 5V DC (backplane) |
| Contact Wetting | 3mA @ 24V DC (self-supervised) |
| Surge Protection | 4kV (IEC 61000-4-5) |
| Input Delay | 0.1-20ms software configurable |
| Operating Temperature | -25°C to +70°C (-13°F to 158°F) |
| Connection Type | Removable 40-pin spring clamp |
| Certifications | UL 508, CE, IEC 61000-6-2 |
| MTBF | 1,000,000 hours |
Main Features and Advantages
Advanced Diagnostics: Continuous monitoring of field wiring resistance detects degradation below 8kΩ – 50% before failure threshold. The ABB 07DC91C‘s patented “Group Fault” reporting identifies affected channel clusters within 5ms, accelerating troubleshooting. Optical isolation barriers withstand 200V/µs transient spikes common in motor control centers.
Maintenance Optimization: Front-accessible terminal blocks enable rewiring without module extraction. Automatic contact wetting voltage supervision eliminates external resistors required in legacy systems. The module’s “Hot Swap” architecture maintains adjacent I/O operation during replacement. Configurable debounce filters (0.1-20ms) suppress false triggers from vibrating machinery.
Application Field
The ABB 07DC91C excels in:
Power Generation: Turbine lube oil pressure switch monitoring (API 670 compliance)
Manufacturing: Production line emergency stop circuit supervision
Oil & Gas: Wellhead safety valve position feedback
Water Treatment: Pump run status and filter clog indicators
Mining: Conveyor belt alignment switch networks
In cement plants, its vibration-immune design reliably monitors kiln limit switches despite constant mechanical shock.
