Description

The B&R 7DI140.70 is a high-speed, 16-channel digital input module engineered for demanding signal acquisition in real-time automation systems. As part of B&R Automation’s (ABB Group) modular X20 System, this module excels in capturing fast-switching discrete signals from sensors, encoders, and switches with microsecond precision. Designed for applications requiring rapid event detection, the 7DI140.70 supports input frequencies up to 100 kHz per channel – ideal for position tracking, speed monitoring, or pulse counting in high-velocity processes. Featuring 24 V DC sinking/sourcing compatibility and robust channel-to-channel isolation (500 V AC), it ensures reliable operation in electrically noisy environments like motor control centers or robotic workcells.

Leveraging B&R’s deterministic X2X Link technology, the module achieves synchronized sampling with ≤1 µs jitter across all 16 channels, enabling precise time-stamping for quality control or motion synchronization. Its dual operating modes (standard input or latching/counter mode) provide flexibility for diverse applications, while integrated diagnostics monitor wire breaks, short circuits, and signal integrity. The B&R 7DI140.70 operates flawlessly across an industrial temperature range (-40°C to +60°C) and withstands severe vibration (5g, 10–150 Hz), making it a cornerstone for resilient, high-performance I/O architectures in Industry 4.0 deployments.

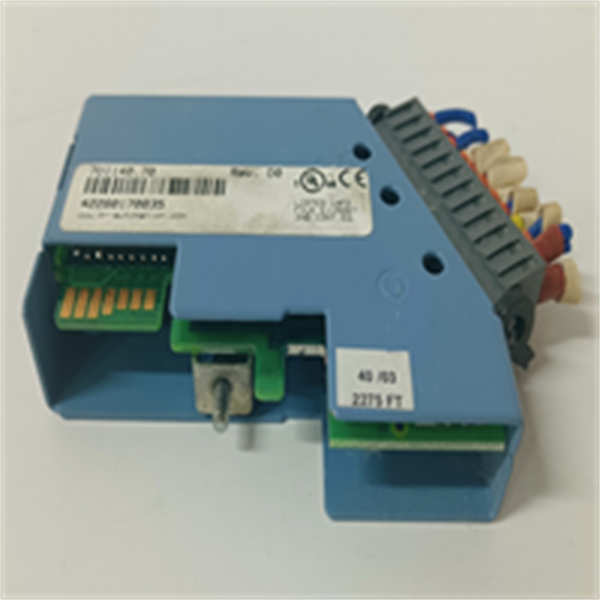

7DI140.70 B&R

Technical Specifications

Main Features and Advantages

Ultra-Fast Signal Capture: The B&R 7DI140.70 redefines digital input performance with 100 kHz sampling per channel – 100× faster than standard PLC modules. This enables precise monitoring of incremental encoders, Hall effect sensors, or laser triggers in high-speed packaging, printing, and semiconductor handling. Configurable digital filters suppress contact bounce and EMI noise without compromising response speed.

Advanced Diagnostics & Flexibility: Each channel independently operates as a standard DI, latching input, or 32-bit counter. Latching mode captures transient events as short as 5 µs (e.g., photoelectric sensor peaks), while counter mode tracks pulses up to 4.3 billion counts. Integrated diagnostics detect open circuits, short-to-ground, and overload conditions, streaming real-time health data to B&R’s Automation Studio.

Industrial Resilience: Engineered for harsh environments, the module features reinforced connectors, shock resistance (50g/11ms), and conformal coating options. Hot-swap capability allows maintenance without system shutdown when used with B&R’s X20 bus controllers. The compact 25 mm width saves panel space, while front-accessible terminals simplify wiring. Combined with plug-and-play configuration in Automation Studio, the 7DI140.70 reduces integration time by 30% versus discrete counter modules.

Application Field

The B&R 7DI140.70 is indispensable in industries requiring microsecond-accurate event capture and high-frequency counting. In automotive manufacturing, it monitors robotic weld gun position sensors at 50+ points simultaneously, ensuring submillisecond synchronization for spot welding precision. Packaging machinery leverages its 100 kHz capability to track encoder signals from servo-driven fillers and cappers, guaranteeing exact container positioning at 600 bottles/minute.

Renewable energy applications include wind turbine pitch control systems, where the module counts pulses from rotor position encoders to detect blade anomalies. In pharmaceutical bottling lines, it validates cap presence and torque values via high-speed torque sensors. The B&R 7DI140.70 also enables quality assurance in metal stamping – capturing press force peaks via strain gauge triggers – and synchronizes servo cutters in textile machinery using registration mark signals. Its noise immunity suits steel mills for roller conveyor speed monitoring amidst heavy EMI.

Related Products

B&R 7DO140.70: High-speed 16-channel digital output module for synchronizing actuators with 7DI140.70 inputs.

B&R 7DI477.2: Standard 32-channel digital input module (24 V DC) for basic status monitoring.

B&R X20BC0083: X20 Bus Controller managing deterministic communication.

B&R 7AC1131.6: Dedicated counter module (200 kHz) for ultra-high-speed encoder applications.

B&R 7AI261.7: 16-channel analog input module for complementary process signal acquisition.

B&R 8AC120.6: Buffered power supply ensuring stable operation during voltage dips.

B&R 7CN110.00: PROFINET IRT interface for network integration.

B&R X20PS9400: System power supply for backplane voltage regulation.
