The Schneider Electric 140CPU67060 is a high-performance Quantum safety processor engineered for SIL 3 (IEC 61508) and PL e (ISO 13849-1) compliant control systems. As the central nervous system of Schneider’s Modicon Quantum platform, this processor delivers deterministic execution for critical safety applications with dual-core ARM Cortex-A9 architecture operating at 800 MHz. The 140CPU67060 integrates 4MB of safety-rated application memory and implements Schneider’s patented Failsafe Over Network (FSoE) protocol for <15ms>Schneider Electric 140CPU67060 operates in -40°C to +70°C environments with 95% humidity tolerance, making it ideal for safeguarding oil & gas, power generation, and chemical processes where functional safety is paramount.

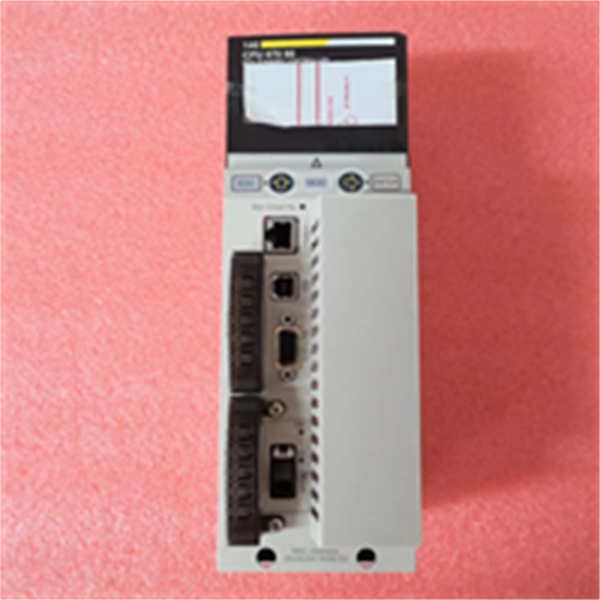

140CPU67060 SCHNEIDER
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | 140CPU67060 |
| Manufacturer | Schneider Electric |
| Product Type | Safety Programmable Logic Controller |
| Processor | Dual-core ARM Cortex-A9 @ 800 MHz |
| Safety Memory | 4 MB (SIL 3 certified) |
| Safety Standard | IEC 61508 SIL 3, ISO 13849-1 PL e |
| Communication Ports | 1x Ethernet, 1x FSoE, 1x USB, 1x Modbus |
| Scan Time | 0.1 ms/K instructions |
| Safety Response Time | <15> |
| Operating Temperature | -40°C to +70°C |
| Power Supply | 24 VDC (19.2–30 V) |
| Power Consumption | 8 W typical |
| Certifications | ATEX Cat 3, UL 1998, CSA 22.2 |
| Vibration Resistance | 5g @ 10–150 Hz |
| Dimensions | 128 x 56 x 117 mm (H x W x D) |
Main Features and Advantages
Certified Safety Architecture: Dual-channel processing with continuous self-testing achieves 99.99% diagnostic coverage. Hardware-based safety logic solver executes independent protection layers (IPLs) for process hazard mitigation.
Deterministic Networking: Integrated FSoE port enables <15ms>
Cybersecurity Fortification: Secure boot with cryptographic signature verification prevents firmware tampering. Role-based access control with Active Directory integration meets IEC 62443 requirements.
Extreme Environment Operation: Conformal-coated PCB withstands corrosive atmospheres. Redundant power inputs with 50ms ride-through ensure continuous operation during grid fluctuations.
Engineering Efficiency: Unity Pro Safety software provides integrated development environment with SIL calculator and pre-certified function blocks. Online modification capability reduces commissioning downtime.
Application Field
The Schneider Electric 140CPU67060 protects critical infrastructure across high-hazard industries. In oil refineries, it implements safety instrumented functions (SIFs) for furnace emergency shutdown systems with SIL 3 certification. Power generation facilities deploy it for turbine overspeed protection and burner management systems.
Chemical plants utilize the 140CPU67060 for reactor pressure relief and toxic gas detection systems. For water treatment, it safeguards chlorine handling facilities with voting logic for leak containment. Mining applications leverage its vibration resistance for conveyor emergency stop systems in processing plants. The module’s FSoE capability enables distributed safety architectures for offshore platform fire & gas systems. Unlike standard PLCs, the Schneider Electric 140CPU67060 maintains safety integrity during simultaneous process control operations.

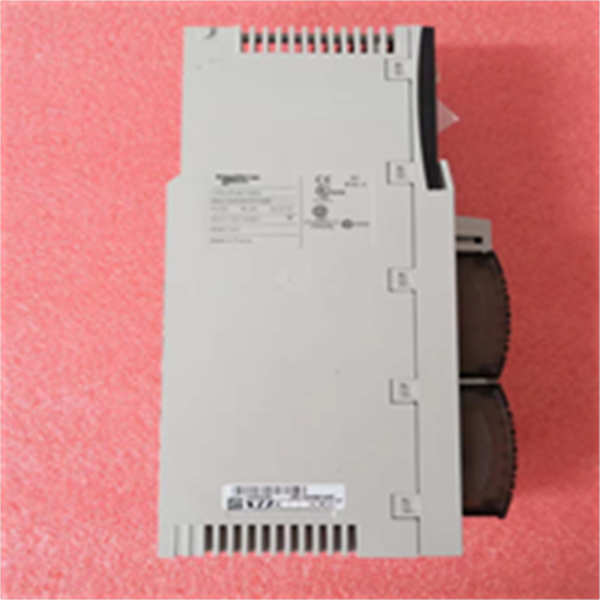

140CPU67060 SCHNEIDER
